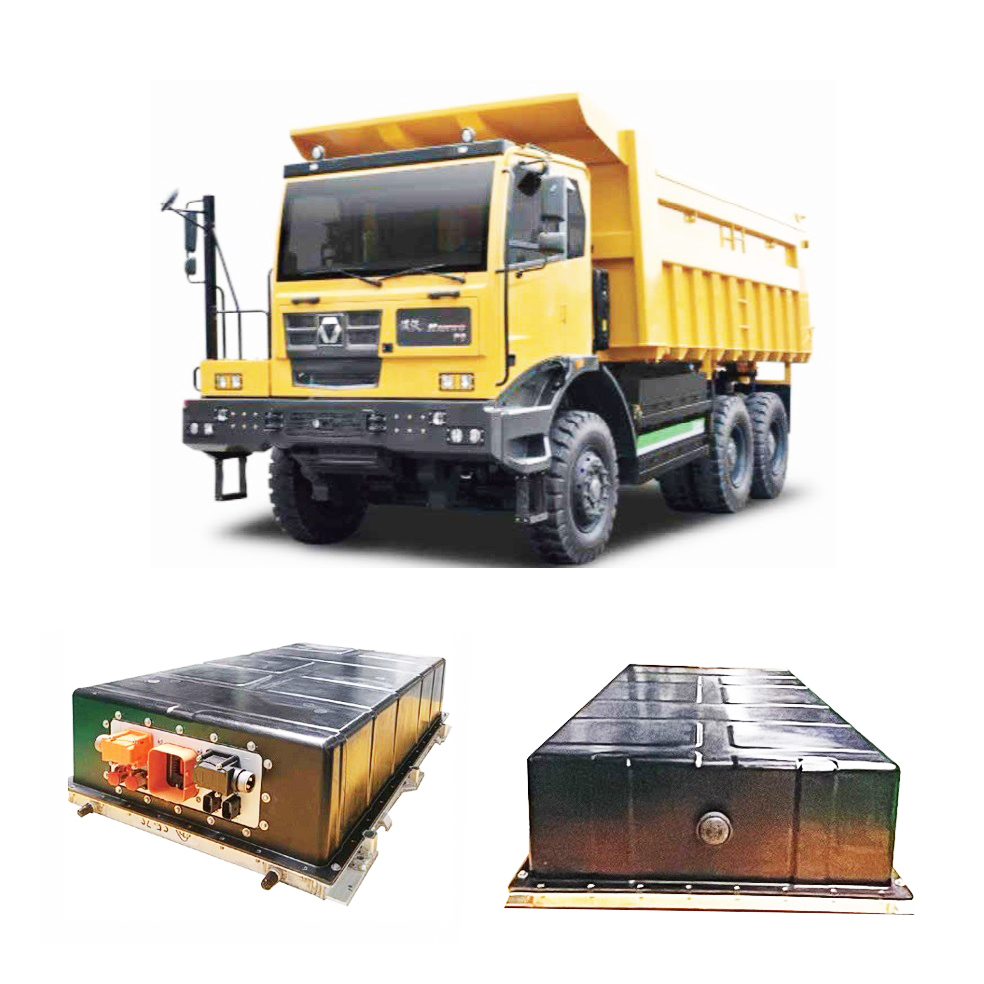

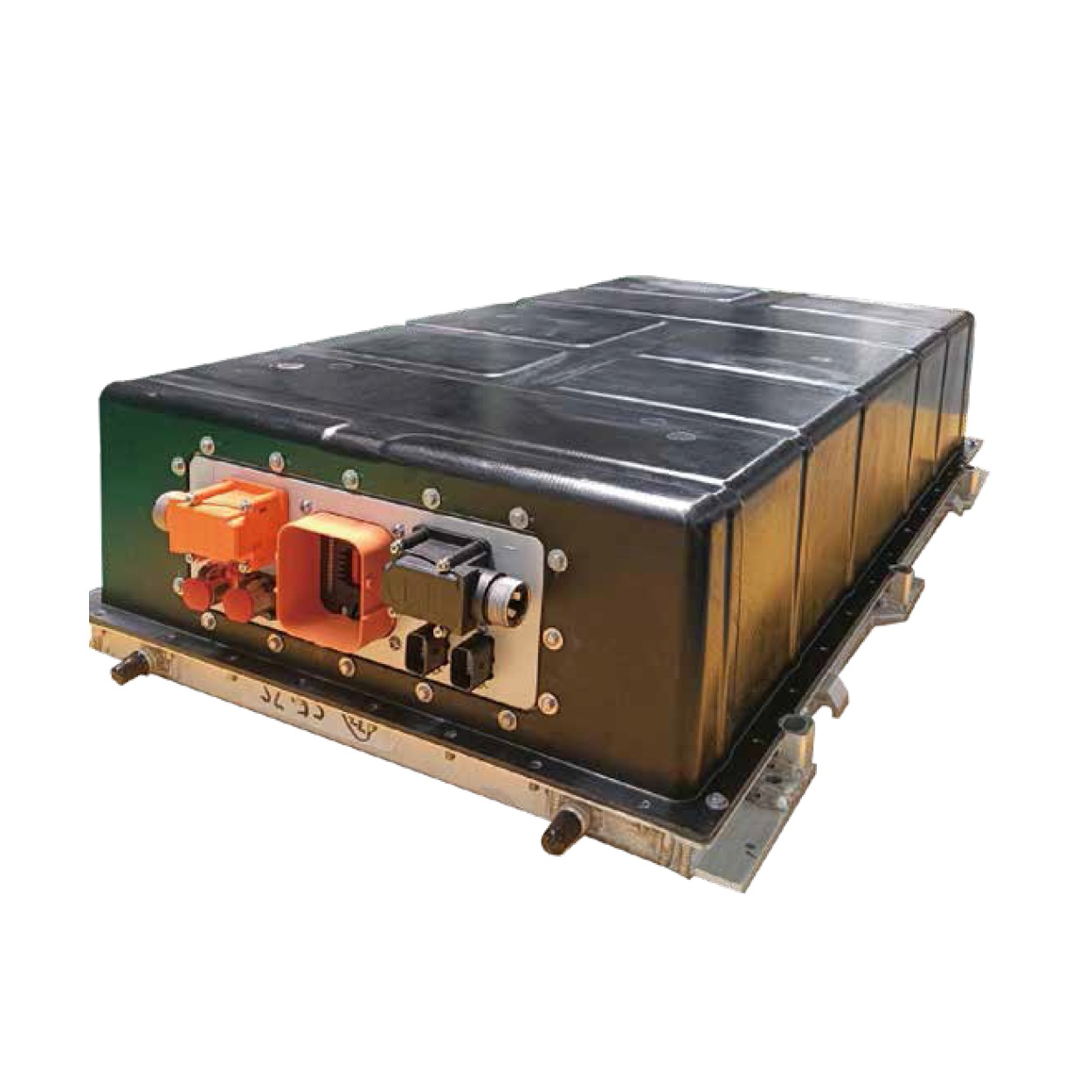

High Voltage Pure Electric Mining Truck Lithium Battery 614.4V 920AH 565.2KWh big power LiFePO4 Battery Heavy Duty Truck
About our Lithium Battery for Heavy Duty Construction Machinery and Vehicle
Currently regular heavy trucks powered by diesel engines have the high carbon emissions, and in order to reach the peak carbon emission and carbon neutrality goals in the nearest future, the supply and demand sides of the heavy truck industry need big changes. Currently our products are used on the hydrogen-powered heavy duty trucks to support this replacement process.
Advantage:
More than 20 years experience in heavy duty equipments and vehicles battery designingand production;
Both Voltage and Capacity can be customized according to your equipment / vehicle;
Will design structure and fixtures according to your real size;
Liquid cooling design, better cooling and longer cycle life;
Heating wire will support battery application under low temperature.
Technical Data:
| No. | Parameter | Data |
| 1 | Model | EMV565-4P |
| 2 | Rated Capacity | 920Ah |
| 3 | Rated Power | 565kWh |
| 4 | Rated Voltage | 614.4V |
| 5 | Working Voltage Range | 480-700.8V |
| 6 | Working Temperature Range | Charge: 0-55℃ |
| Discharge: -20-55℃ | ||
| 7 | Max continuous discharge current | 460A |
| 8 | Peak discharge current | 600A@6 |
| 9 | Max continuous charge current | 230A |
| 10 | Thermal management power | 10kW |
| 11 | Thermal management method | Liquid Cooling + PTC Heating |
| 12 | Thermal management efficiency | ≥70%@1C Charge |
| 13 | IP Grade | IP67 |
| 14 | Battery Pack Size | 1060x630x240mm x 10pcs |
Main Application: Pure Electric Mining Truck, etc.
Remark:
1. Battery Cells and discharge current can be customized
2. Battery dimension can be customized
3. Lithium battery is widely used as replacement battery for lead acid battery
Other function optional:
1. Bluetooth function
2. Communication function: RS485, RS232, Canbus (Optional)
3. Self heat function
If you need other voltage and capacity battery, please feel free to contact us

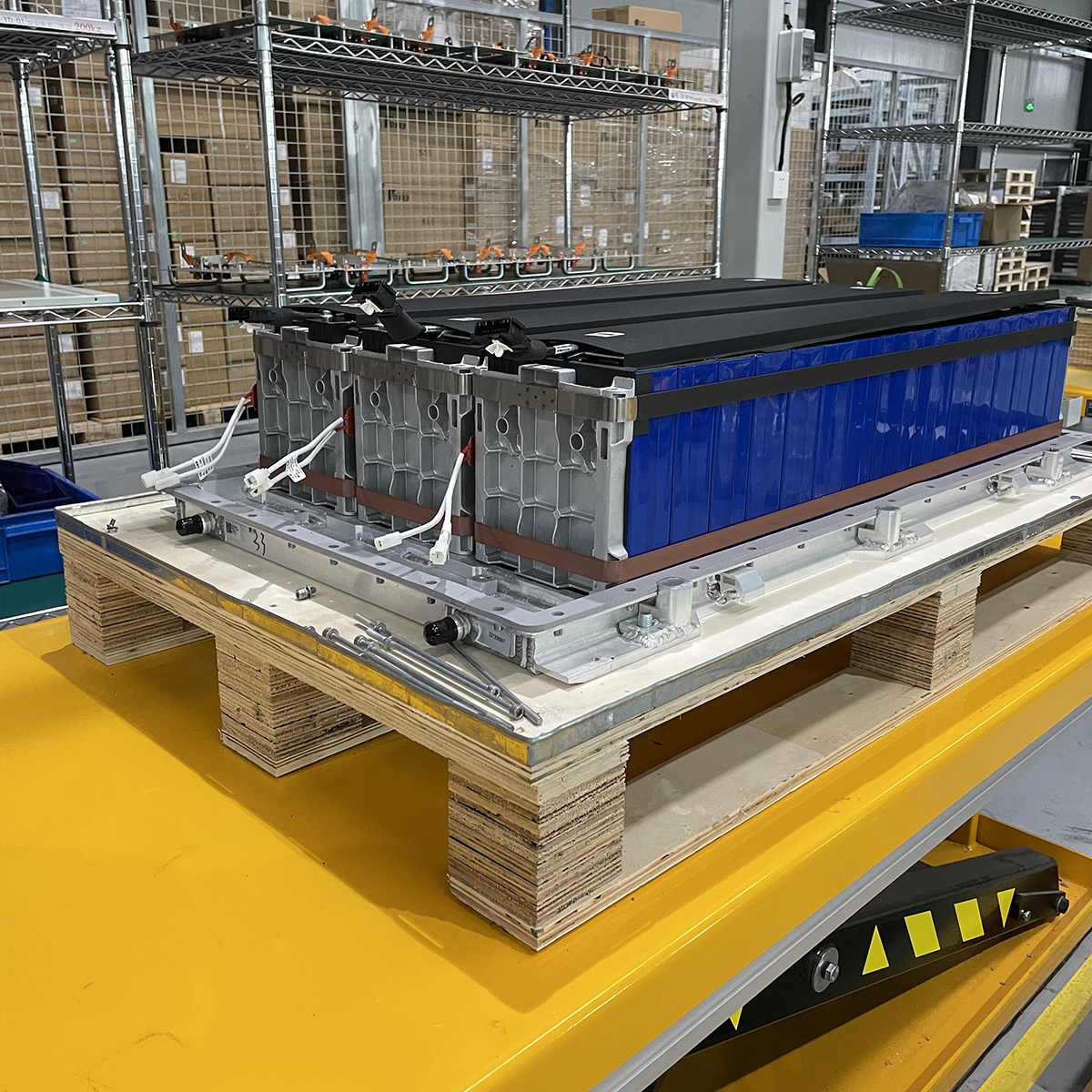

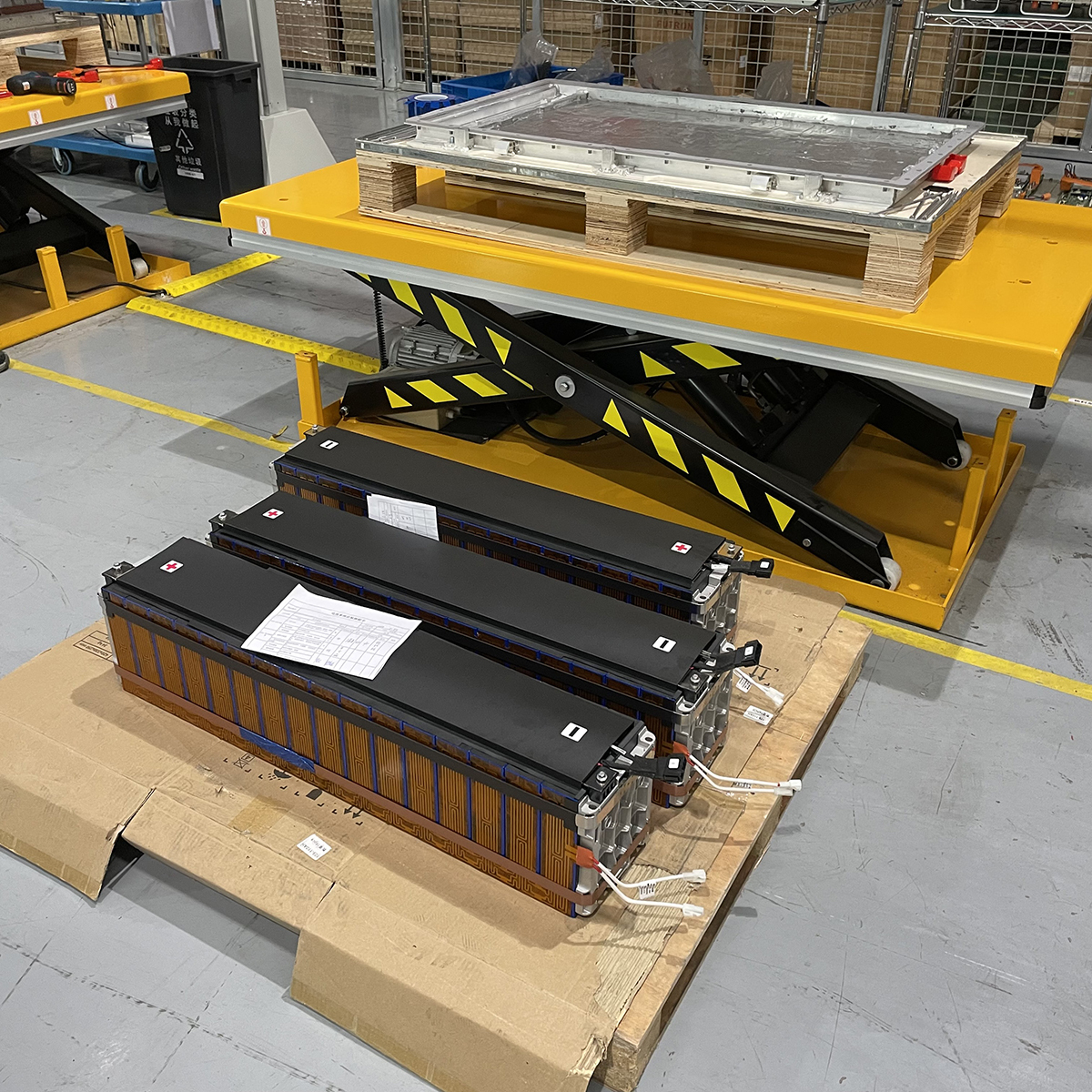

Production details:

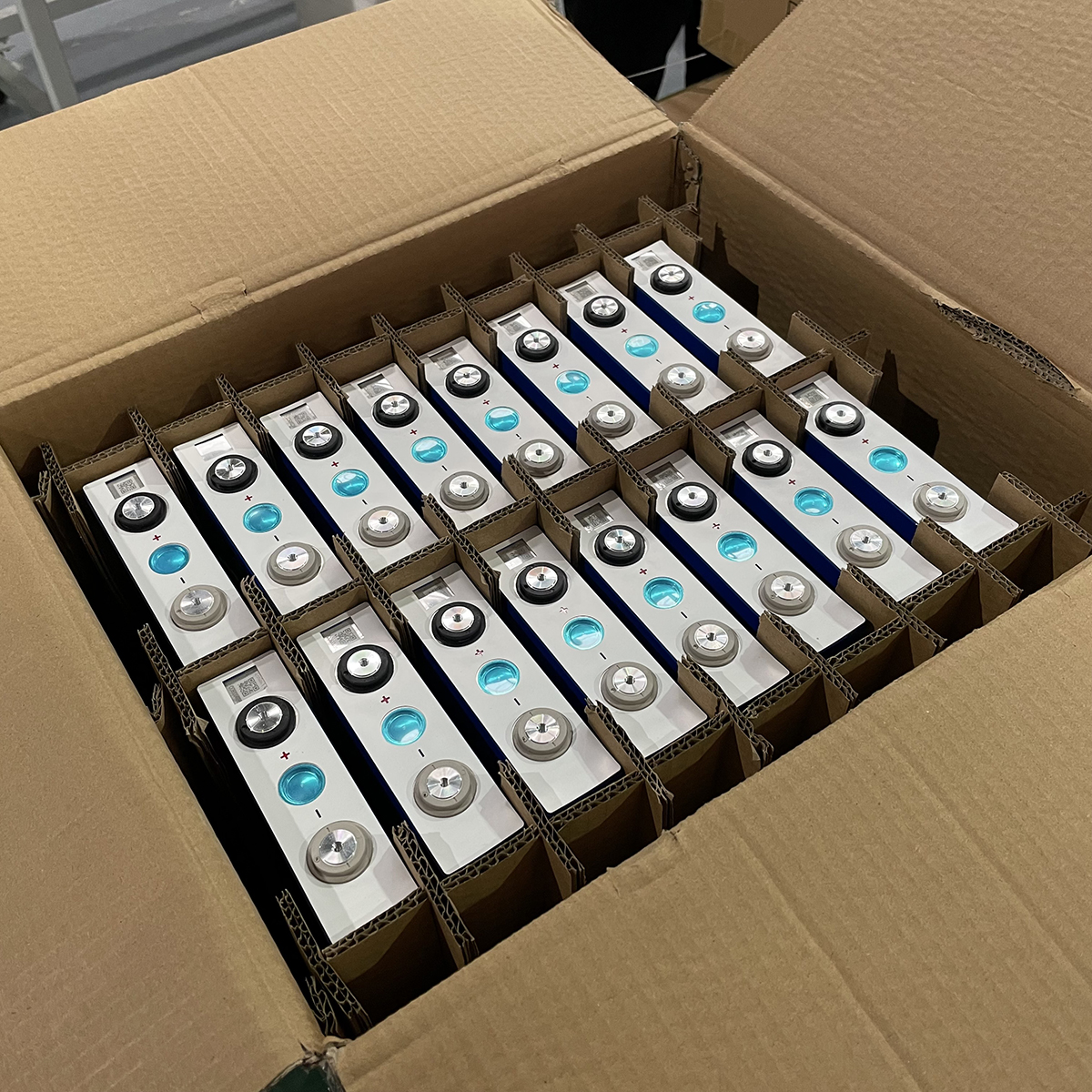

(1). All LiFePO4 Battery Cells are from CATL or EVE, best quality and super long life

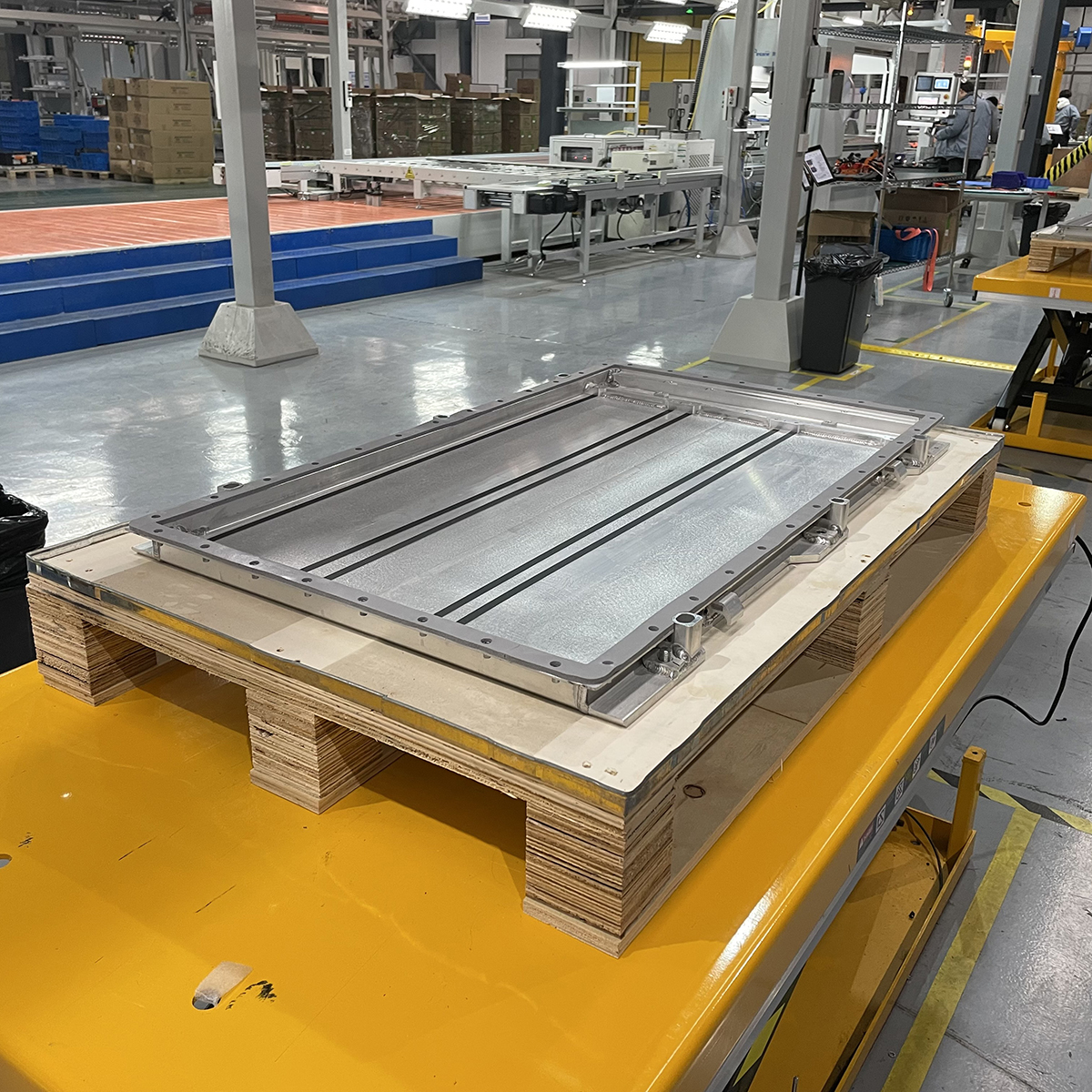

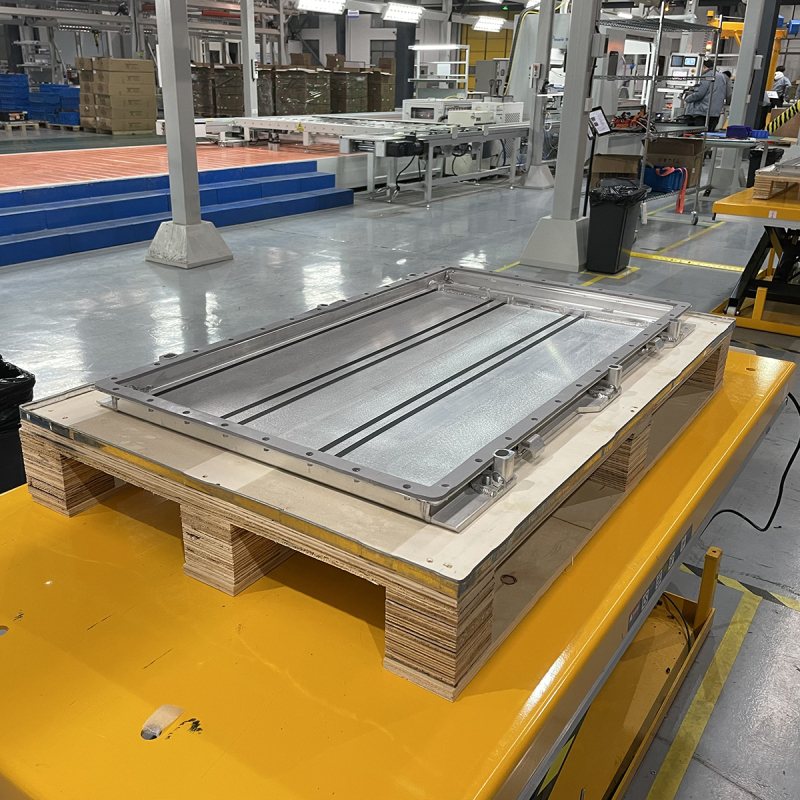

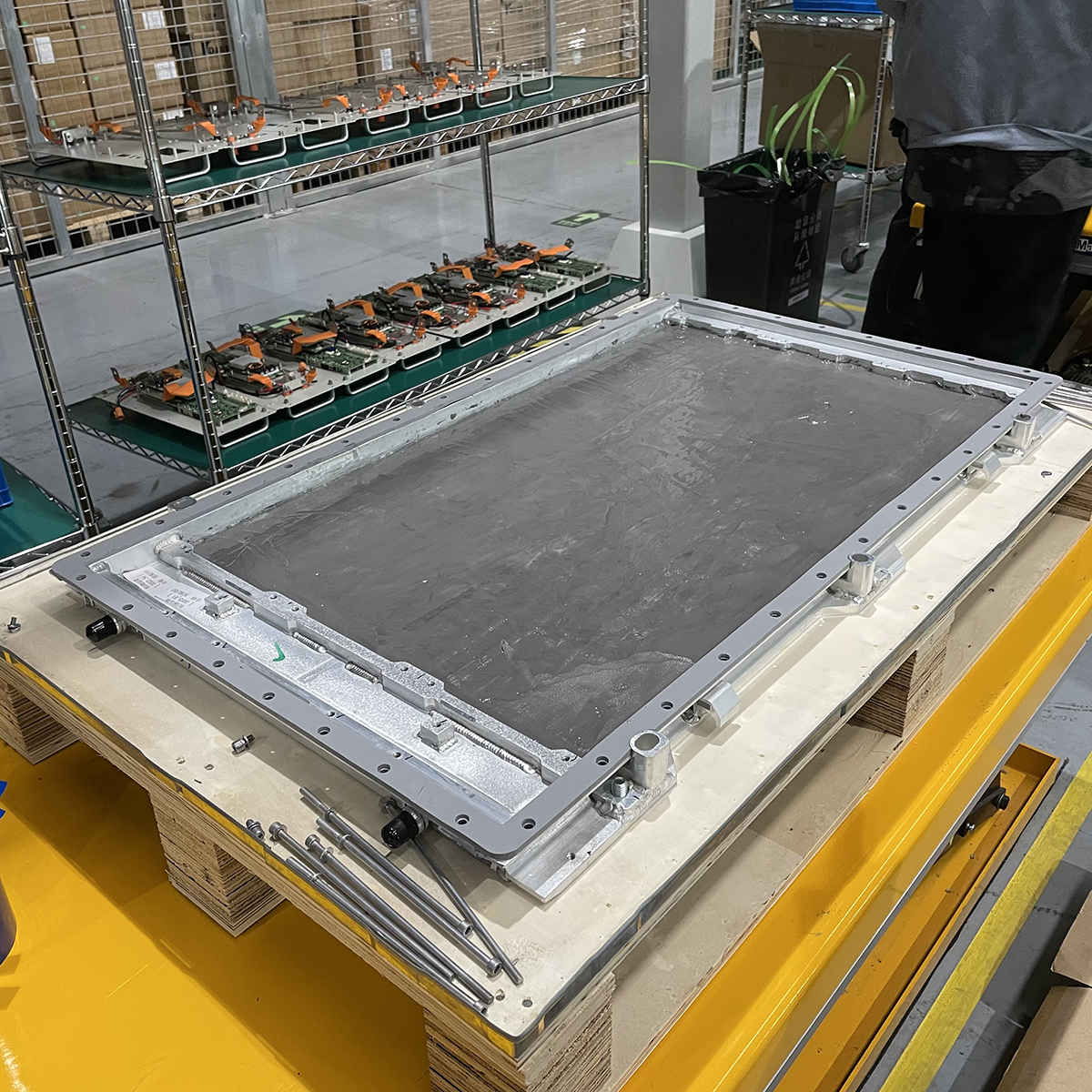

(2). Aluminium Base holding plate design according to battery size, strong structure with liquid cooling design, best cooling and ensure product stable and long life.
(3). Filling thermal conductive silica gel, ensure best cooling and ensure product stable and long life.
(4). All with Aluminium fixtures, strong and good heat sinking performance. Fixed all around by plastic steel strips, strong and stable structure.

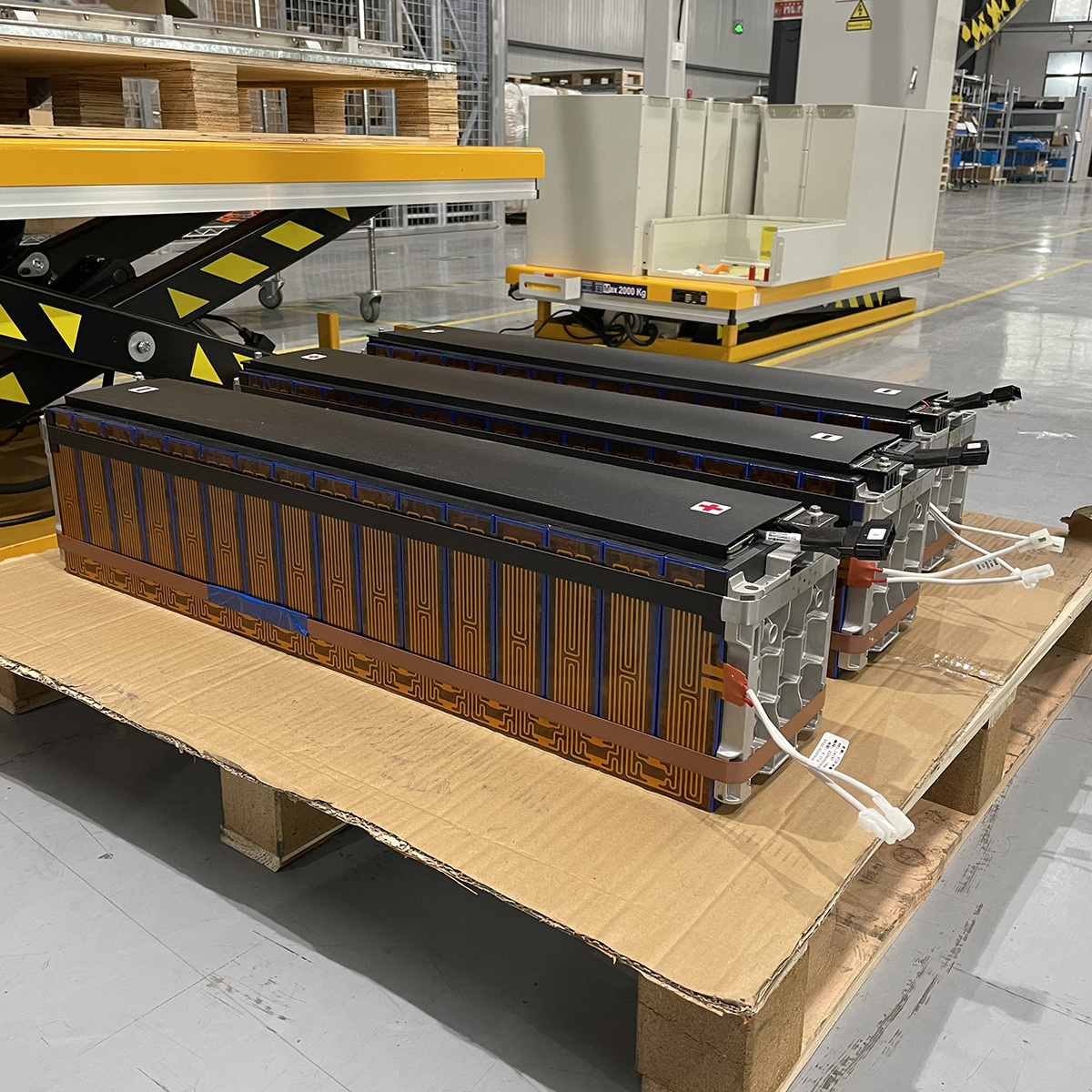

(5). Heating wires attached on cells will ensure battery can be used in low temperature places.

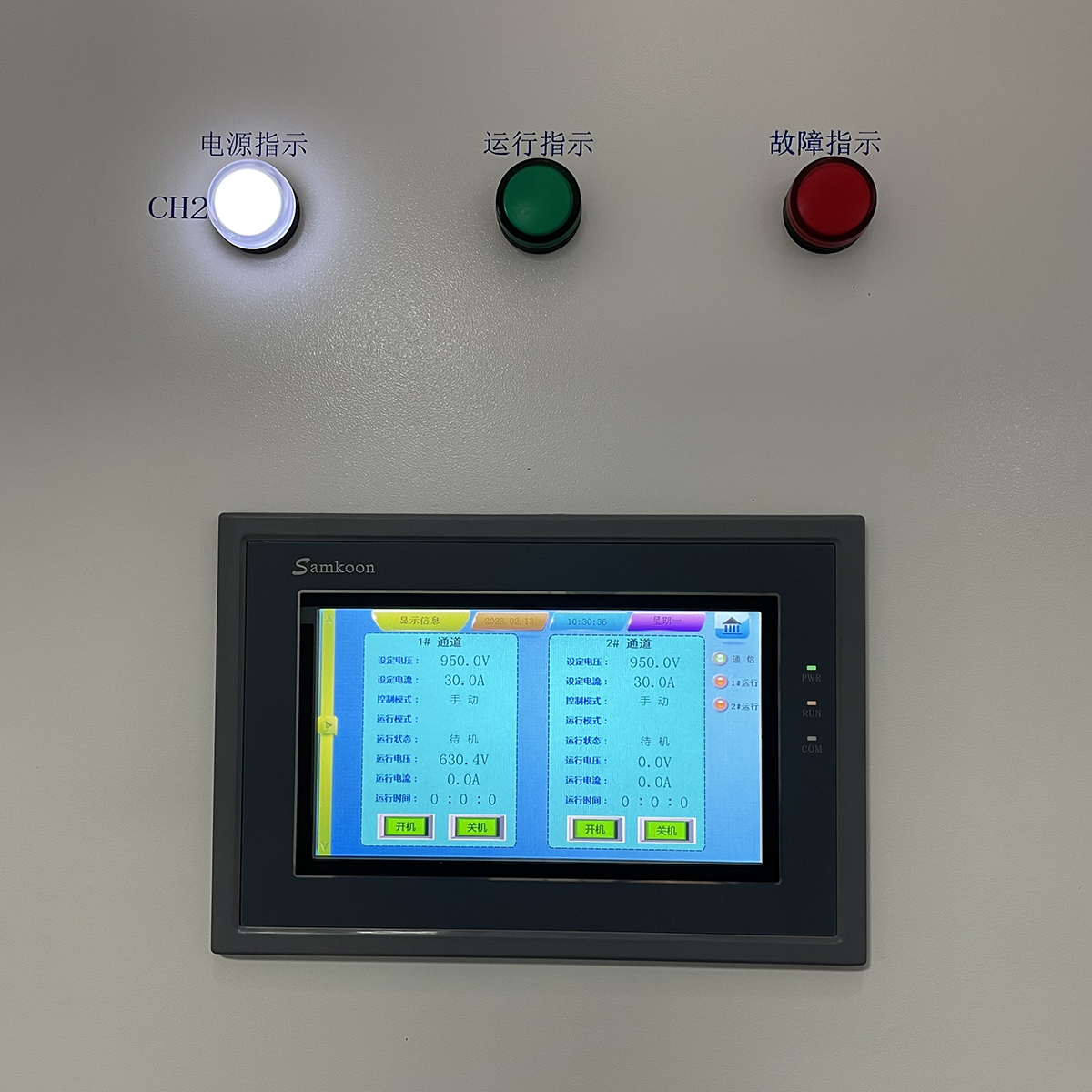

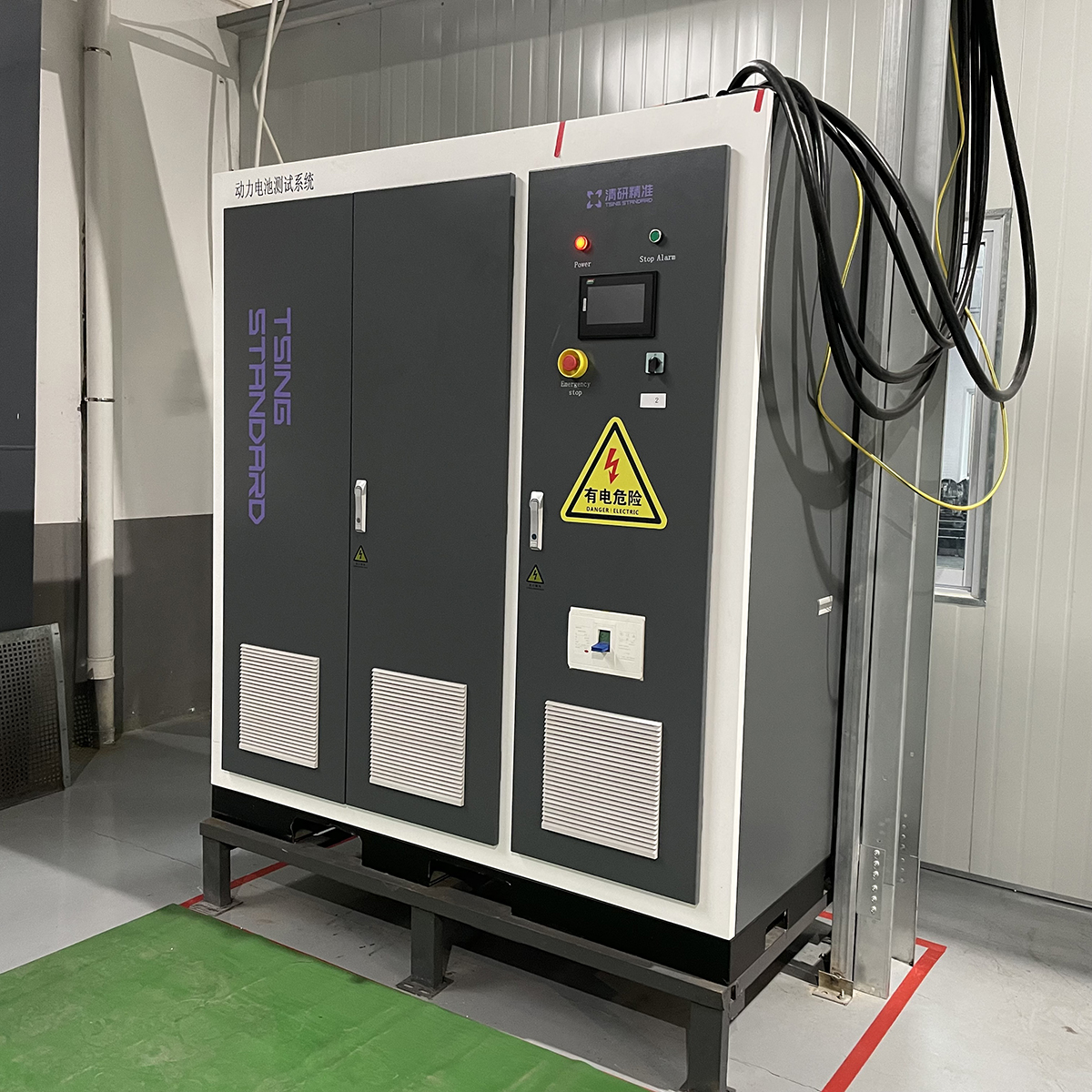

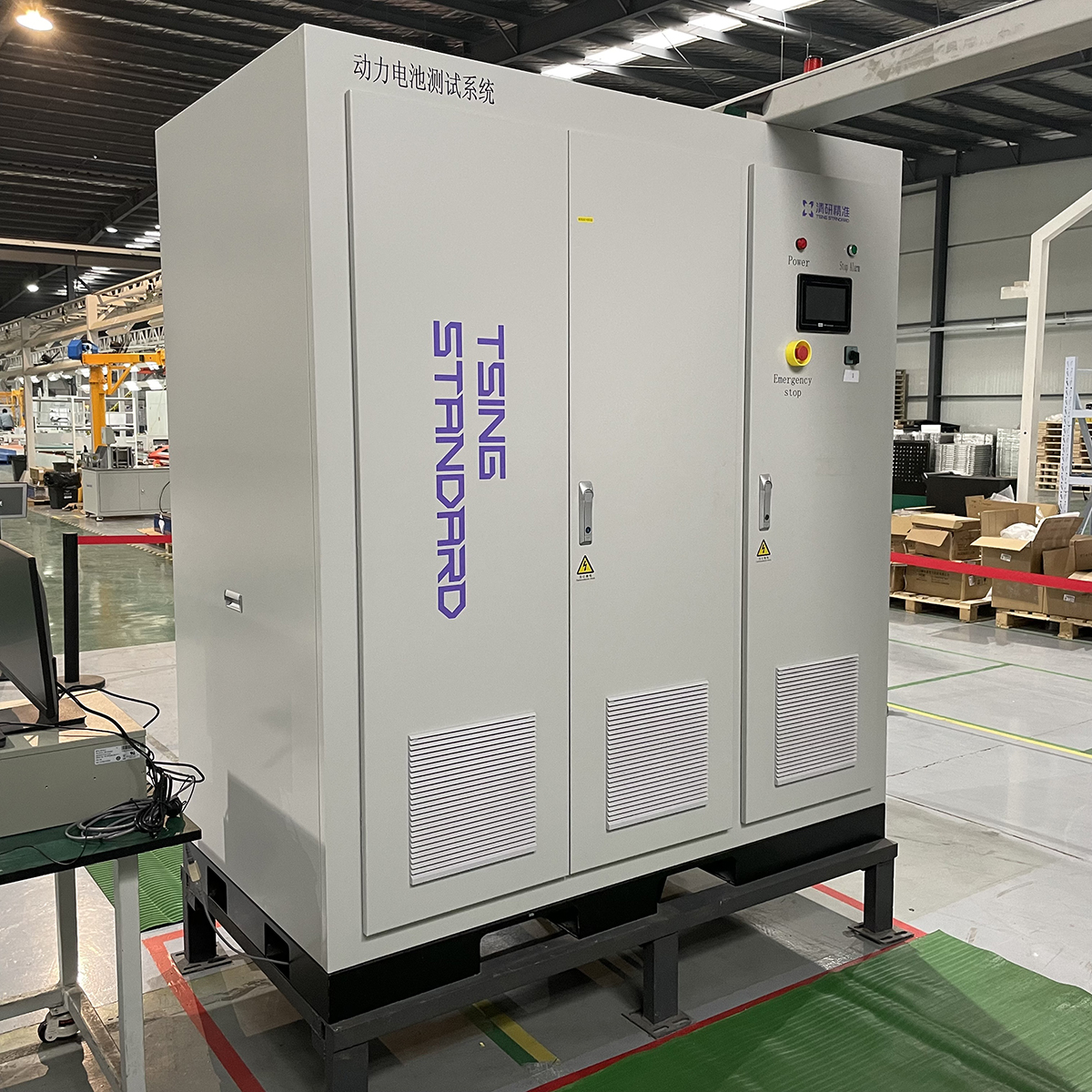

Testing Details:

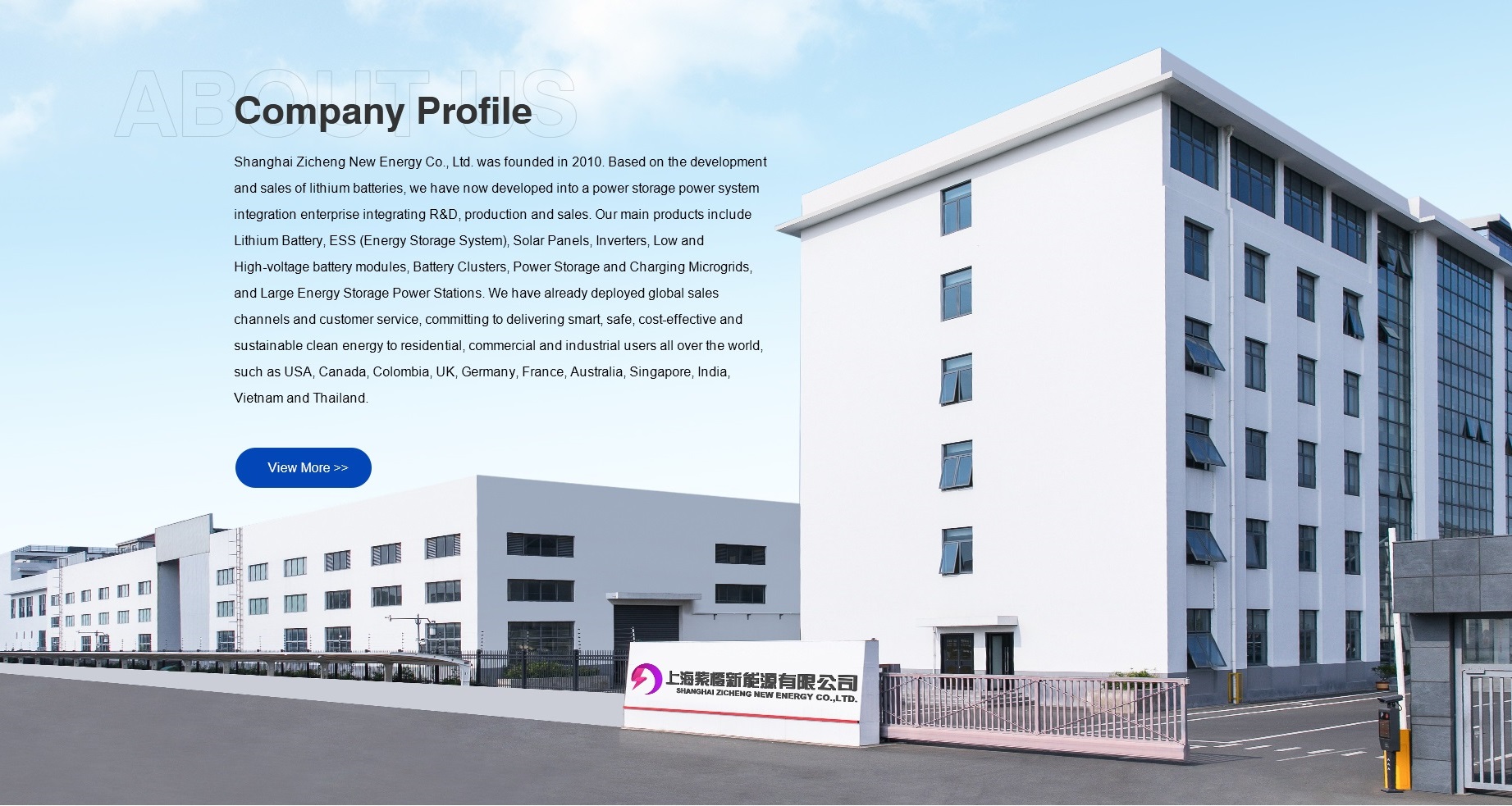

Shanghai Zicheng New Energy Co., Ltd. was founded in 2010. Based on the development and sales of lithium batteries, we have now developed into a power storage power system integration enterprise integrating R&D, production and sales. Our main products include ESS (Energy Storage System), Lithium Batteries, Solar Panels, Inverters, Low and High-voltage battery modules, Battery Clusters, Power Storage and Charging Microgrids, and Large Energy Storage Power Stations. We have already deployed global sales channels and customer service, committing to delivering smart, safe, cost-effective and sustainable clean energy to residential, commercial and industrial users all over the world, such as USA, Canada, Colombia, UK, Germany, France, Singapore and India.
