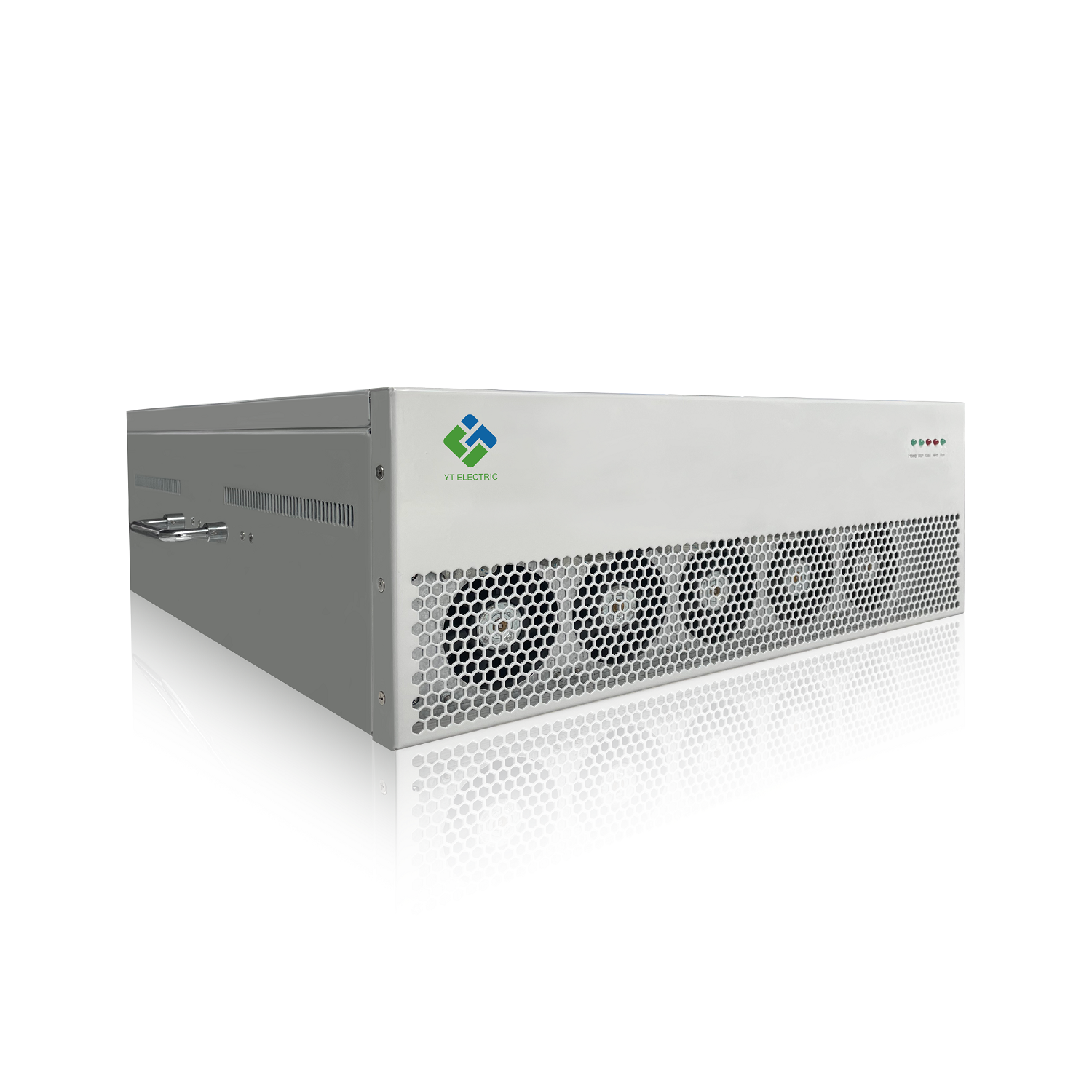

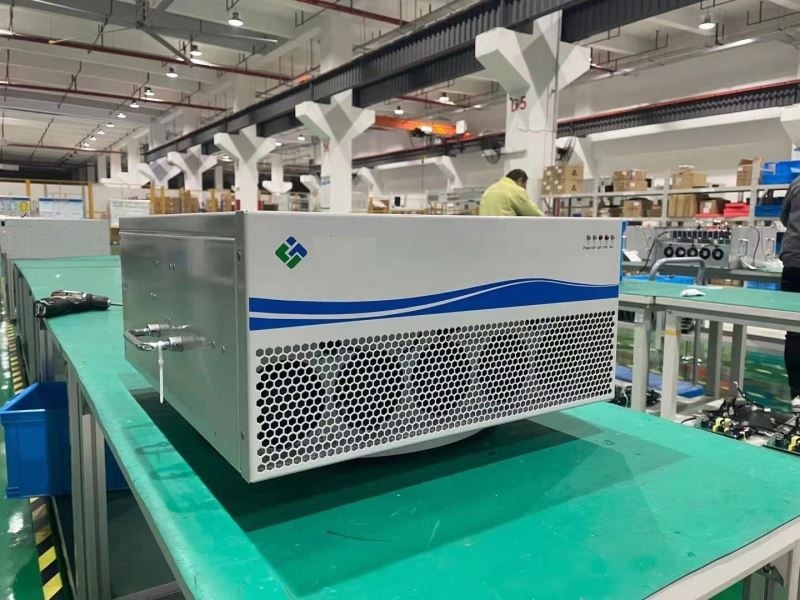

PQC-AHF Active Harmonic Filter
PQC-AHF Active Harmonic Filter is a perfect and comprehensive solution to the power quality issues of power grid , such as harmonics, reactive power and 3 phase load unbalance. PQC-AHF which is in parallel to power grid can detect the harmonic wave in power grid in time, generate the reverse-phase compensation current through the converter and dynamically filter the harmonic wave in power grid.
The operation of PQC-AHF is unaffected by multifarious load forms and power grid structures. And it will not produce harmonic oscillation (resonance) along with the system, thus perfectly realizing harmonic control under diverse loads. PQC Active Harmonic Filter can fully accomplish dynamic reactive compensation, control the capacitor switching and ultimately heighten the power factor of power grid. Meanwhile, PQC-AHF has the function of controlling the three-phase load current unbalance, thus comprehensively handling various power quality matters in power grid.

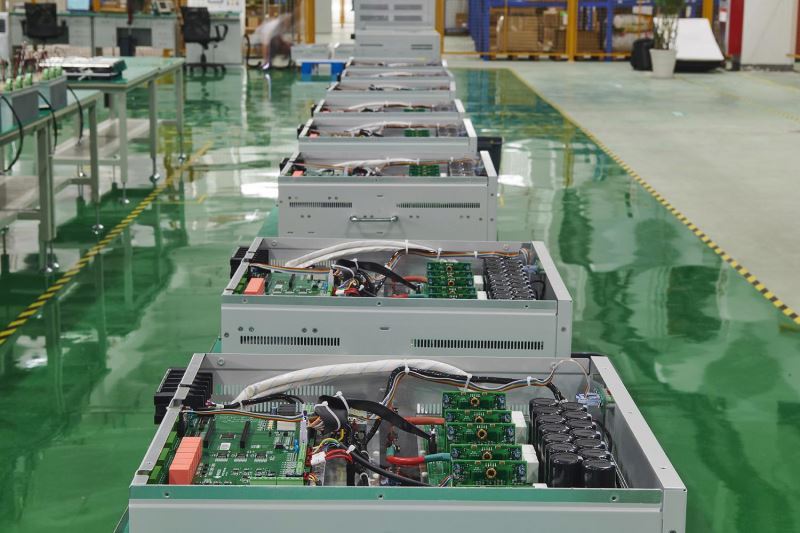

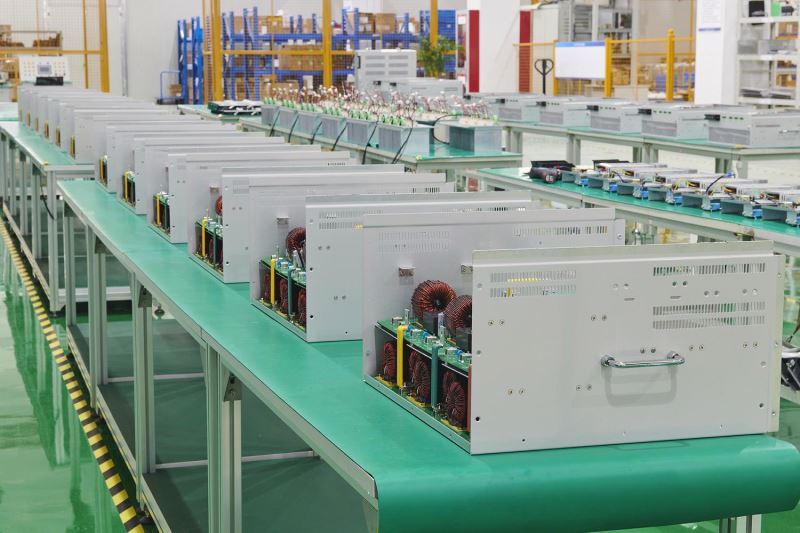

Modular Design

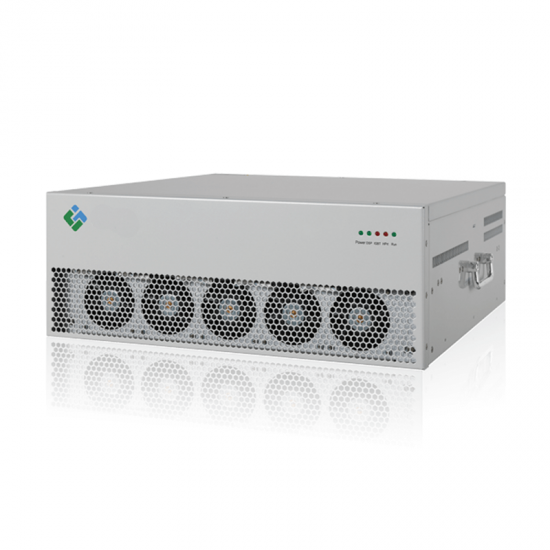

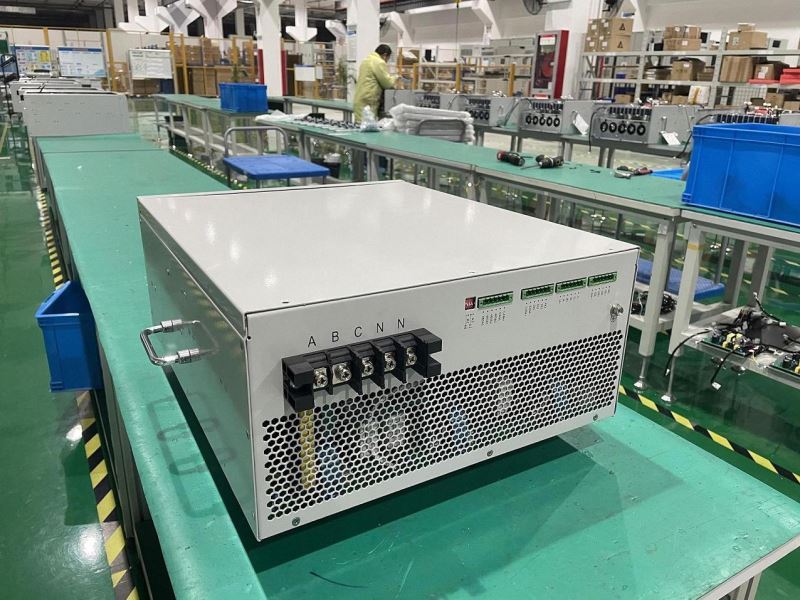

PQC Active Harmonic Filter has a advanced modular design. Usually PQC-AHF consists of one or several AHF modules and an optional touched LCD Human Machine Interface. Each AHF module is an independent harmonic filtering system, and users can change the harmonic filtering system rating by adding or removing AHF modules.
Model Description
PQC-AHF Active Harmonic Filter Module series cover from 15A to 150A, support wall mounted type, rack type, free landing modules.
| SN | Item | Rated Capacity | Factory Model | Dimensions (W*D*H,MM) |
N.G (KG) |
Packing Size (W*D*H,MM) |
G.W. (KG) |
| 1 | APF | 15A | PQC-AHF/15-4-4L-RW | 360*402*125 | 20 | 740*690*445 | 25 |
| 2 | APF | 25A | PQC-AHF/25-4-4L-RW | 360*402*125 | 20 | 740*690*445 | 25 |
| 3 | APF | 50A | PQC-AHF/50-4-4L-RW | 505*550*190 | 34 | 740*690*445 | 40 |
| 4 | APF | 75A | PQC-AHF/75-4-4L-RW | 505*550*190 | 35 | 740*690*445 | 40 |
| 5 | APF | 100A | PQC-AHF/100-4-4L-RW | 505*570*280 | 53 | 740*690*445 | 63 |
| 6 | APF | 125A | PQC-AHF/125-4-4L-RW | 505*570*280 | 54 | 740*690*445 | 64 |
| 7 | APF | 150A | PQC-AHF/150-4-4L-RW | 505*570*280 | 55 | 740*690*445 | 65 |
PQC Active Harmonic Filter is available in a wide range of ratings, to serve a wide range of consumer applications. Its modular design allows flexibility in installation and integration. The inherent energy-efficient design,3 level topology, and the optional user-friendly Haman Machine Interface, make PQC-AHF a highly preferred solution for all segments of electricity consumers, system integrators and OEM manufacture.
| Technical Data and Specifications | ||||
| Rated Voltage | 220V (171~269V) |
400V (300~456V) |
480V (356~515V) |
690V (483~793V) |
| Rated Current |
15/25/50/75/100/150A |
15/25/50/75/100/150A |
50/75A/100/120A |
100A,150A |
| Mains Frequency | 50/60Hz±5% | |||
| Circuit Topology | Three Level | |||
| Multi Compensation Mode | Harmonic compensation, reactive compensation, three-phase load unbalance compensation | |||
| Filter range | 2nd~51st odd order harmonics (Selective or Full compensation) | |||
| Rated of Harmonic Reduction | ≥97% (For typical harmonic order distortions) | |||
| Filtering Performance | Typically, THDi≤ 5% at rated load(Even with most complex loads). | |||
| Target Power Factor | Adjustable from -1.0 to +1.0 | |||
| 3 Phase Load Balancing Effect | ≤5%, Mitigate negative and zero sequence | |||
| Neatral Filtering Capacity | 3 times the rated filter current(in case of 4 wire device) | |||
| Switching/control frequency | 25.6kHz | |||
| Initial response time | ≤50us | |||
| Overall Response time | ≤5ms | |||
| Active loss of system | ≤2.5% | |||
| Output current limit | Automatically limited within 100% of rated capacity to output | |||
| Control algorithm | Intelligent FFT,Self-adaptive control algorithm | |||
| Controller | DSP+FPGA | |||
| Protection | Hardware protection, Software protection | |||
| Control connection | Fiber or electrical connection | |||
| Human Machine Interface | 7 inch touched TFT LCD HMI | |||
| Communication protocols | Adopt Modbus remote communication protocol; communication interface adopts RS485 and CAN bus, supporting mobile phone APP operation. | |||
| Noise | <60db (<45db during low-speed operation) | |||

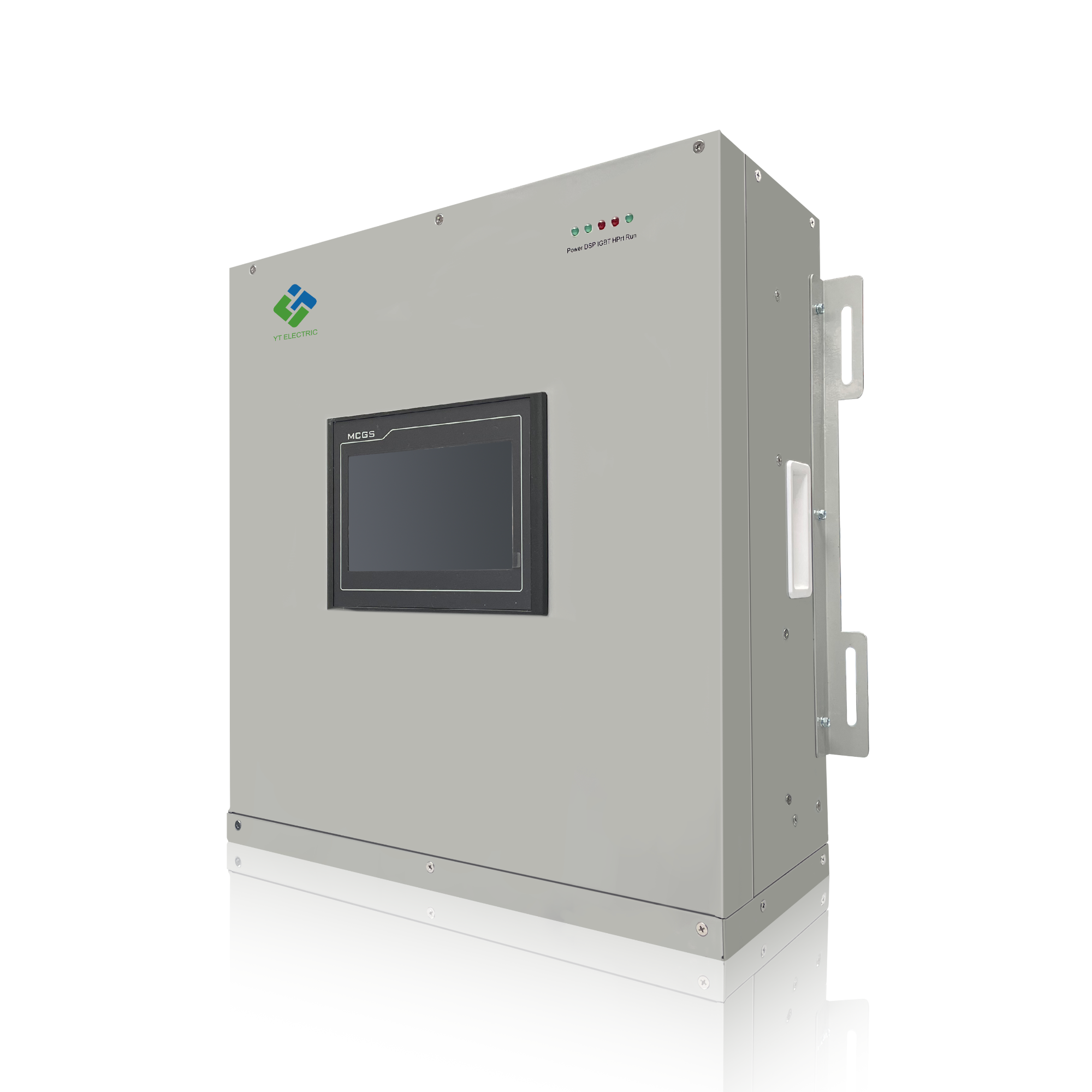

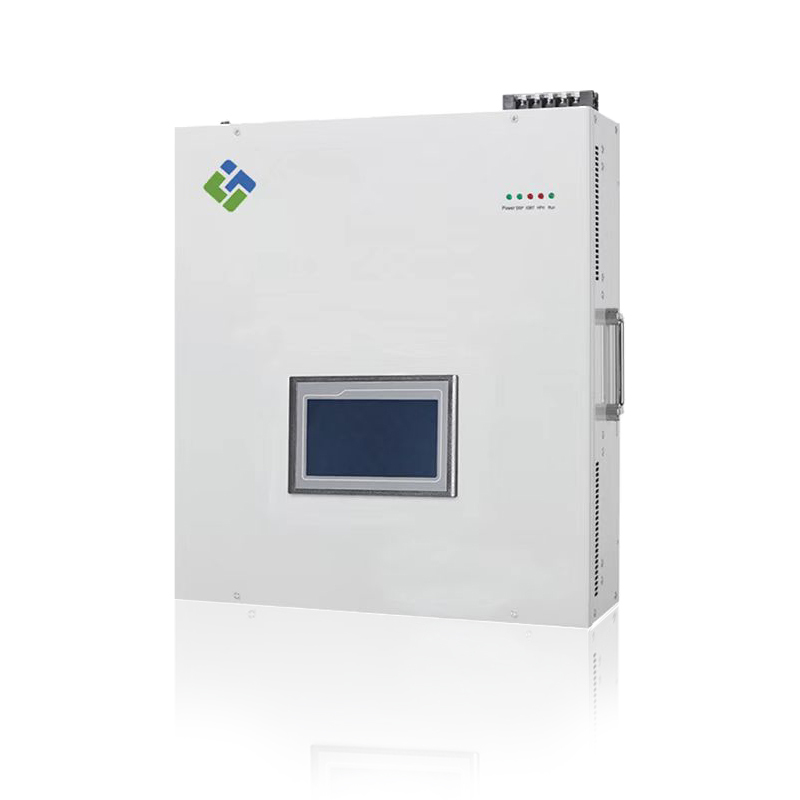

| Installation method | Module embedded(Rack),wall mounted, free landing | |||
| Level of protection | IP20 | |||
| Cooling method | Speed regulation intelligent air cooling PWM Fans | |||
| Color | RAL 7035 Light Grey | |||
| Ambient temperature | -20~55℃ | |||
| Relative humidity | Maximum 95%, without condensation | |||
| Mounting height above sea level | ≤2000 at rated capacity; appropriately reduce the capacity if it is > 2000(1% derating per 100m) | |||
| Qaulifications | CE, IEEE61000,Type Test Report | |||
| Compliance with Standards | IEEE 519, ERG5/4 | |||
PQC-AHF in Textile Industry
PQC Active Harmonic Filter, reduced harmonic levels results in improved electrical network reliability and reduced operating costs. Nuisance tripping of protective devices and nuisance clearing of fuses due to harmonic heating effects is greatly reduced.
Overheating of motors, transformers, switch gear and cables is also reduced which increases their life expectancy and reduces maintenance costs. For new installations, over-sizing of distribution equipment to reduce harmonic susceptibility can be reconsidered.
The Background
With the development of social economy and science technology, many textile printing and dyeing enterprises in order to improve the product quality of transformation technology, large use of VFDs, DC equipment, including ventilation equipment (including frequency conversion fan and air conditioning), lighting equipment, production equipment (yarn, fine sand, grasp cotton, shaping machine, dyeing cylinder, etc.), produce a large number of 5th,7th order harmonic, cause harmonic, harmonic pollution, lead to power quality decline.
 |
 |
The Power Quality Problem
A company is specialized in the production of non-woven fabric manufacturer, producing a variety of short fiber non-woven cloth, varieties of melt-blown non-woven cloth, synthetic leather non-woven cloth, acupuncture non-woven cloth, propylene non-woven cloth, water absorption pad, filter non-woven cloth, antibacterial cotton, automotive interior materials, oil absorption mat and other non-woven products.
PQC-AHF in Networks
The industrial load mainly includes carding machine, needle acupuncture machine, non-woven oven, coil machine, etc., which will produce series harmonics in the production process, resulting in the field capacitance compensation cabinet can not work normally.In order to ensure the normal operation of the field capacitors cabinet, the 300A Active Harmonic Filter is installed for harmonic mitigation.
The Technical Performance
The THDV at site is 5.9%, exceeding the national standard limit of 5%, the THDi is 23.5%, the harmonic current is mainly 3rd, 5th, 7th order harmonics, and also contains a small number of 2nd and 4th even harmonics. After treatment, THDv decreased to 2.2%, the THDi decreased to 2.0%, and the current waveform was also restored to the sinusoidal wave type.
|
Grid data before PQC-AHF
|
Grid data after PQC-AHF |
 |
 |
The Benefits
After installation of Active Harmonic Filter, Will compliance with IEEE 519, G5/4, EN 50160 and also other power quality standards and recommendations:
More applications
