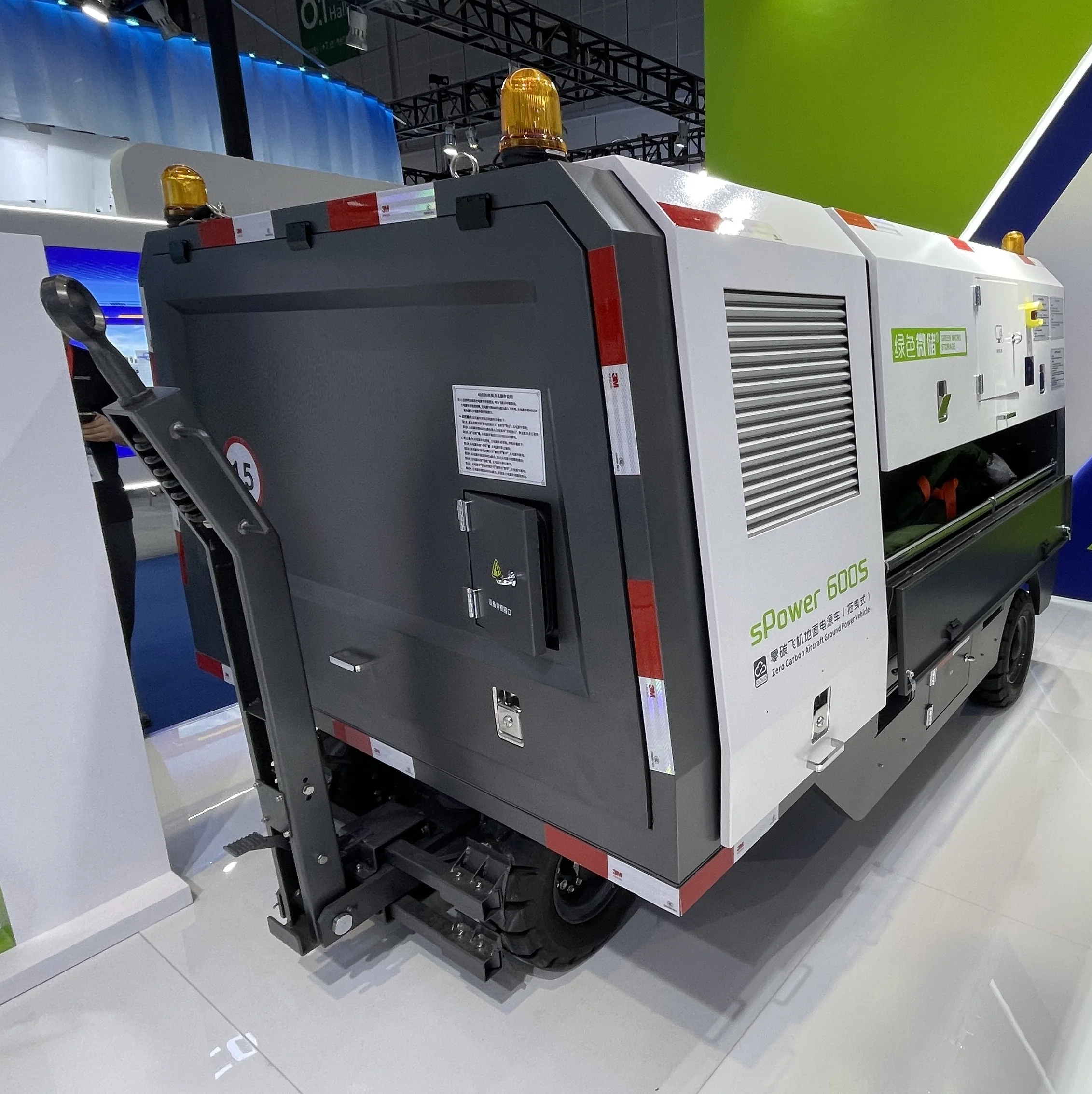

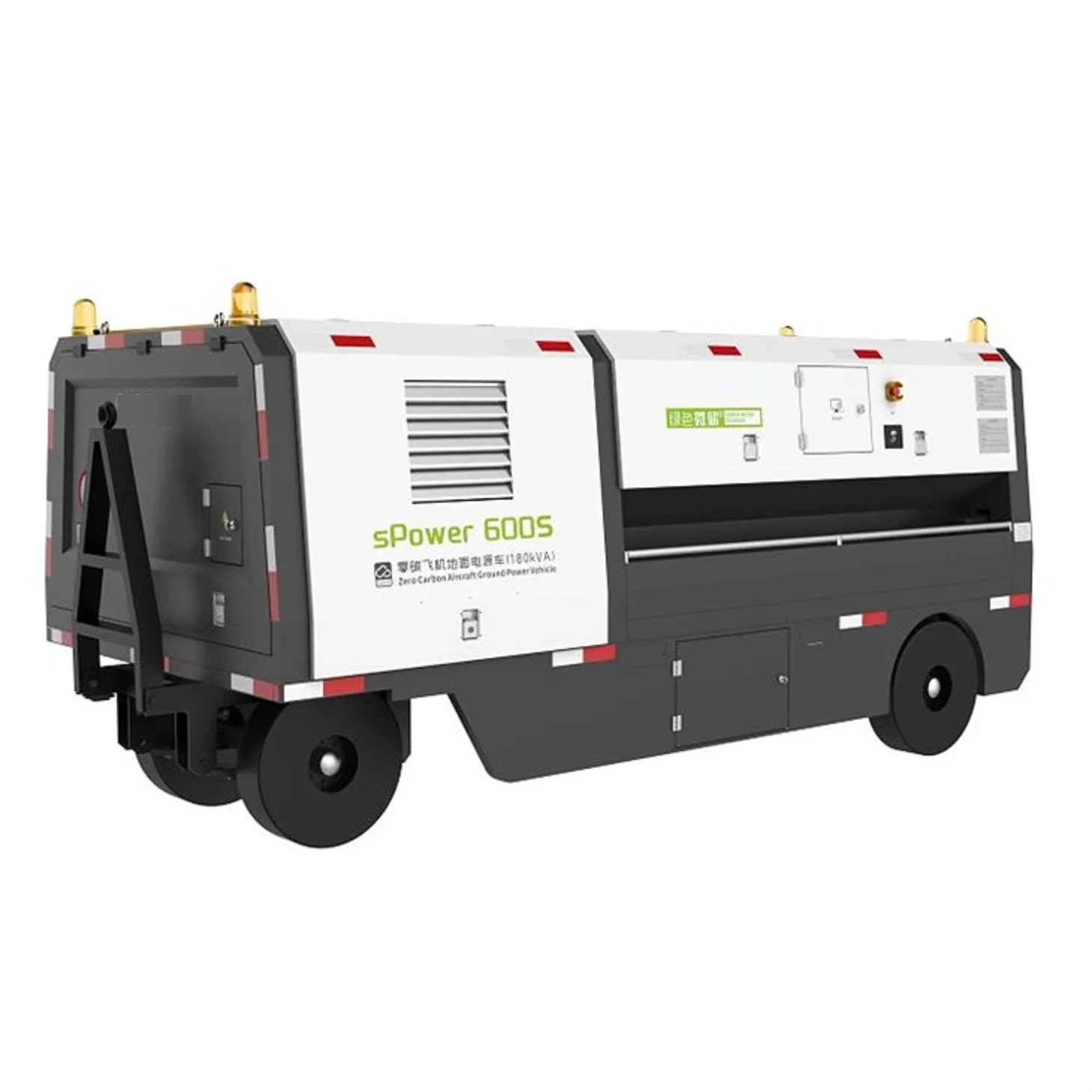

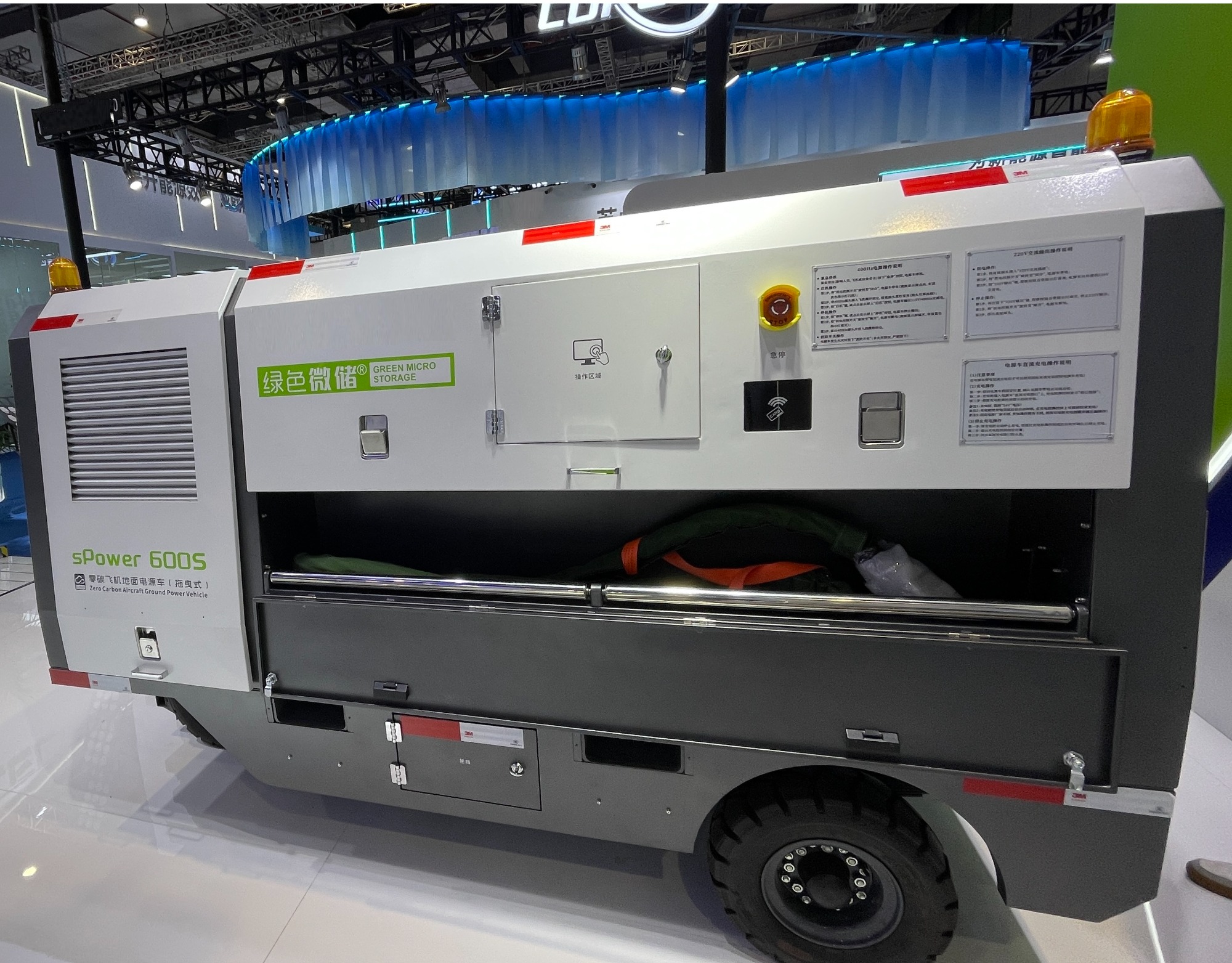

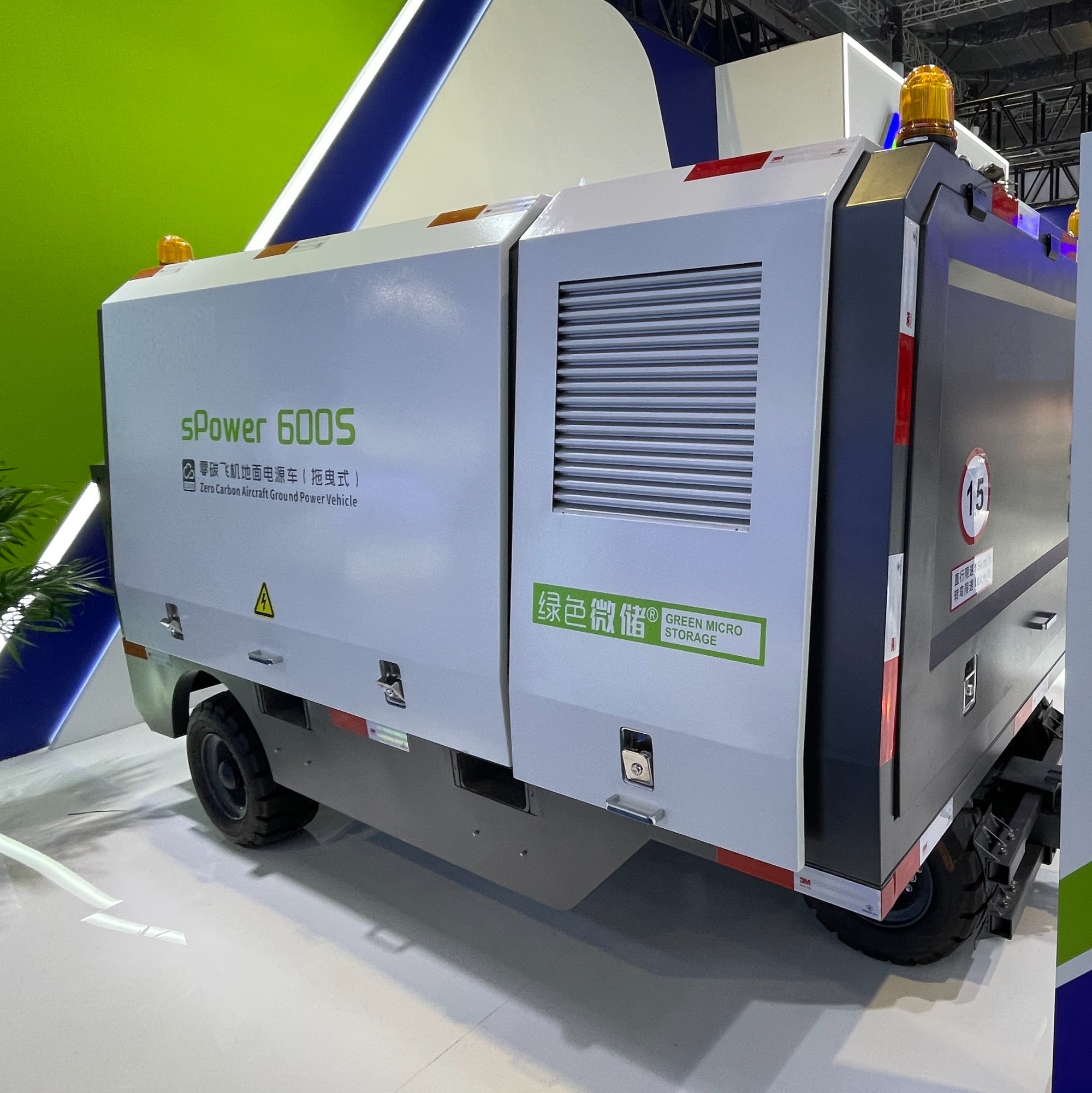

115VAC 400Hz 280kWh 180kVA Towed Aircraft Ground Energy Storage System Power Supply Static Frequency Conversion Power
Product Introduction:

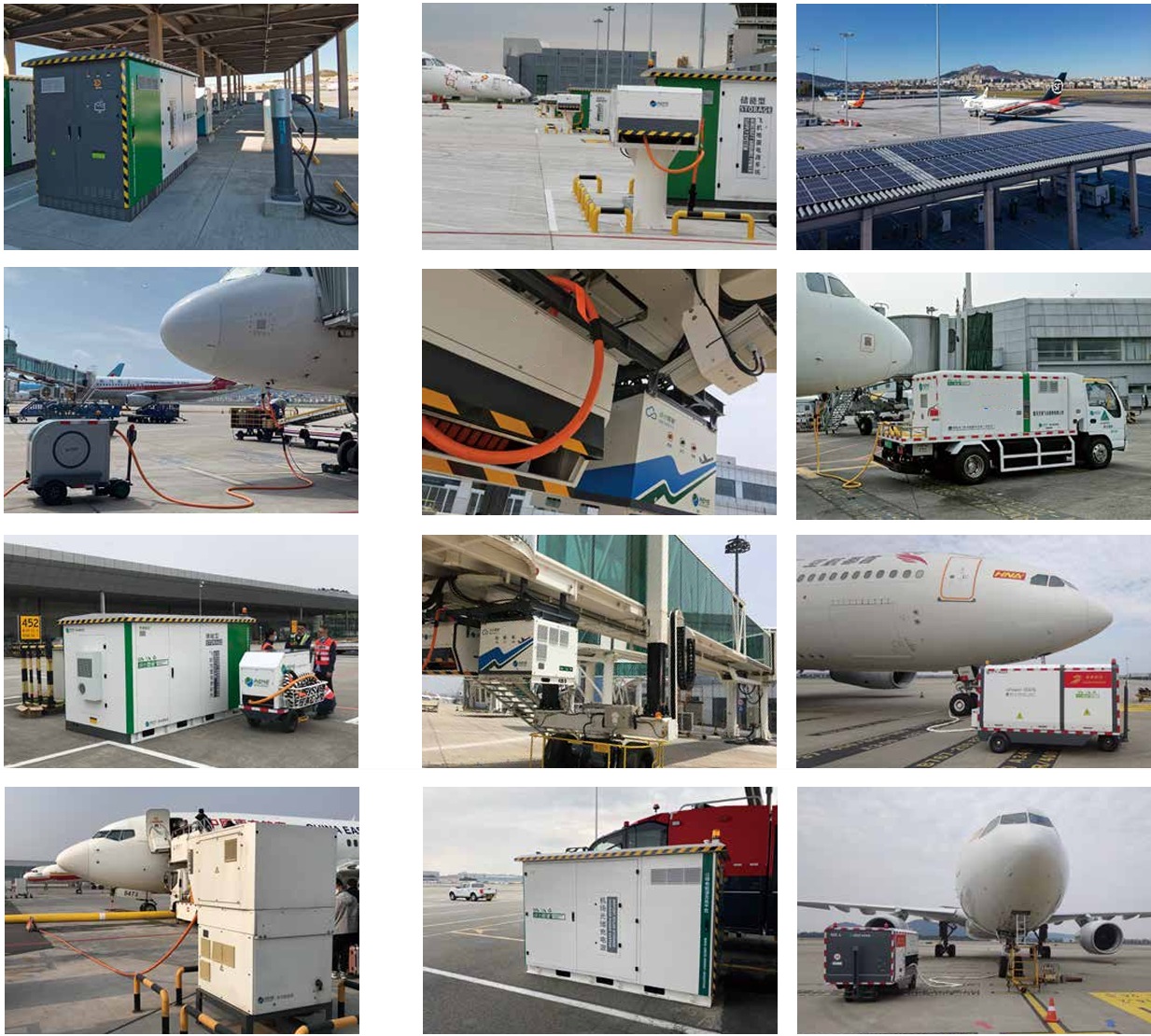

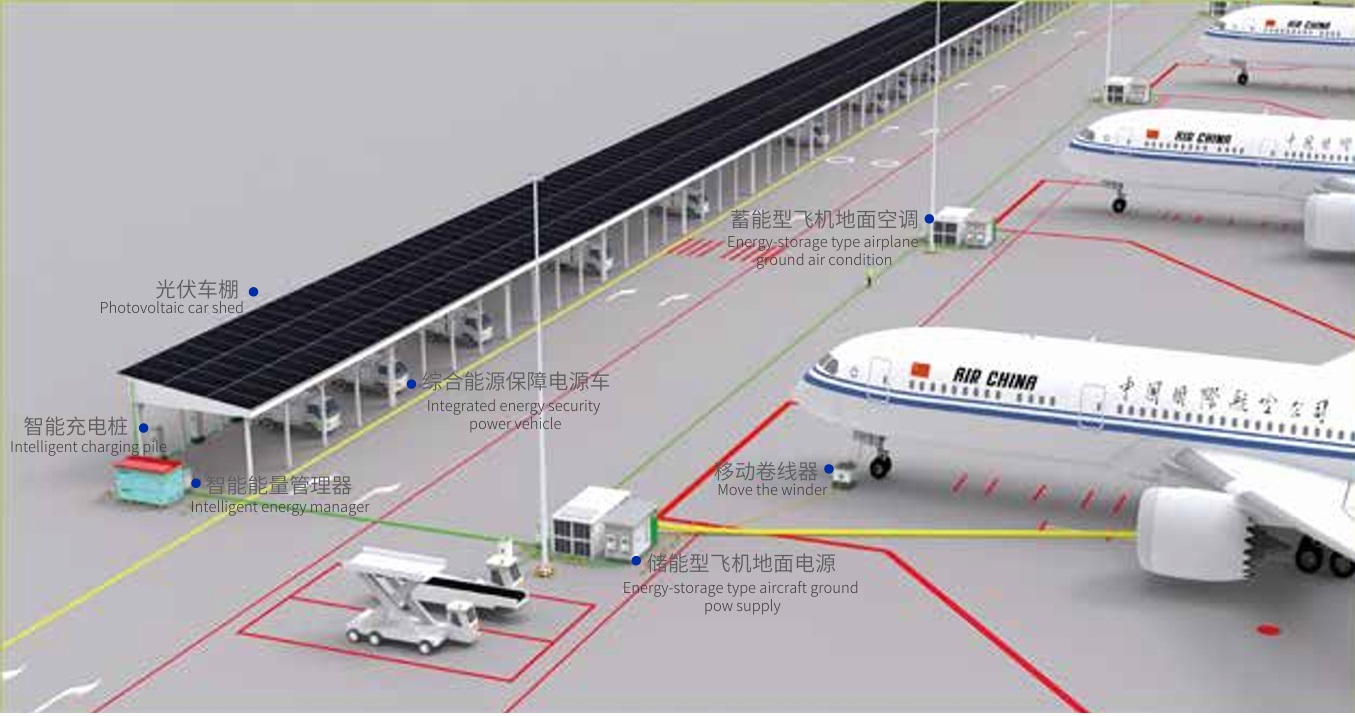

1.It could be applied to civil aviation airport, actively respond to“ Blue Sky Defense Battle”, replace mobile fuel APU power supply, and provide clean, efficient and stable 400Hz power supply for aircraft. Replace aircraft auxiliary power units (APUs) to power aircraft, minimize carbon dioxide and pollutant emissions caused by APU burning aviation fuel, and reduce APU costs for airlines by more than 60%.

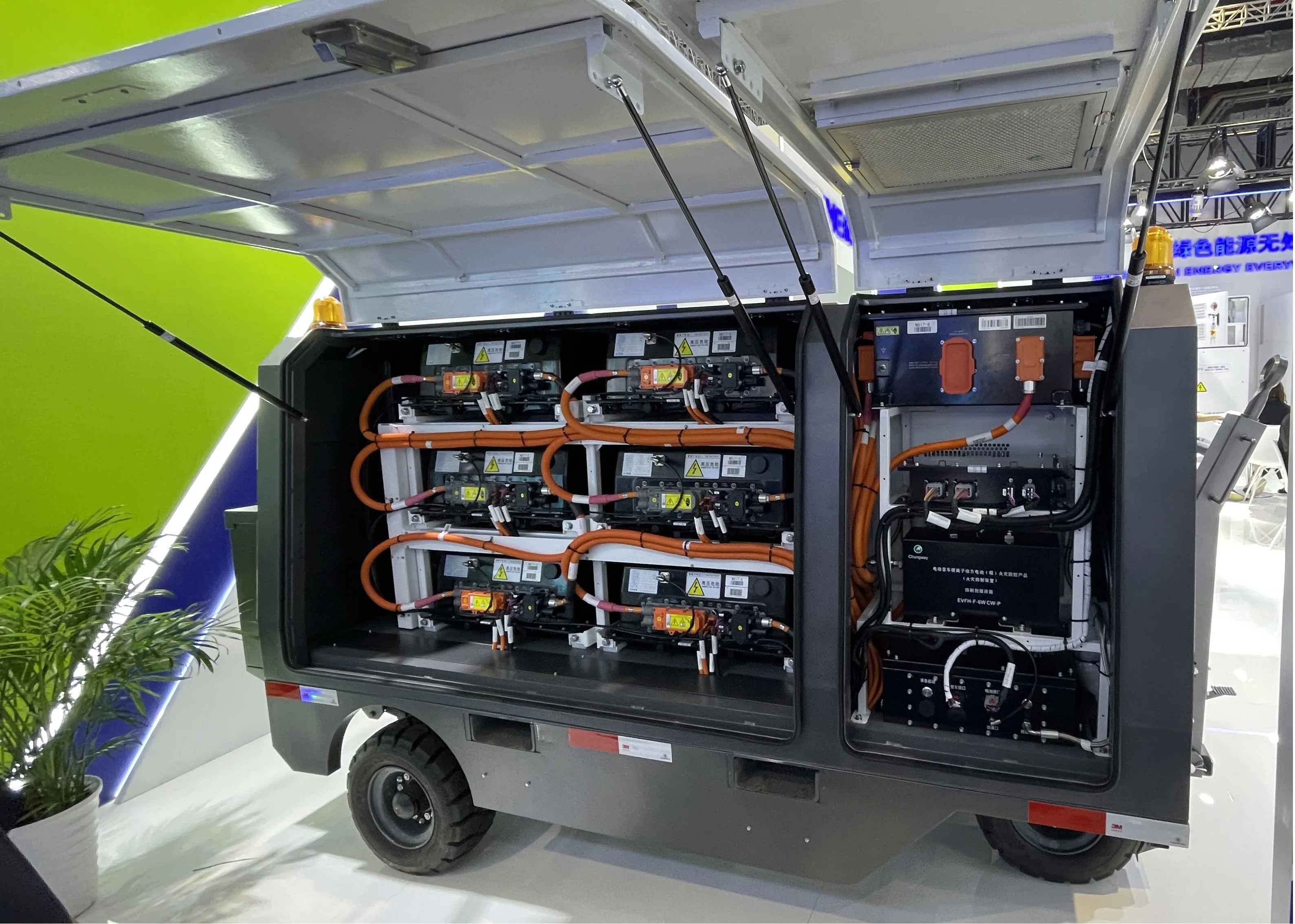

2. This aircraft ground Static Frequency Conversion Power, towed chassis and energy storage battery are integrated into the mobile energy storage Static Frequency Conversion Power, which is easy to move and suitable for a variety of aircraft positions.
3. Modularization configuration, 115V/400Hz, 28VDC dual power output .
4. Meet the power supply requirements of various civil aviation aircrafts.
Features:
1. Safe and Reliable
Adopt Dual fire fighting system: with battery module level automatic fire fighting system and whole vehicle mobile fire fighting system
2. Reliable Power Supply
With dual power supply: Power supply from both power grid and battery, will not be affected by power grid suddenly went out.
3. Intelligent Diagnosis
Full-process diagnosis, accurate fault location, and easy maintenance
4. Cloud Services
With cloud platform, digital equipment management, and improved operation and maintenance efficiency
5. Actual Use Verification
The products have been running stably in several major domestic airports for more than 10 years
Specification:
| Specification Item | Parameters | |
| DC Charging | Connection Mode | Standard DC Charger Interface |
| Maximum Charging Voltage | 700Vdc | |
| Charging Power | 150kW | |
| Maximum Charging current | 250A | |
| Battery Compartment Input |
Rated Voltage | 618.24V |
| Rated Capacity | 280kWh | |
| Minimum Voltage | 480V | |
| Maximum Voltage | 700.8V | |
| Max Continuous Charging Current | 250A | |
| Max Continuous Discharge Current | 400A | |
| Peak Discharge Current | 900A | |
| 400Hz Output | Rated Power | 180kVA |
| Rated Voltage | 115VAC | |
| Rated Frequency | 400Hz | |
| Connection Mode | 3P+N | |
| Power Factor | 0.7~1.0 | |
| Voltage Harmonic | <0.7% | |
| Overload Capacity |
110% | Duration of 60min |
| 125% | Duration of 20min | |
| 150% | Duration of 15min | |
| 200% | Duration of 30.8s | |
| 300% | Duration of 10.7s | |
| 400% | Duration of 1.6s | |
| DC Output |
Rated Current | 800A |
| Continuous Operating Current | 800A | |
| Rated Voltage | 28V | |
| DC Overload |
125% | Duration of 303s |
| 275% | Duration of 2.2s | |
| Protection | Degree of Protection | IP55 |
| Uninterrupted Power Transmission | With | |
| Output Over voltage/ Undervoltage Protection | With | |
| Overload Protection | With | |
| Internal Over-temperature Protection | With | |
| Output Short Circuit Protection | With | |
| Output N Line Disconnection Protection | With | |
| Output N Line Voltage Monitoring | With | |
| Leakage Current Monitoring | With | |
| Input Over voltage/ Undervoltage Protection | With | |
| Input Over/Under Frequency Protection | With | |
| Input Over Current Protection | With | |
| Efficiency | Compound Efficiency | >95% |
| Static Loss | 50W | |
| No-load Loss | 1kW | |
| Environment | Operating Temperature | -35℃~55℃ |
| Relative Humidity | 0~100% (No Condensation) | |
| Noise Level | ≤64dB | |
| Working Altitude | <2000m | |
| Other | Mean Time Between Failures (MTBF) | >15000 Hours |
| Mean Time to Repair (MTTR) | <20 Minutes | |
| Structure | Dimensions (L*W*H) | 5910*2010*2330mm |
| Weight | 5000kg | |
