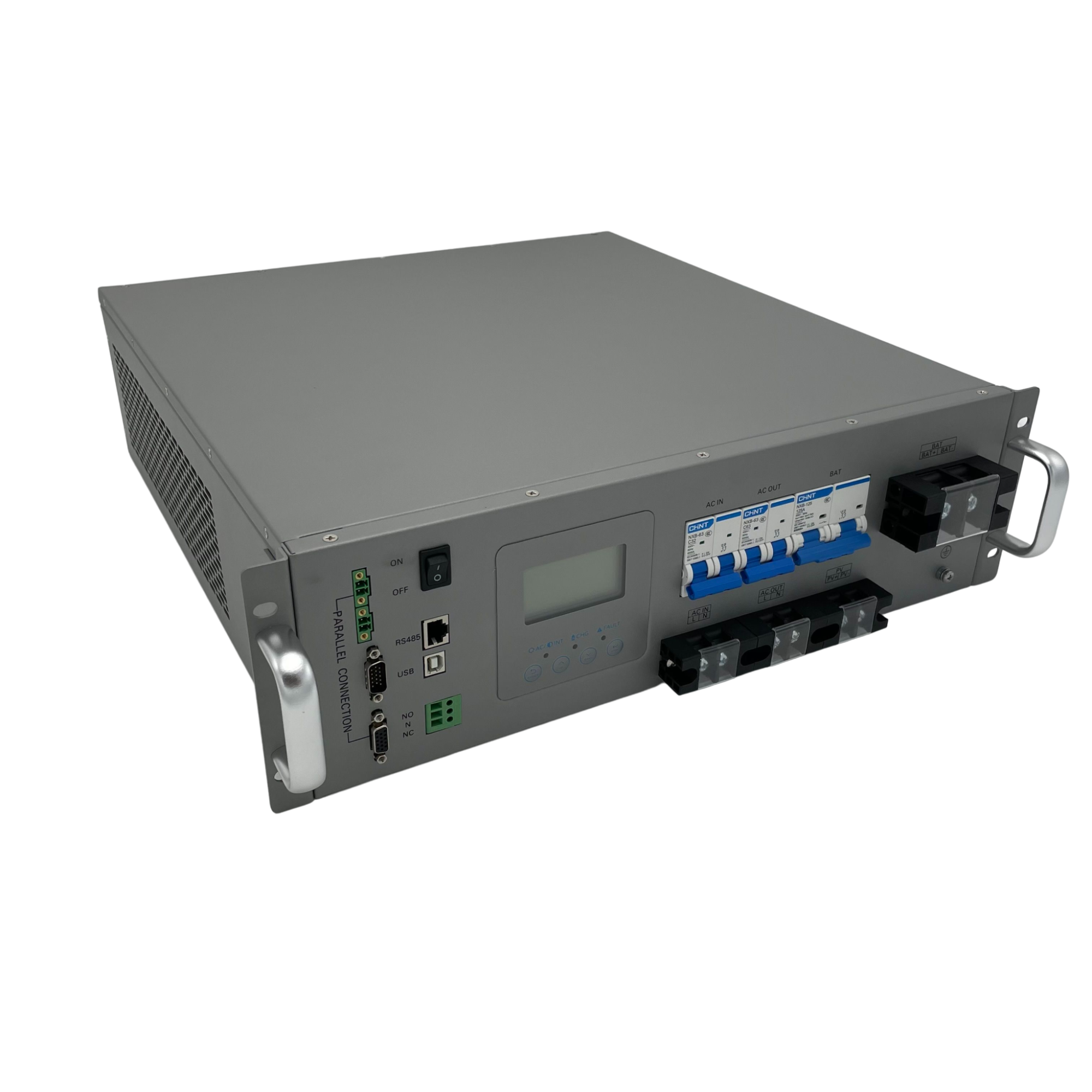

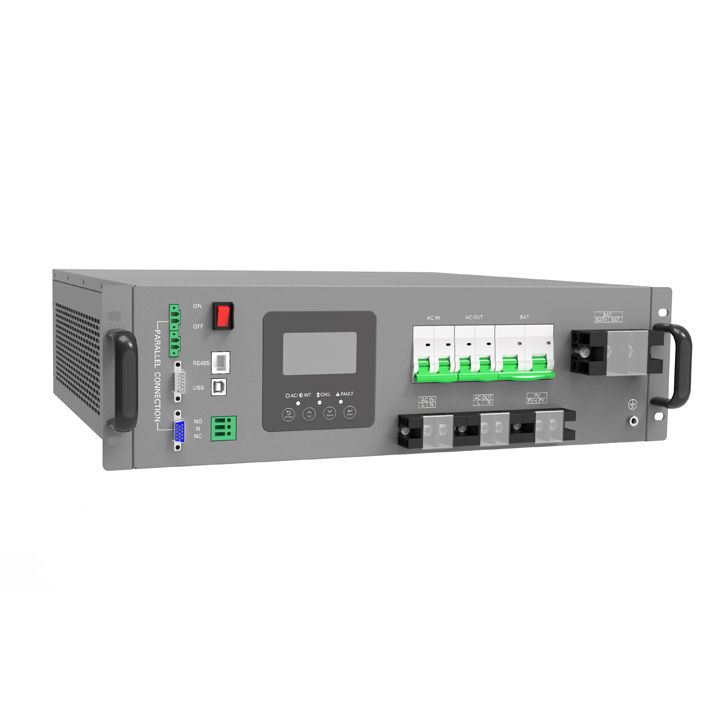

RISUNPOWER All in One ESS, 3U Type Off Grid 51.2KWH Battery 1.5kW MPPT Solar Inverter with 3U 51.2V 1000AH LiFePO4 battery
Product Features:
Safe & Reliable
Passed CE Certificate;
With All Protection (Shortcircuit, Over Voltage, Under Voltage, Over Load, Reverse Current)
Light Weight & Flexible
Support multi-parallel connection (Max 9 parallel);
Support flexible access of diesel generator;
Compatible with lead-acid and lithium-ion battery;
Light Weight and Easy Installation
Smart support multi Communication
Support RS485/RS232/CAN/USB/Wifi;
1. Advanced lithium iron phosphate technology, top grade battery control system

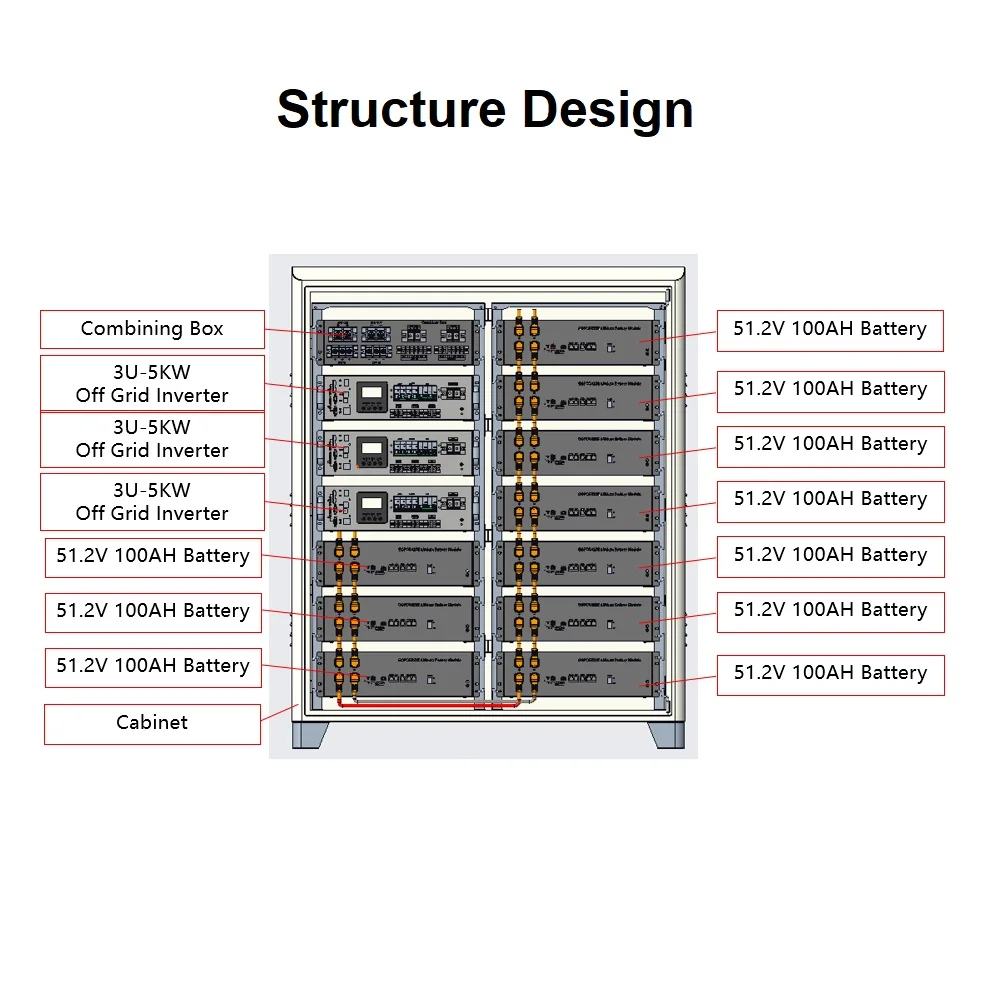

2. Modular structure which can form varieties of energy levels, small size, convenient to maintain
3. Modular design, fast transportation and installation, easy to use
4. Ten years warranty, one stop service
5. Top level electric and structure design, silence enjoyment
6. Remote control system for APP, visual data
Battery Cell Specification:
|
Prismatic Aluminum Case Cell Specification |
|||
|
No. |
Item |
Spec |
Remarks |
|
1 |
Rated Capacity |
100Ah |
|
|
2 |
Rated Voltage |
3.2V |
|
|
3 |
Working Voltage Range |
2.5-3.65V |
|
|
4 |
Standard Discharge Current |
0.5C5 |
|
|
5 |
Max Continuous Discharge Current |
1C5 |
|
|
6 |
Max Peak Discharge Current |
2.0C5 @10s |
|
|
7 |
Working Temperature |
Charge: 0℃~50℃ |
|
|
Discharge: -20℃~60℃ |
|||
|
8 |
Store Temperature |
| |
