12V 24V 100AH 200AH 300AH 400AH RV Recreational Vehicle Lithium battery LiFePO4 Battery max can connect as maximal 2S 4P
Advantage:

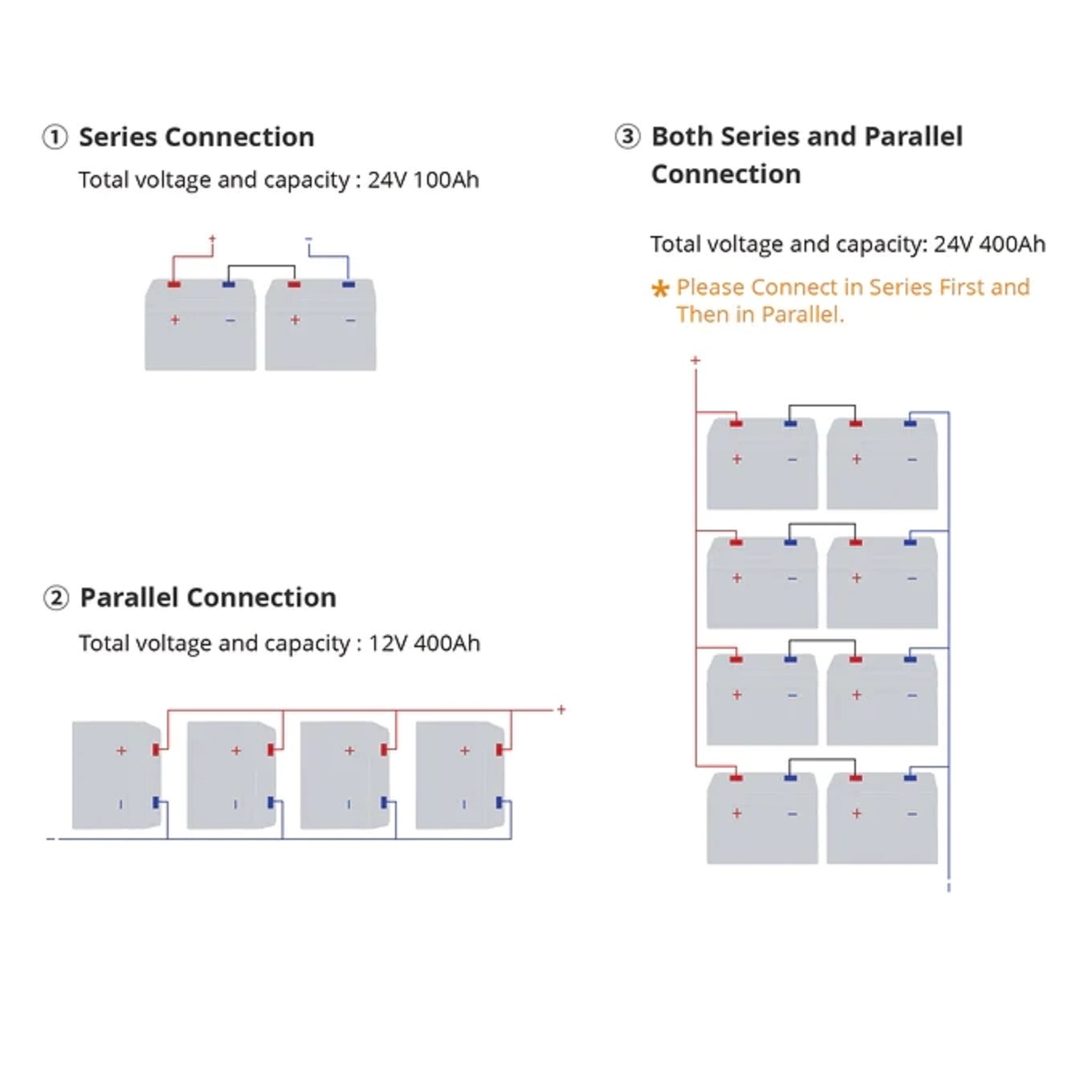

Can connect in Parallel to add capacity (Max 4P) or can connect in Series to add voltage (Max 4S)
Specification:
|
Nominal voltage |
12.8V |
|
Nominal capacity (25℃, 0.2C) |
100Ah |
|
Energy |
1280Wh |
| Load power | 1280W |
|
Weight |
23.60 lbs / 10.7kg |
|

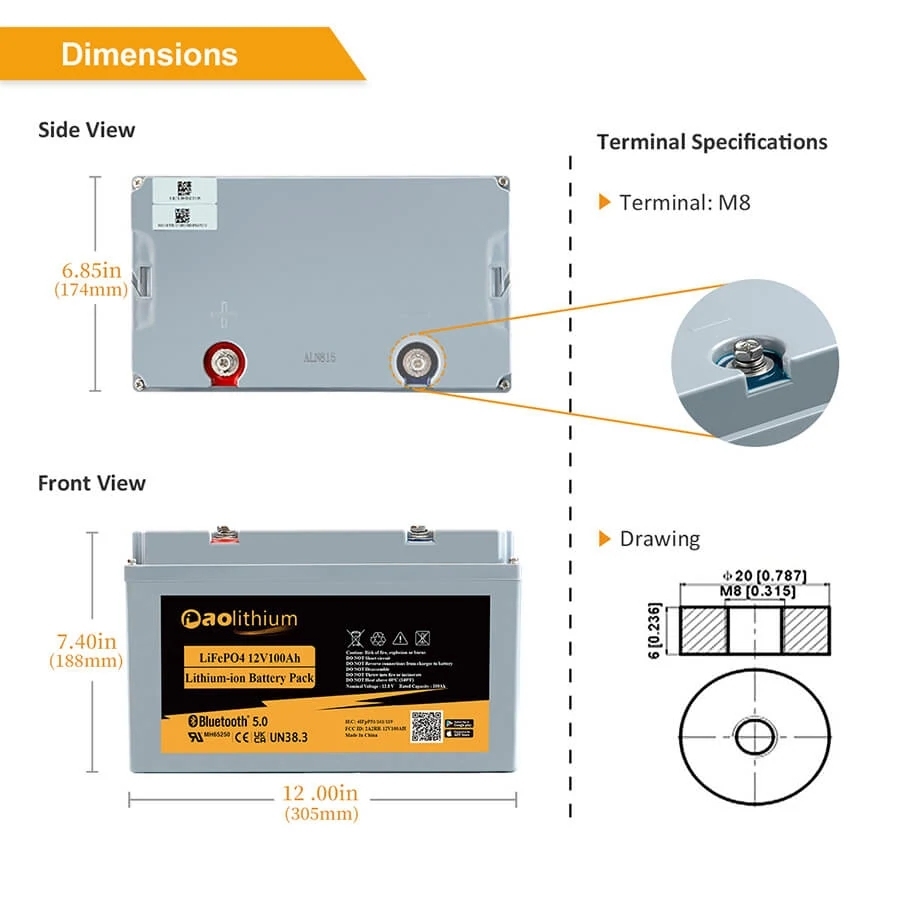

Dimen L×W×H |
12.00x6.85x7.40 in / 305x174x188 mm |
|
Terminal |
M8 |
|
Cycle life (+20℃ 0.2C 90%DOD) |
≥4000 cycles |
|
Voltage window |
10 - 14.6V |
|
Charge voltage |
14.6V |
|
Max. continuous discharge current |
100A |
|
Max. continuous charge current |
1C (100A), @15℃ |
|
Max. pulse discharge current(long pulse) |
2C (200A)<3min |
| Max. pulse discharge current(short pulse) | 3C (300A)<5s, @ T<50℃ |
|
Operating temperature (charge) |
0 °C~55°C / 32℉~131℉ |
|
Operating temperature (discharge) |
-20°C~ 60°C / -4℉~140℉ |
|
Storage temperature |
-20°C~ 35°C / -4℉~95℉ |
|
Safety standard |
ISO9001/UL/CE/UKCA/BT BQB/UN38.3/MSDS. |
Revolutionary Battery Pack Technology
1. The battery uses practical-grade case made of ABS material which is hard and non-flammable;
2. Adopting laser welding process of automotive-grade power battery for cell busbar, with characteristics of energy concentration, high welding efficiency, large welding seam aspect ratio, and welding High strength, small heat input, small heat affected area, etc;
3. With high-quality and customized thick copper bus connections inside to ensure the over-current capability and greatly reduce the possibility of cross-polarity;
4. Adopting advanced fixing plate and bolt technology to ensure the stability of the battery.
Long Runtime
Our 12 Volt 100Ah Lithium LiFePO4 battery has a minimum of 4000 cycles time, and the design life is up to 10 years. Even after 4,000 cycles @ 90%DOD, they’re still capable of producing 70% of rated capacity. While lead-acid batteries only left 50% rated capacity after they hit their 300 to 500 cycles life.
Portable and Powerful
This 12Volt 100 amp hour lithium battery is only a third of the weight of lead acid. It’s the perfect combination of size and capacity, lighten your load to improve handling. Perfect for many applications including, RV, marine, solar energy systems, and more.
Environmental Friendly
Our 100ah lithium leisure LiFePO4 battery can be stored practically wherever they fit. They don't give off toxic fumes of any kind - no fumes, no venting. But Lead acid batteries need to be stored in an outside compartment with vents because they give off toxic vapors, which makes it difficult to store them properly.
Widely Used

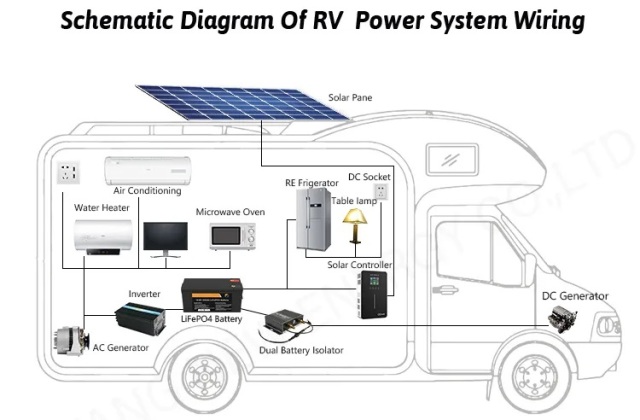

Our 12 volt 100ah lithium battery can handle just about any deep cycle applications, such as RV, van, camper, marine, camping, off-grid, solar home, UPS backup, golf cart.
