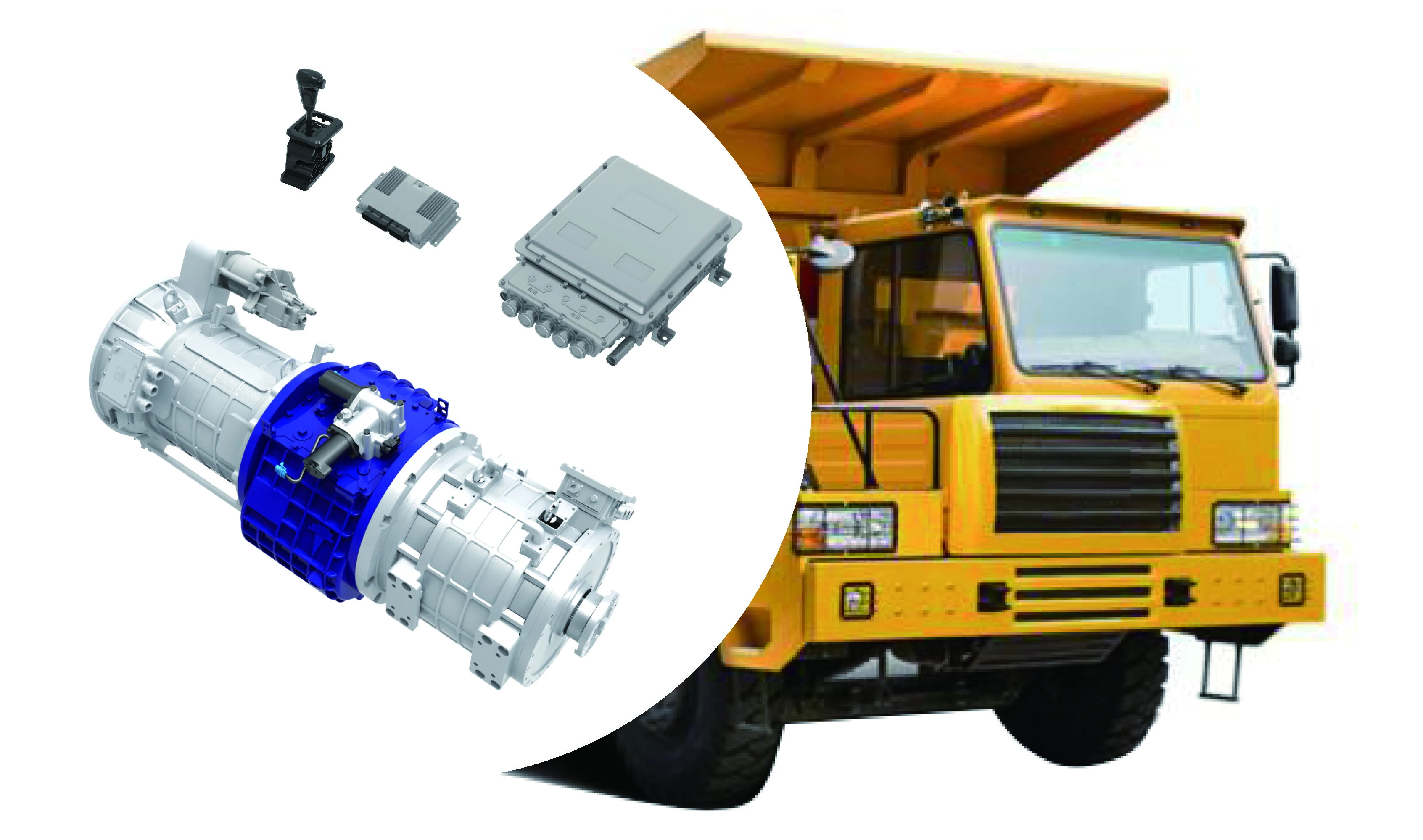

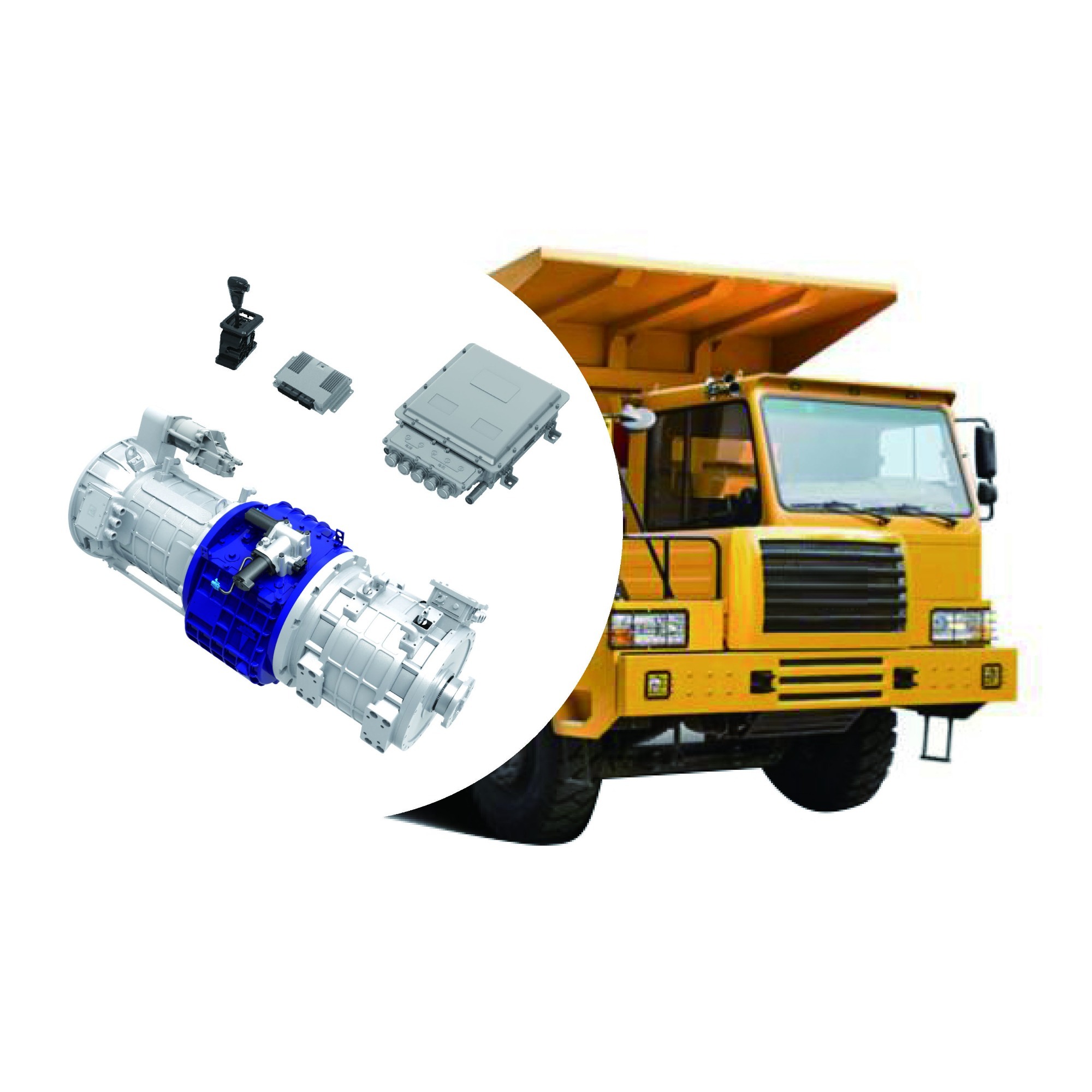

Full Hybrid PHEV Dual motor 170kW +180kW Electric Mining Truck or Special Truck use Pure Electric Drive System for 90-120 tons Truck

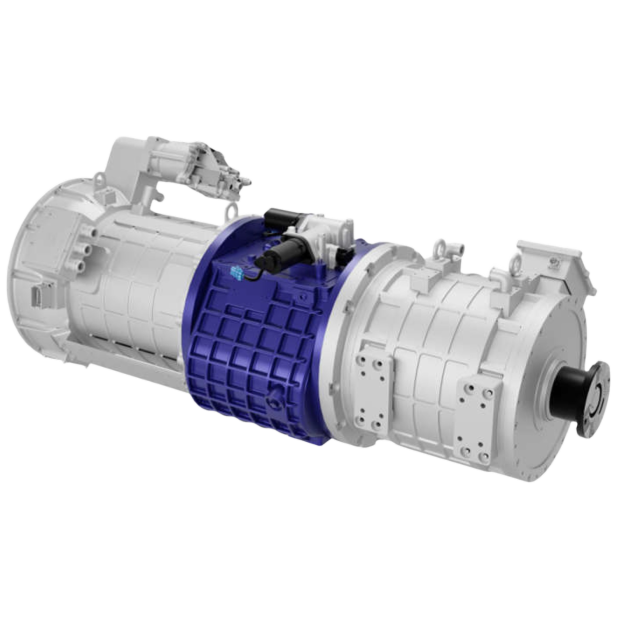

Hybrid Front and Rear Dual Motor drive
Integrated four-speed transmission
Suitable Vehicle: 90-120 Tons Electric Mining Truck
Specification:
| Electric Drive System | 90-120 Tons Hybrid Electric Drive System | ||
| Suitable Vehicle | Mining Truck | ||
| Motor Specification | Rated/Peak Power (kW) | Main Motor: 170/250 |
Auxiliary Motor: 180/250 |
| Rated/Peak Torque (N.m) | Main Motor: 1100/2500 |
Auxiliary Motor: 955/2800 |
|
| Rated/Max Rotation (rpm) | Main Motor: 1475/2800 |
Auxiliary Motor: 2000/2600 |
|
| Transmission parameters | Max Input Torque(N.m) | 2500 | |
| Speed Ratio | 5.53/3.05/1.66/1 | ||
| Power Takeoff | EZF680 (Optional) | ||

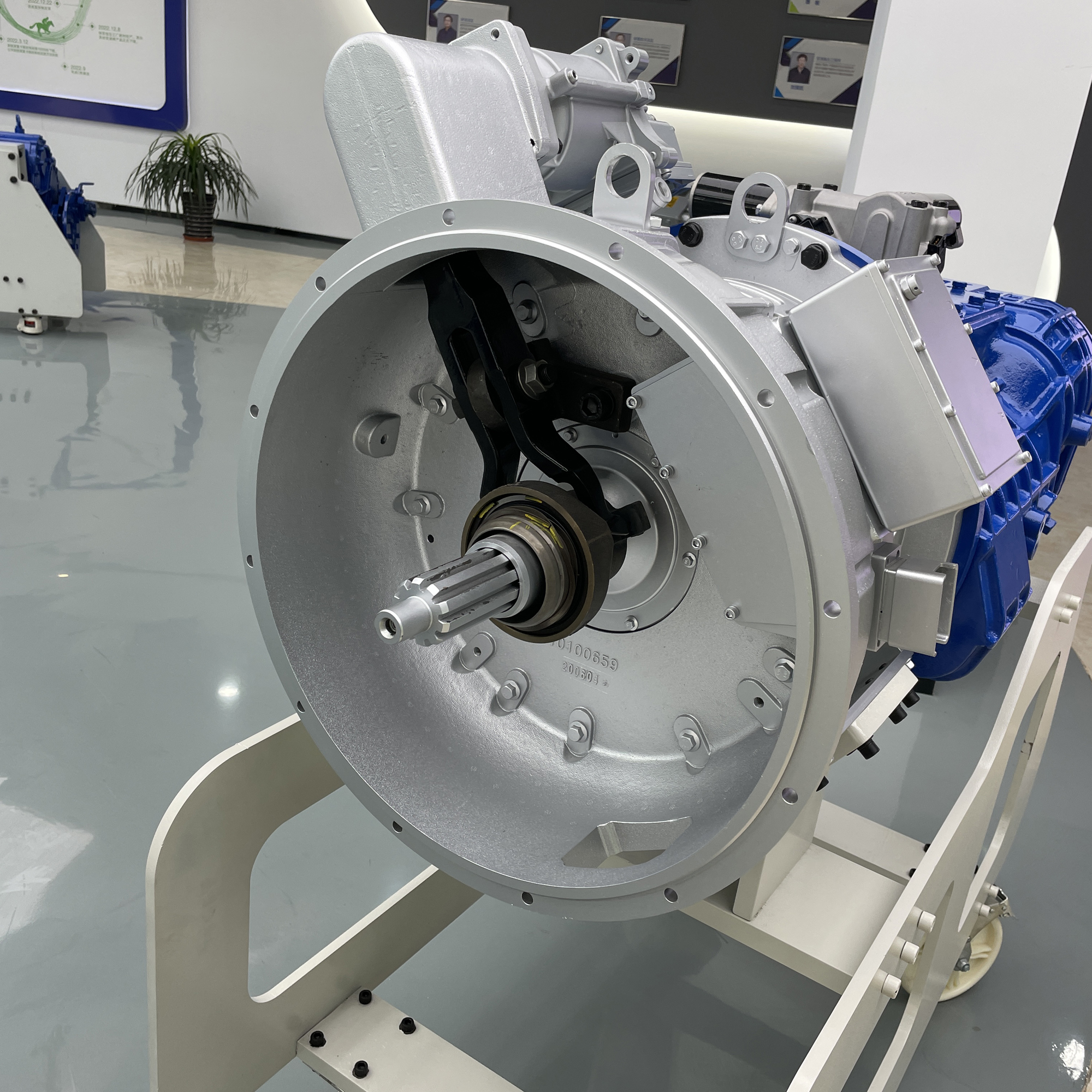

| Power Assembly System Specification | Clutch Housing | SAE 1# Housing | |
| Clutch Disengagement Method | Electropneumatic Disengagement (ACA) | ||
| Total Weight: (kg) | <=850 | ||
| Size: L×W×H(mm) | 1700×695×768 (Include Power Takeoff) | ||
| Max Output Torque (N.m) | 16625 | ||
| Vehicle power performance | Max Cruise Speed (km/h) | >=60 | |
| Climbing Slope (%) | >=30 | ||
