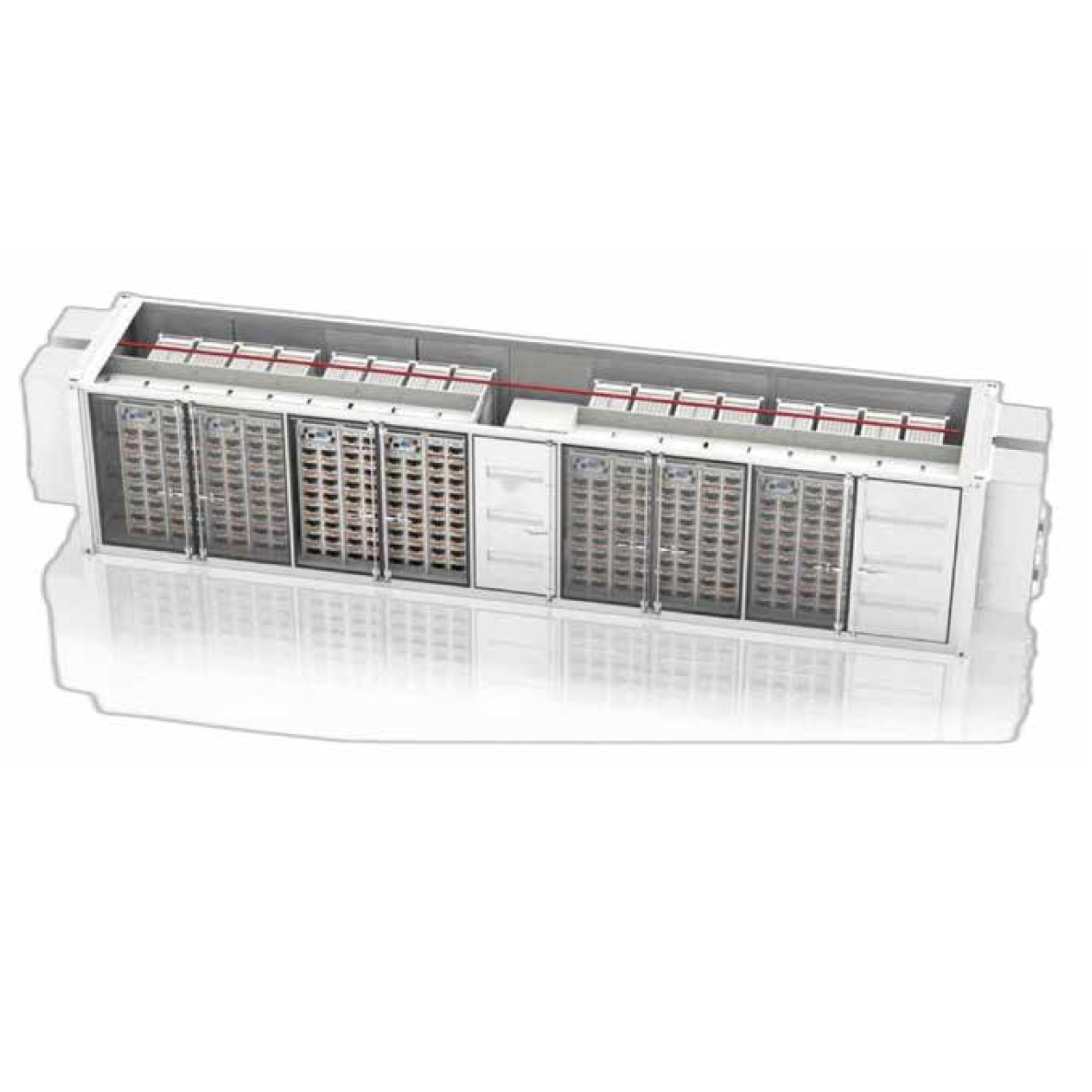

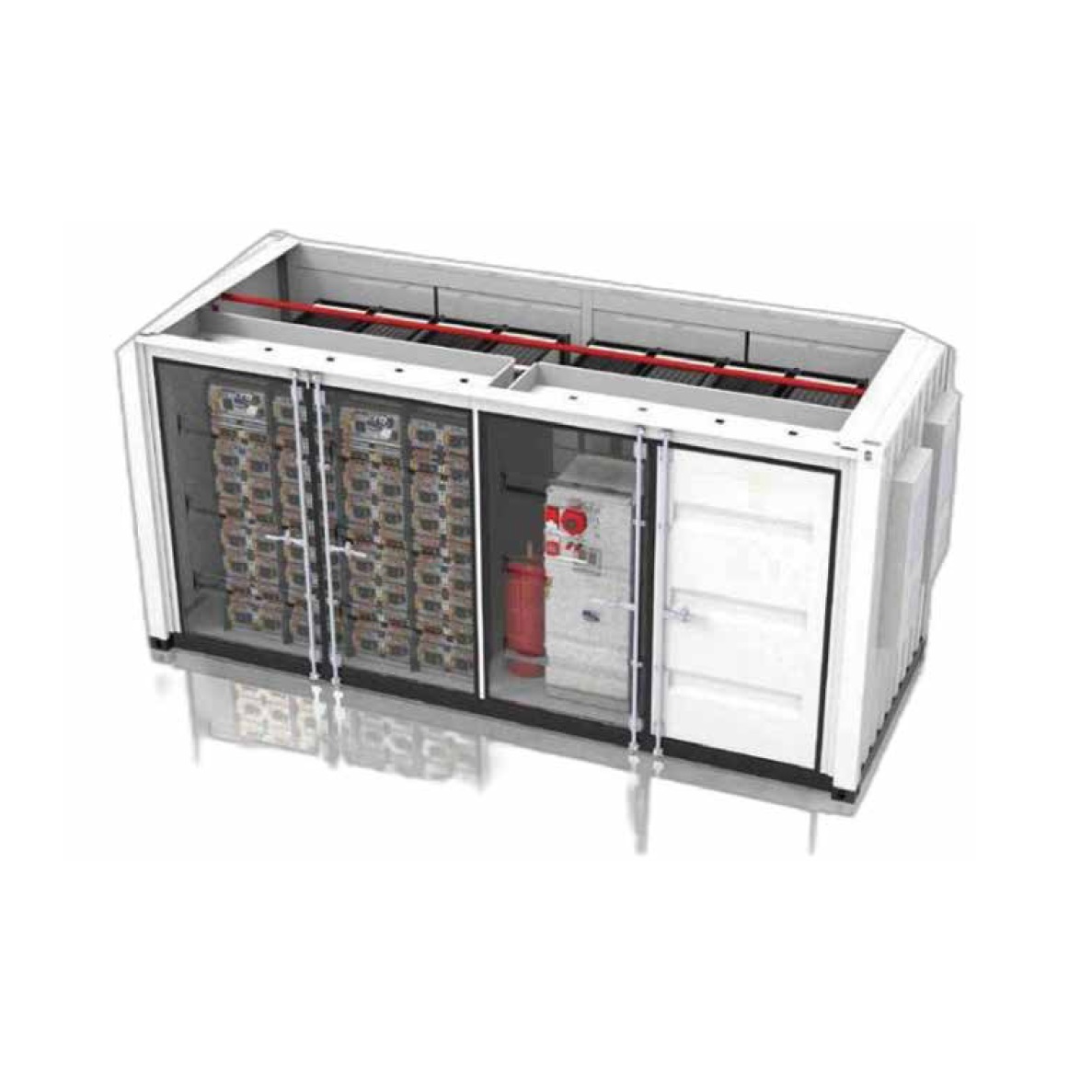

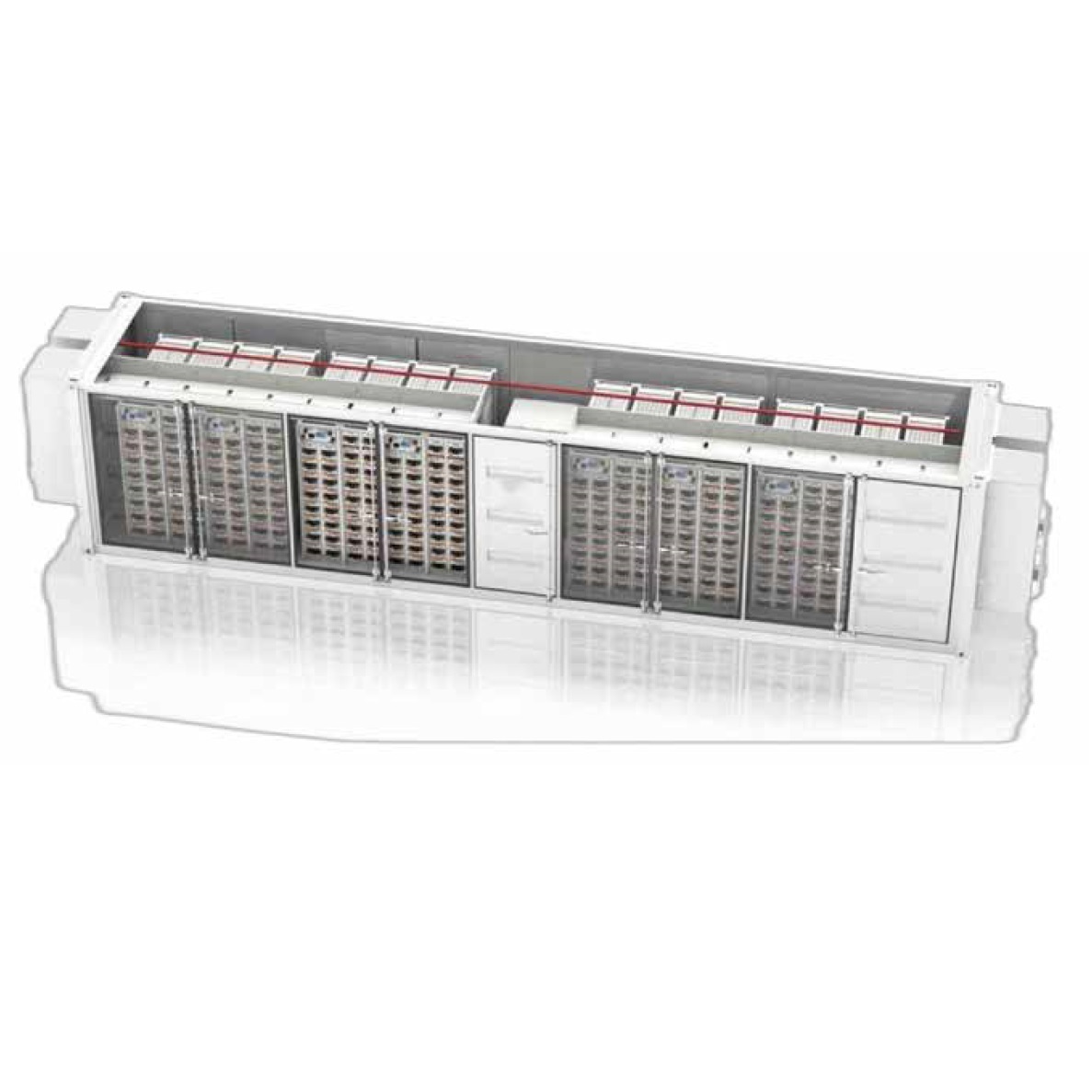

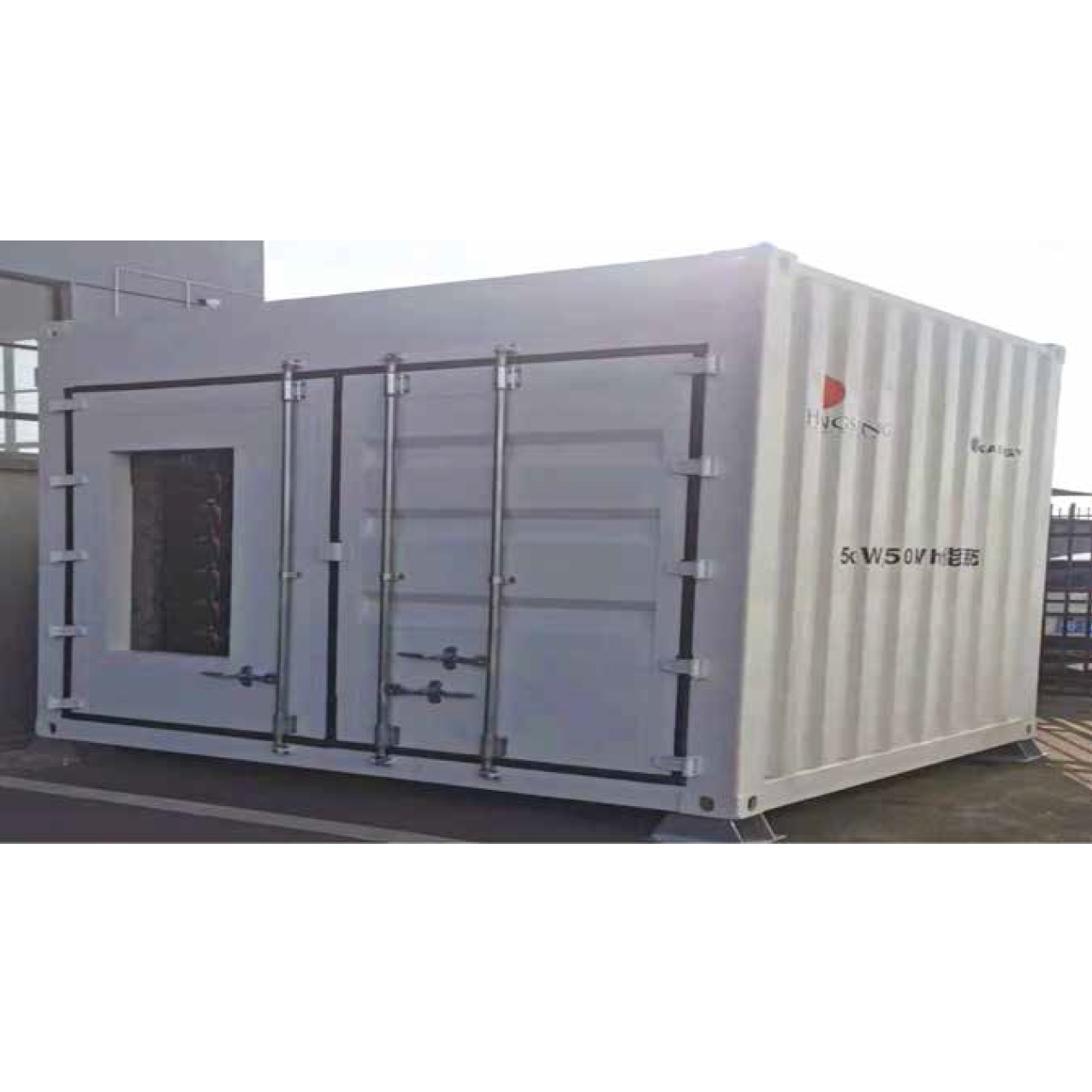

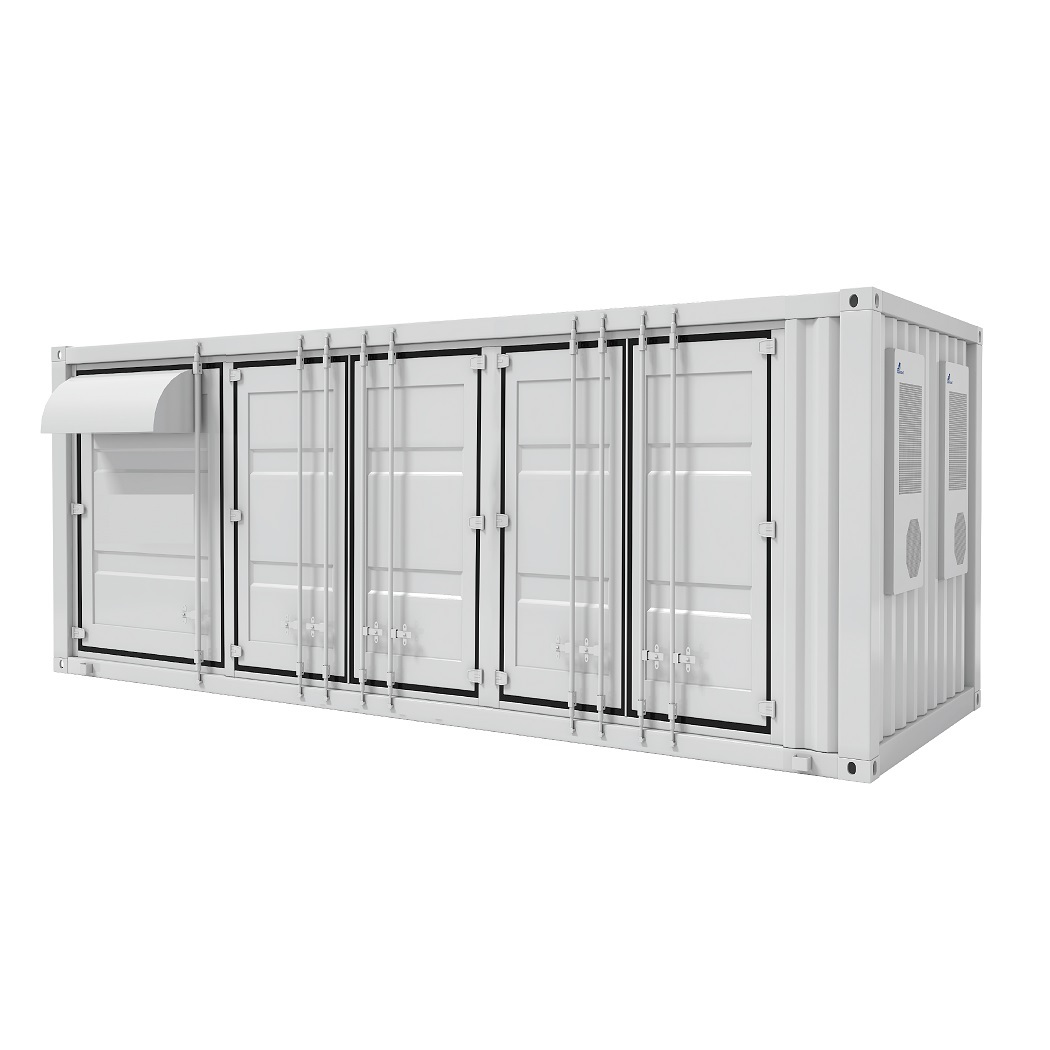

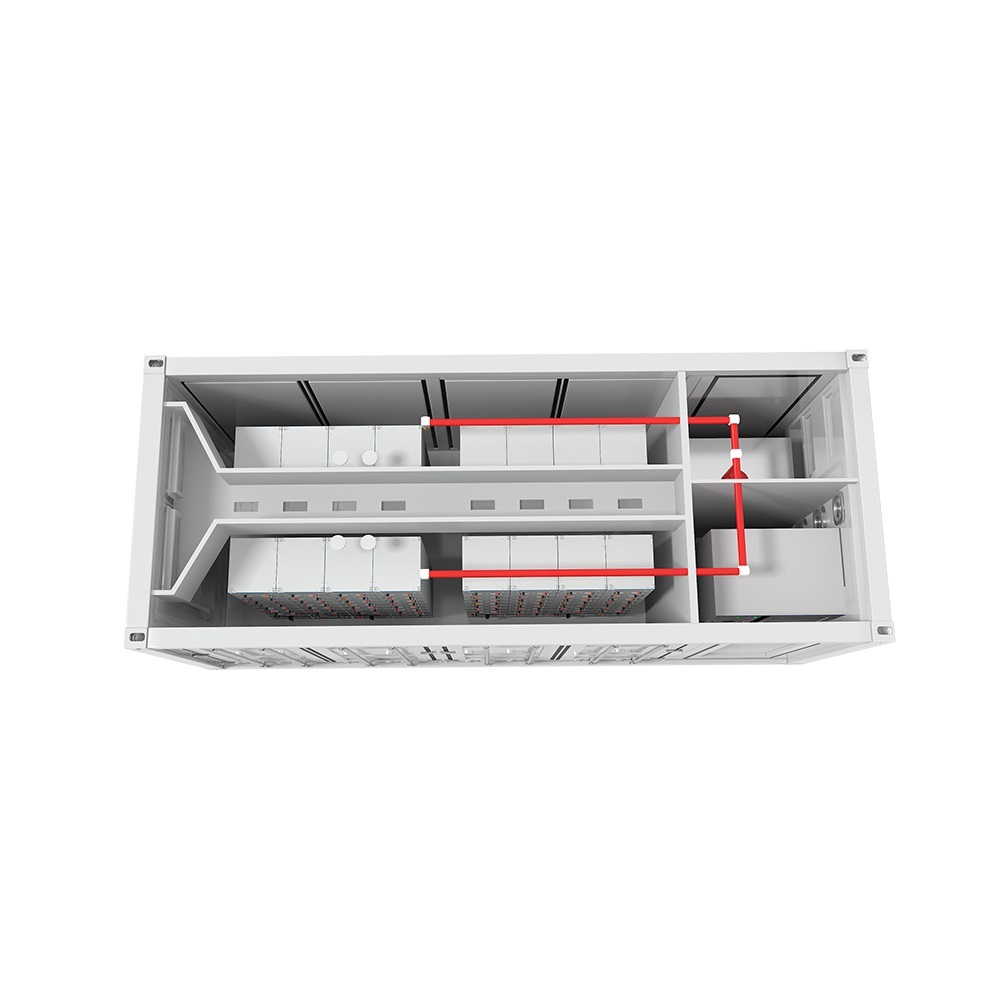

750-1500kWh Power 25 feet Container Industrial Energy Storage System LiFePO4 Lithium Battery Modular design Container Power Storage Liquid Cooling
We provide high security and high reliability C&I Energy storage system solution, one-stop integrated battery pack, PCS Control system, fire control system, air conditioning system, monitoring system, Coordinate the efficient operation of each component through control system, absorption and Release energy.
Characteristics
Fearures & Advantages:
1. Modular design: Easy for transportation, Easy for installation, Easy for maintenance;
2. Flexible applications: PCS offers a variety of models, Configurable battery capacity, optional application scenarios;
3. Specialties: Virtual synchronous motor technology is more suitable for microgrid applications, Fast response speed, immediately support weak power grid, Supporting multiple off-grid drooping parallel
Product Specifications:
BESS Unit Parameters
| Technical Parameters | |
| Battery Parameters | |
| Battery Cell | 3.2V 280Ah |
| Total Capacity | 1548kWh |
| Battery Voltage Range | 540-788.4V |
| BMS Communication | RS485，Ethernet |
| BMS Protocol | Modbus RTU/TCP |
| AC Parameters | |
| Rated Power | 500+250kVA |
| Max. Power | 550+275kVA |
| THDi | ＜3%（at rated power） |
| DC Component | ＜0.5%（at rated current） |
| Grid voltage range | 400Vac |
| Power factor/adjustable range | >0.99（Rated output power）/0.8（leading）~0.8（lagging） |
| Rated Frequency | 50Hz |
| Frequency Range | 45~55Hz |
| Isolation | Transformer |
| System | |
| Container Size | 20GP |
| Protection Grade | IP54 |
| Operating Temperature | -30~55℃ |
| Operating humidity | 0~95%（non condensing） |
| Max. Altitude | 4000m |
| Battery Cooling | Vehicle grade liquid cooling |
| Inverter cooling | Temp. control wind cooling |
| Fire control | HFC227 and water intrusion |
| Communication Port | RS485，Ethernet |
| Protocol | Modbus RTU/TCP，IEC104 |
| Certificate | CGC/CQC |
Battery Cell Parameters
|
Item |
Parameters |
Specs |
Remark |
|
1 |
Nominal capacity |
280Ah |
2.5～3.65V |
|
2 |
Working voltage |
2.50～3.65V |
|
|
3 |
Continuous discharge rate |
0.5C |
|
|
4 |
Continuous charge rate |
0.5C |
|
|
5 |
Energy density |
165Wh/kg |
|
|
6 |
Charging temperature |
0-50℃ |
N.A |
|
7 |
Discharging temperature |
-20-55℃ |
N.A |
Battery module parameters
|
Item |
Parameters |
|
Battery cell type |
LFP |
|
Charing rate |
0.5C |
|
Discharging rate |
0.5C |
|
Connection |
1P36S |
|
Nominal cell capacity |
280Ah |
|
Rated total capacity |
32.25kWh |
|
Voltage |
115.2V |
|
Working voltage range |
90-131.4V |
|
Working temperature |
Discharging：-20℃~55℃； Charging：0℃~50℃ |
|
Dimensions (Width×Forward×Height)(mm) |
630*1060*240mm |
|
Weight |
250±5kg |
Battery cluster parameters
|
Item |
Parameters |
|
Cell type |
LFP |
|
Charging rate |
0.5C |
|
Discharging rate |
0.5C |
|
Connection |
1P192S |
|
Ah Capacity |
280Ah |
|
Nominal capacity |
193.5kWh |
|
Rated voltage |
691.2V |
|
Working voltage range |
540V~788.4V |
|
Working temperature range |
Charging：-20℃~55℃； Discharging：0℃~50℃ |
|
Dimensions (Width x forward x height) (mm) |
630* 1200* 2460mm |
|
Weight |
2580kg |
