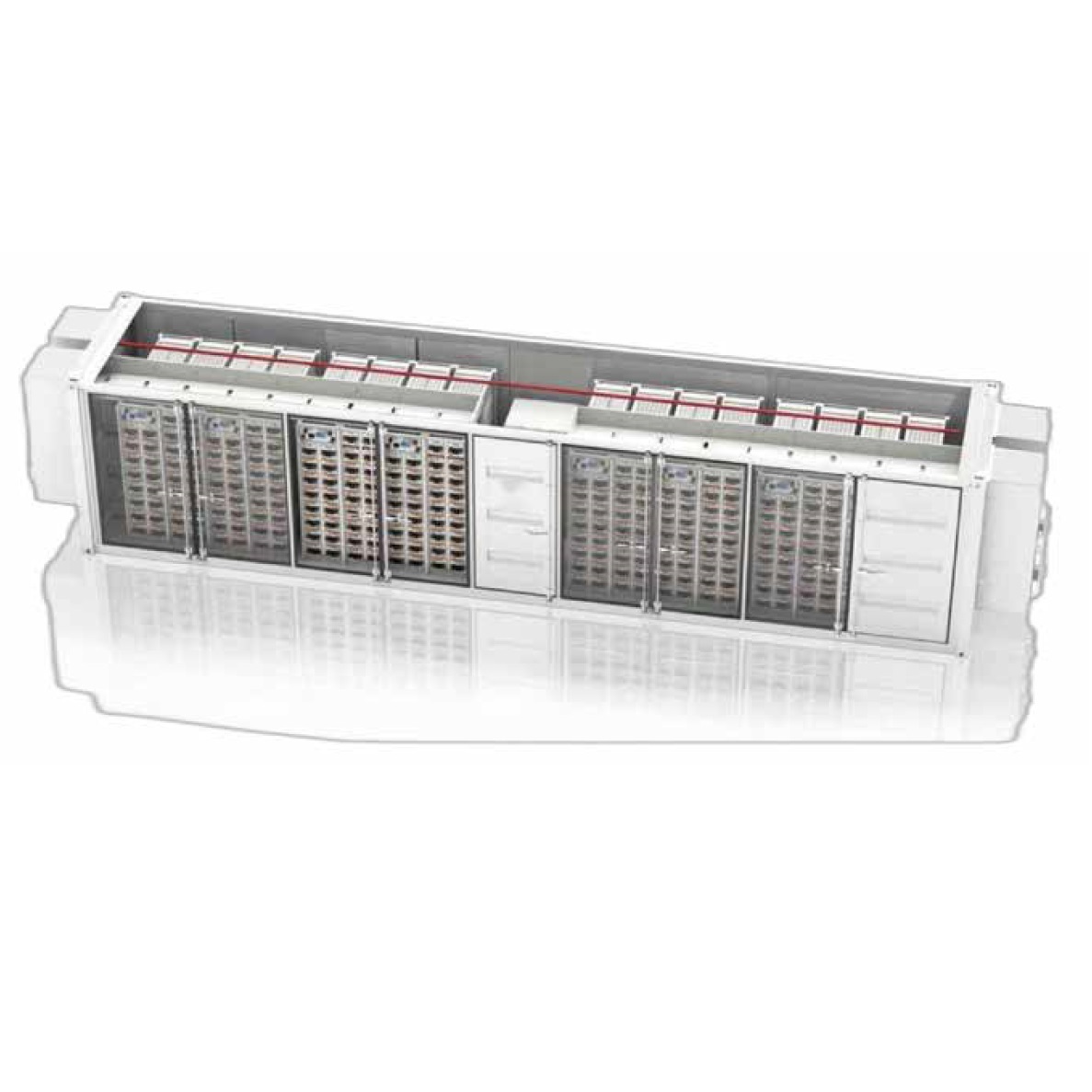

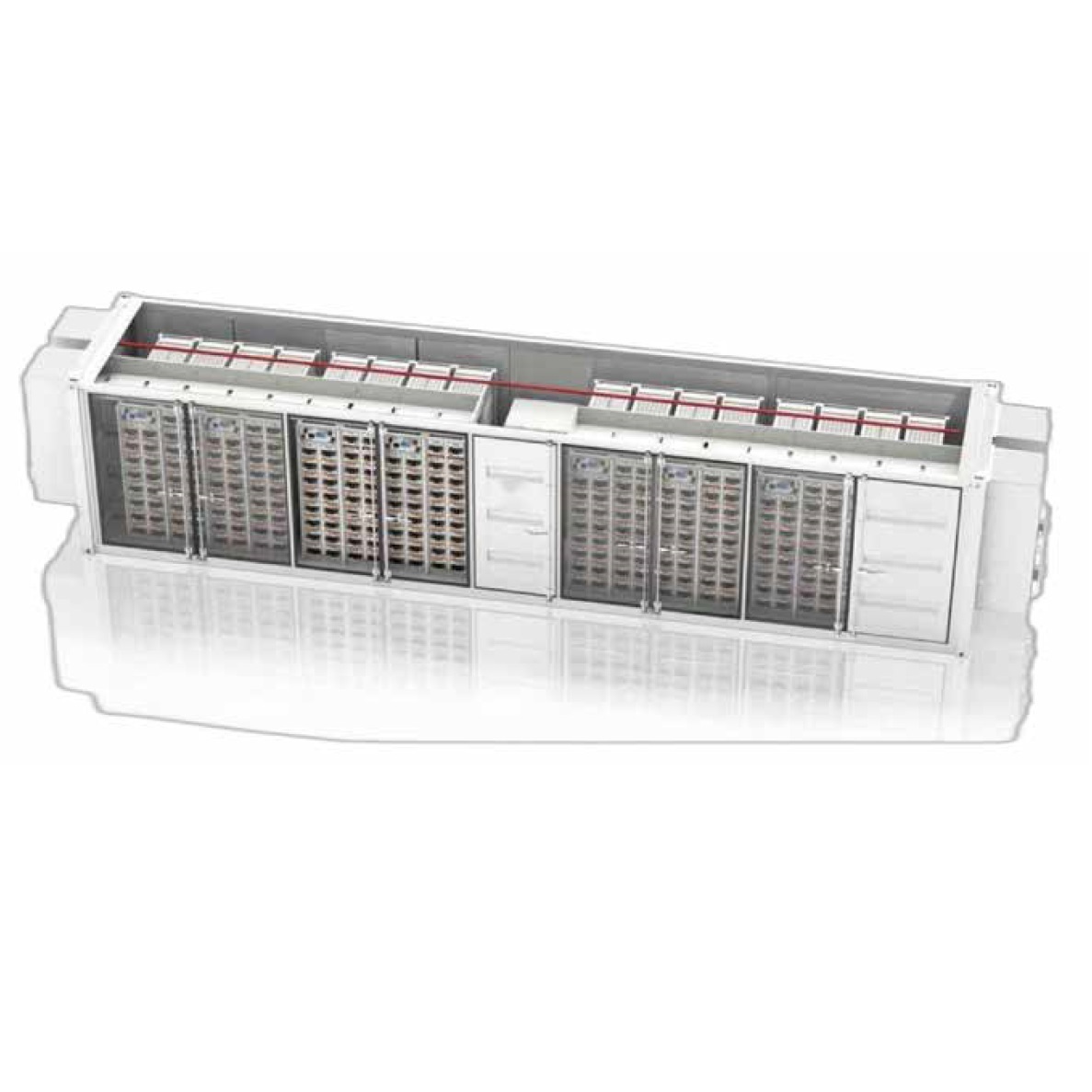

3.44MWh 3440.64kWh Power 1228.8V 2800Ah 20 feet Container Industrial Energy Storage System LiFePO4 Lithium Battery Modular design Container Power Storage Liquid Cooling
The total capacity of this product is 3440.64kWh, the nominal voltage is 1228.8VDC, and
the voltage range is 1036.8VDC-1401.6VDC. Through reasonable structural design and
electrical connections, system charging and discharging can be realized.
Characteristics
ØUse stable, high-discharge rate, long-life large-capacity LFP batteries
ØUse advanced intelligent battery management system to ensure product safety
ØUse advanced liquid cooling system thermal management method and realizes intelligent control through liquid cooling unit to control the temperature difference of battery cells in the container within 5℃.

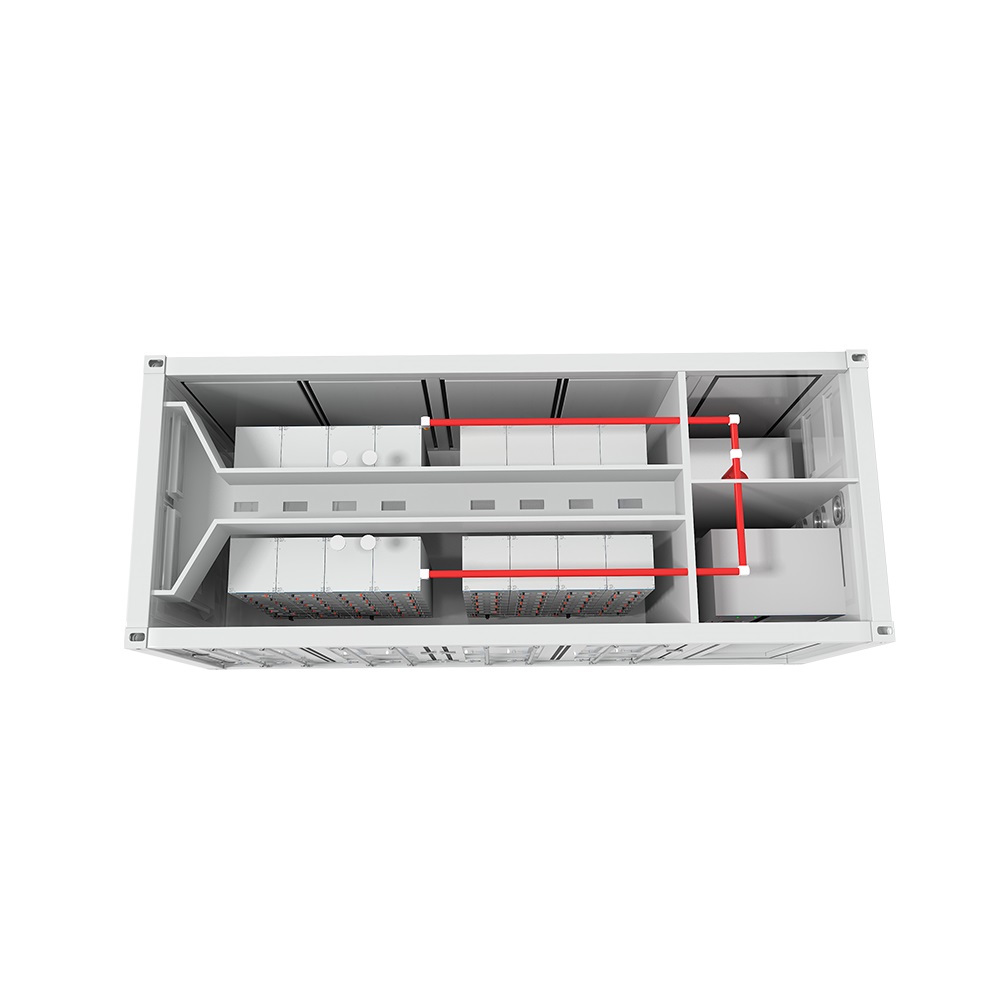

ØUsing a non-walk-in structure, the energy density per unit area can reach 233KWh/m3, which is 3 times that of the walk-in type (the energy density of the walk-in type is 74.4kWh/m3)

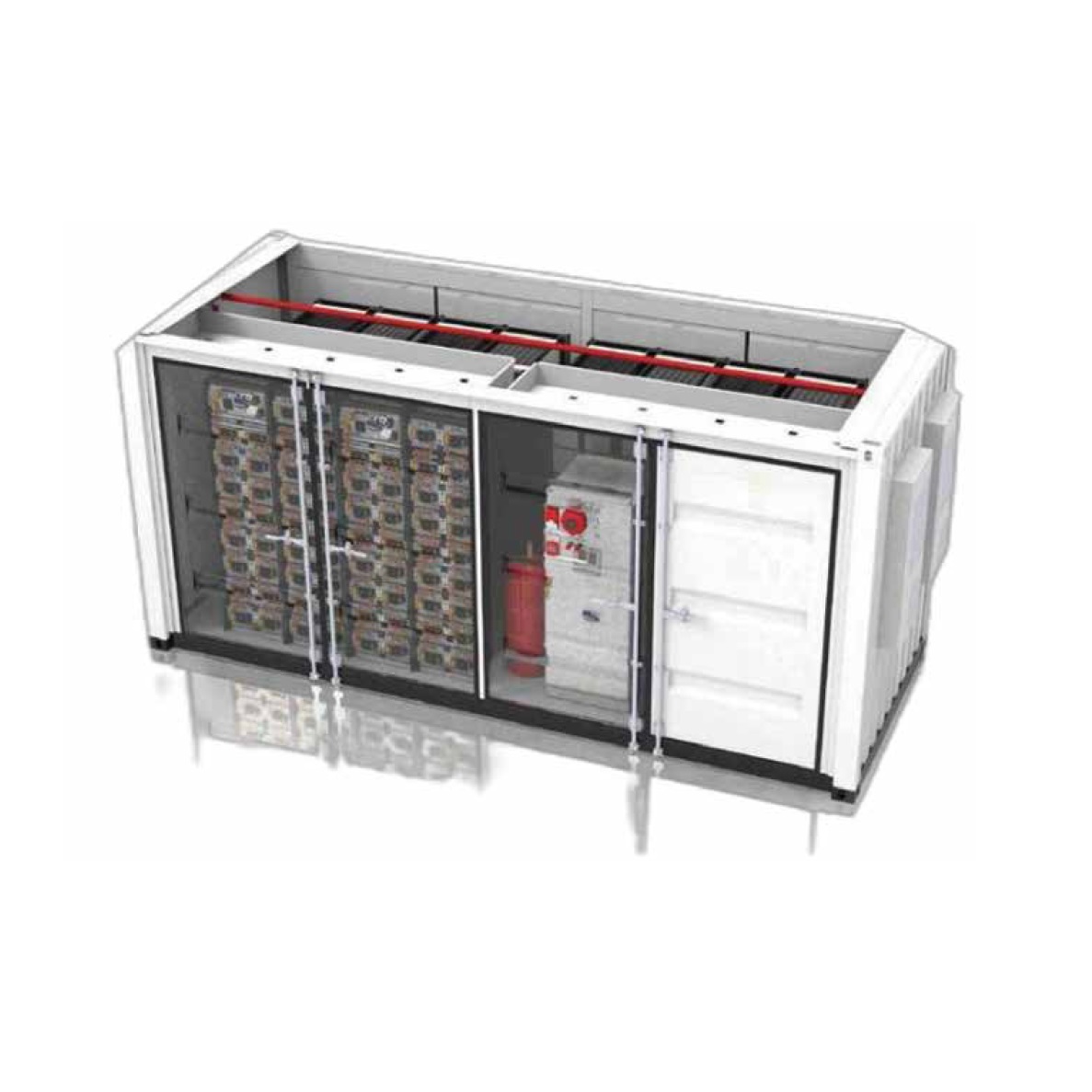

ØUse multiple fire protection systems and configure advanced automatic fire extinguishing products.
ØTemperature and humidity monitoring and access control status monitoring products are installed in the container.
ØThe product adopts integrated design and requires less on-site installation work.
ØContainers can be UN3536 certified to meet overseas shipping requirements.

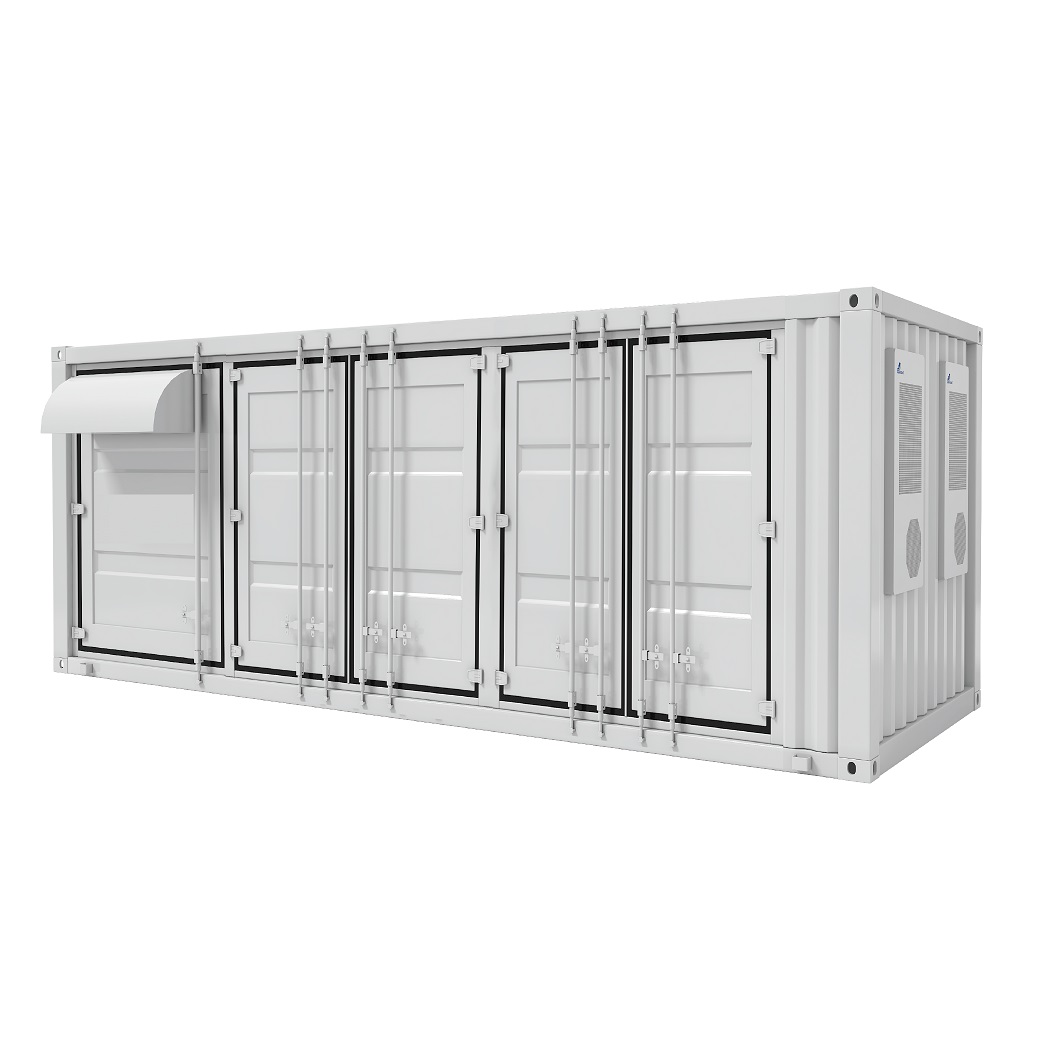

ØAdopt standardized design (20-foot container)
Fearures & Advantages:
1. Modular design: Easy for transportation, Easy for installation, Easy for maintenance;
2. Flexible applications: PCS offers a variety of models, Configurable battery capacity, optional application scenarios;
3. Specialties: Virtual synchronous motor technology is more suitable for microgrid applications, Fast response speed, immediately support weak power grid, Supporting multiple off-grid drooping parallel

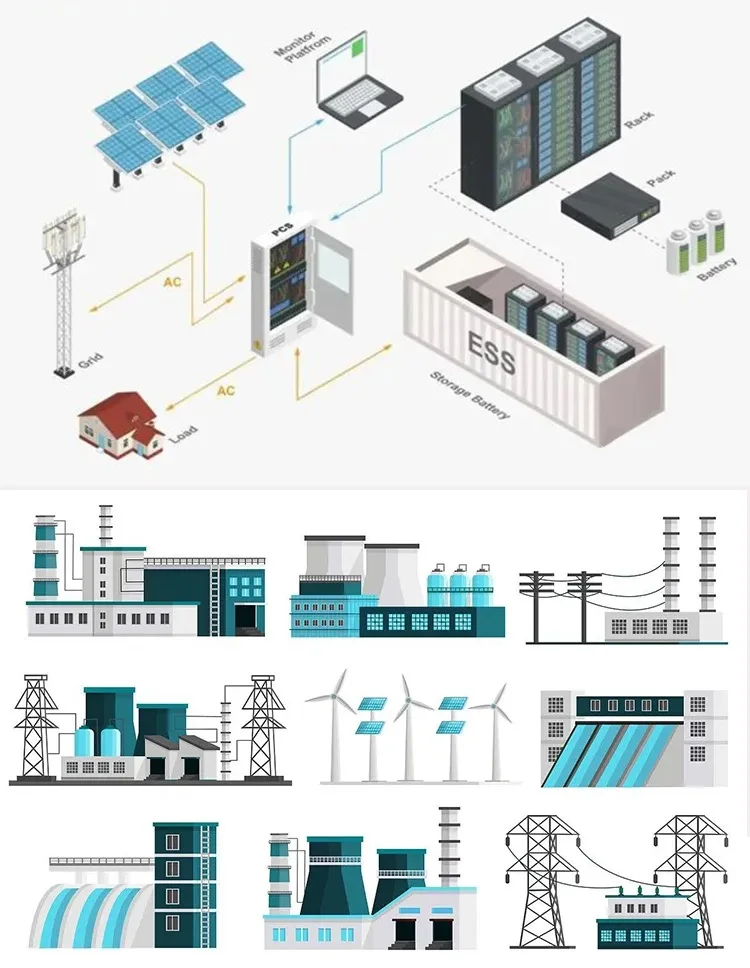

Applications:
1. PV Power Station Energy Storage
2. Wind Energy Storage
3. Thermal Power Peak Shaving
4. Grid Energy Storage
5. Industrial and Commercial Energy Storage
Product Specifications:
Energy Storage Battery System Specificaton:
|
3440.64kWh (ESS-ES3440B-LP71173207) |
|||
|
No. |
Item |
Specification |
Remark |
|
1 |
Battery Cell Type & Model |
LP71173207 |
|
|
2 |
Battery Module Type & Model |
48S1P |
|
|
3 |
Battery Cluster Type & Model |
384S1P |
|
|
4 |
Battery System Series & Parallel |
384S10P |
|
|
5 |
ESS Energy |
3440.64kWh |
|
|
6 |
Rated Voltage |
1228.8V |
|
|
7 |
Working Voltage |
1036.8V~1401.6V |
|
|
8 |
Max Charge Voltage |
1401.6V |
|
|
9 |
Rated Discharge Power |
1720.32KW(0.5P1) |
|
|
10 |
Rated Charge Power |
1720.32KW(0.5P1) |
|
|
11 |
Discharge cut-off Voltage |
1036.8V |
|
|
12 |
Working Temperature |
Charge: 15℃~30℃ |
|
|
|
|
Discharge: 15℃~30℃ |
|
|
13 |
DC Energy Conversion Efficiency |
≥93% |
@0.5P1 |
|
14 |
Container |
20 Feet Container |
|
|
15 |
Environment Temperature |
15℃-35℃ |
@15±2℃,0.5P1 (Water inlet temperature) |
|
16 |
Storage Temperature: 1 Month |
-30℃~45℃ |
When battery is in high temperature environment, self-discharges rate will increase, at the same time there will be irreversible loss of battery cell capacity. |
|
|
Storage Temperature: 6 Months |
-30℃~35℃ |
|
|
17 |
Communication Mode |
RS485/Ethernet/CAN2.0 |
|
|
18 |
Battery System Weight |
≈32t |
|
|
19 |
Balance Mode |
Passive Balance |
|
