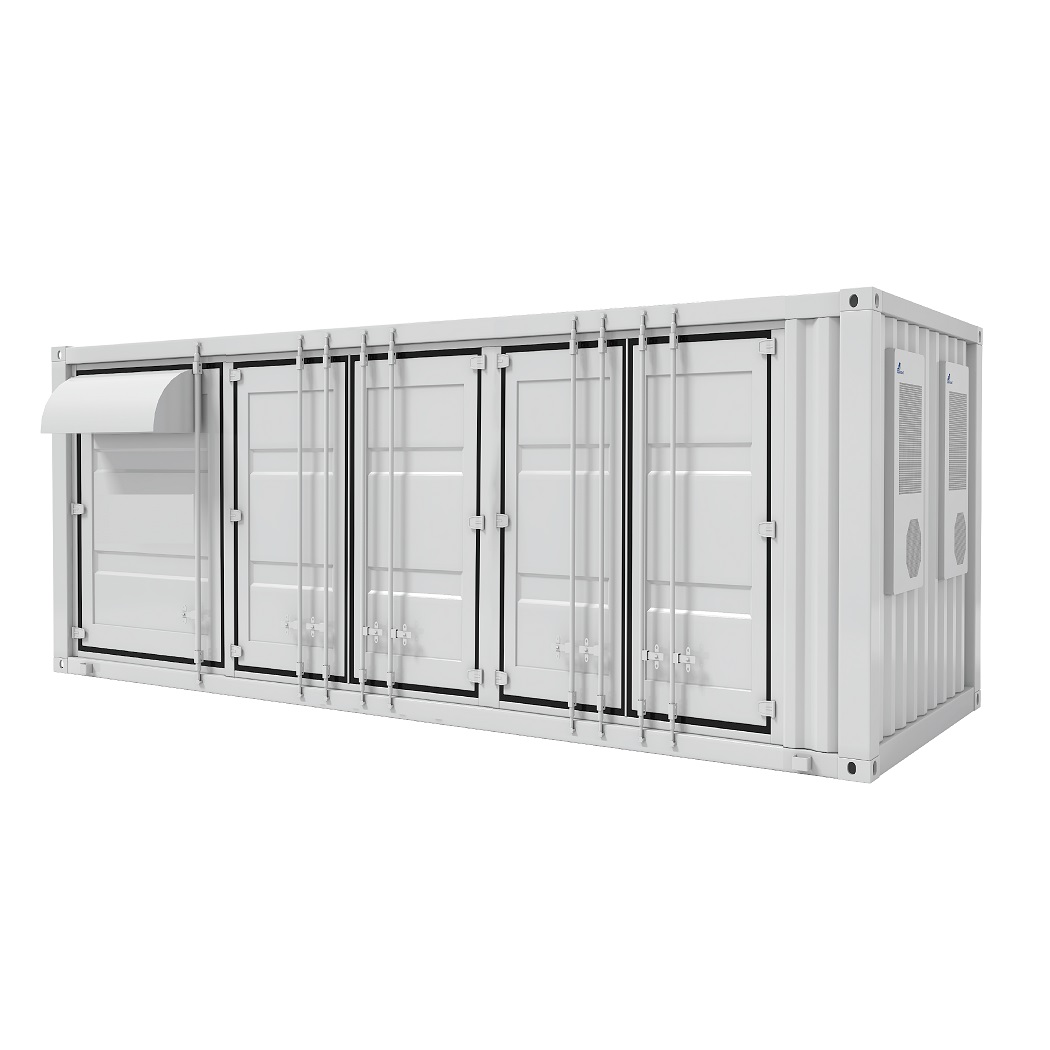

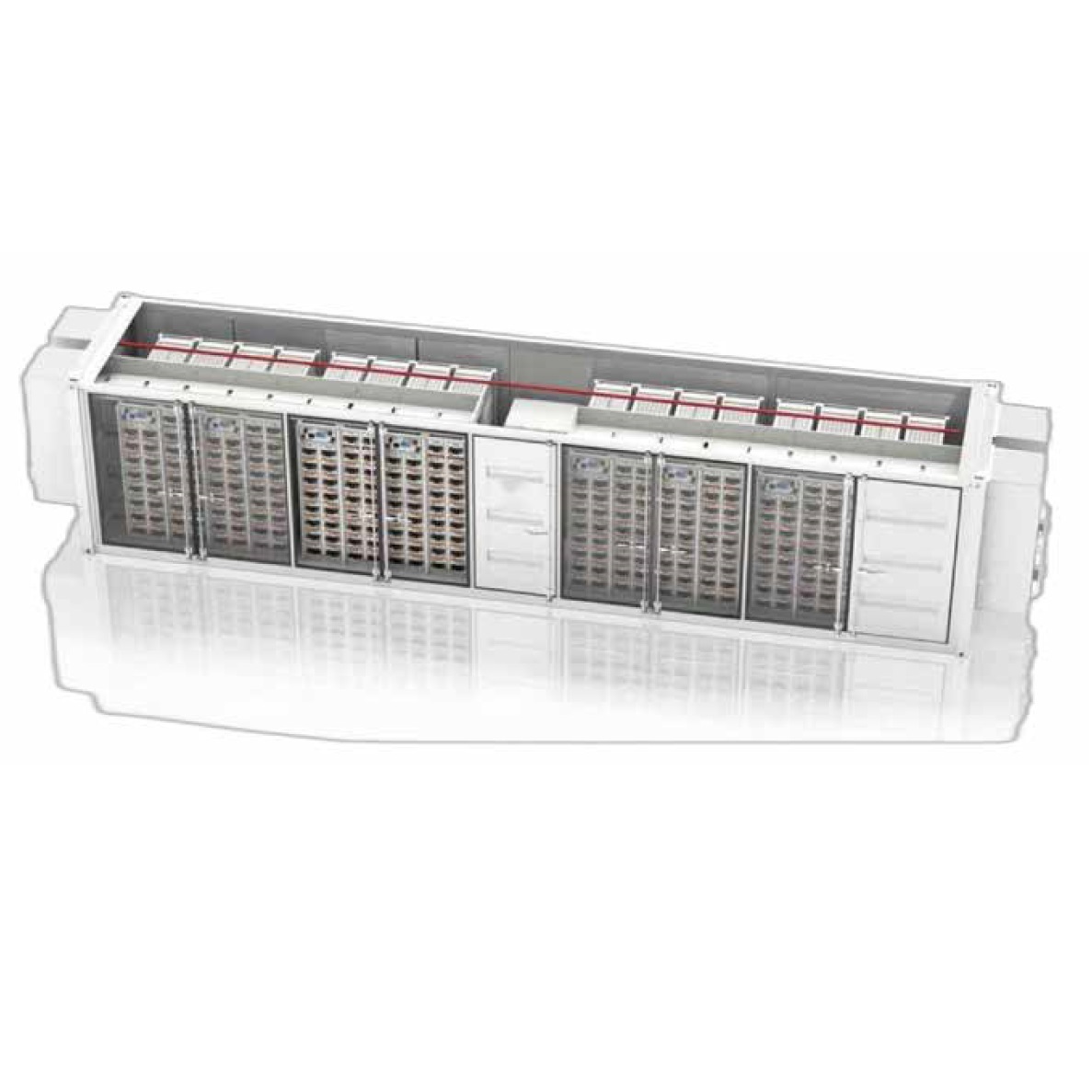

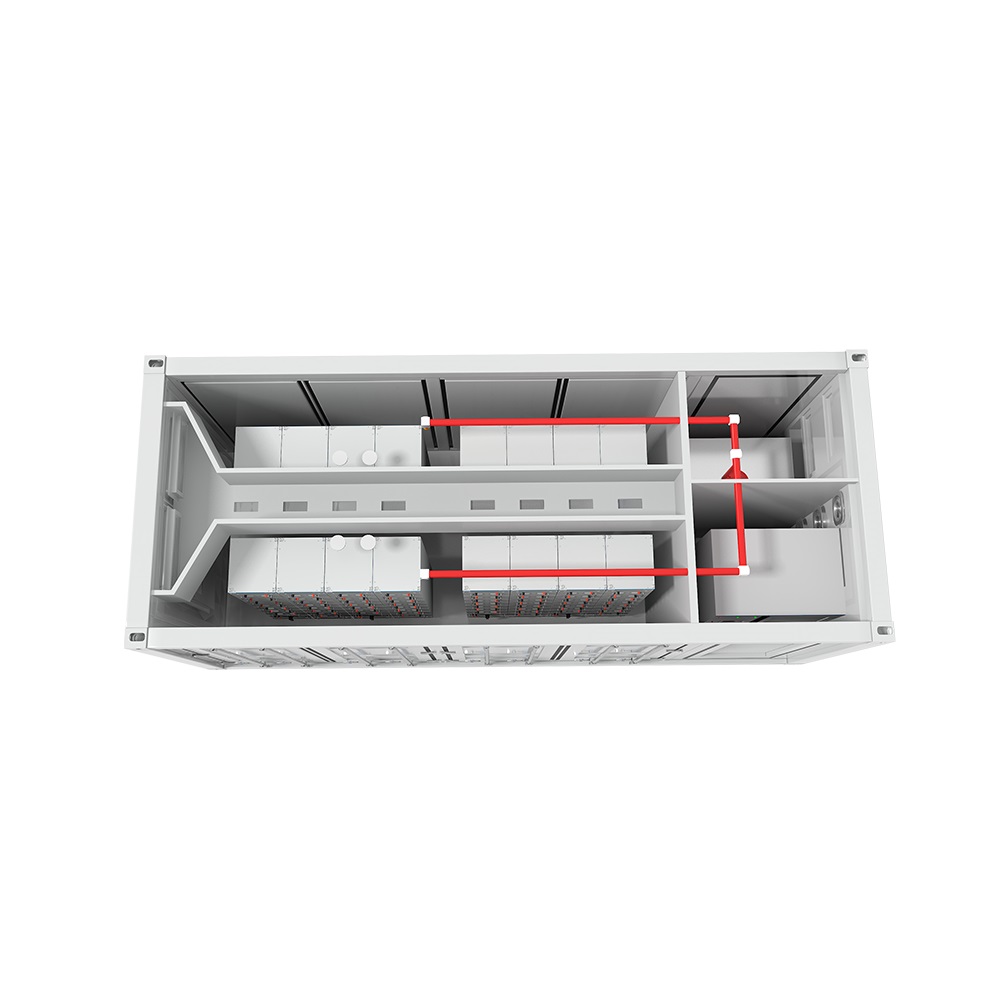

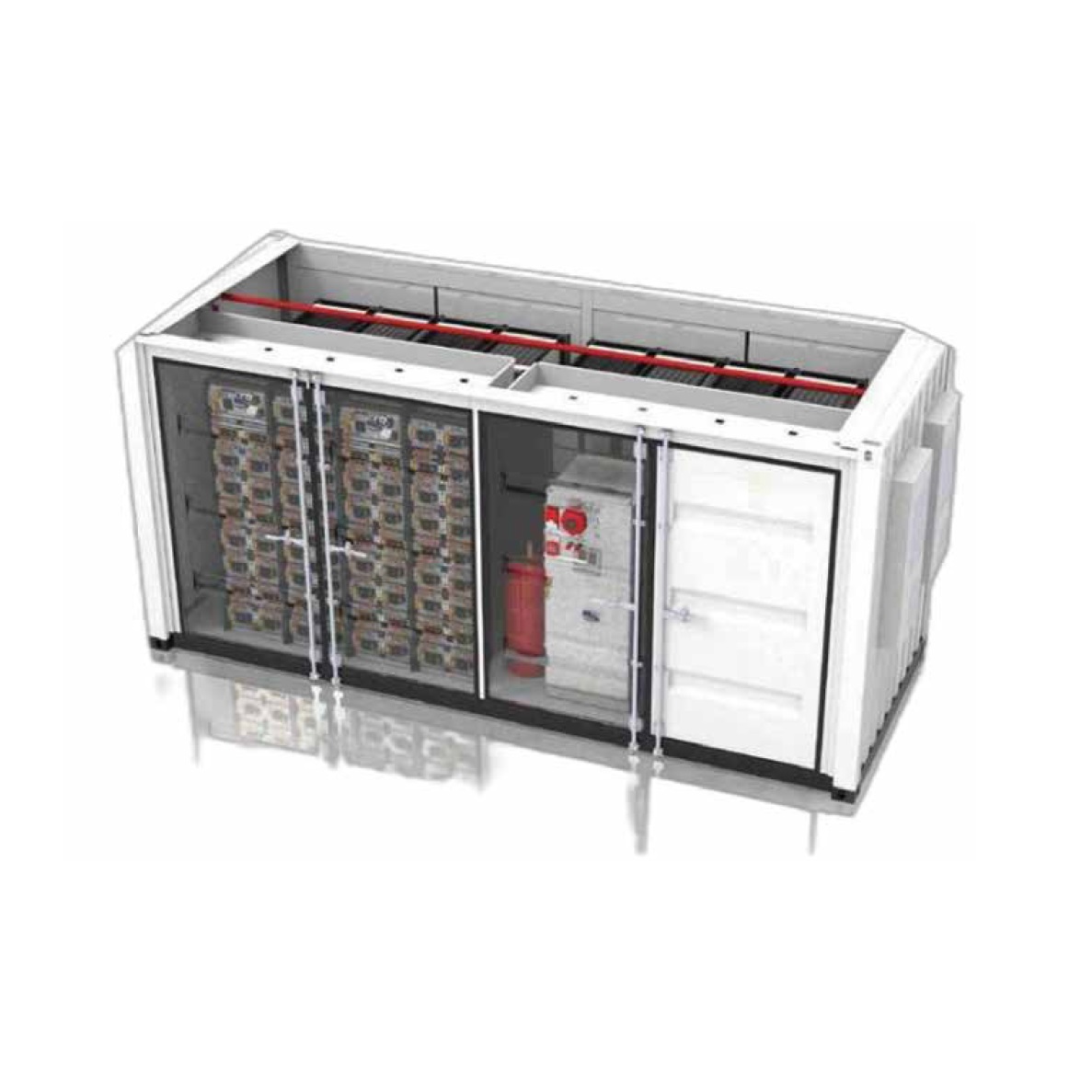

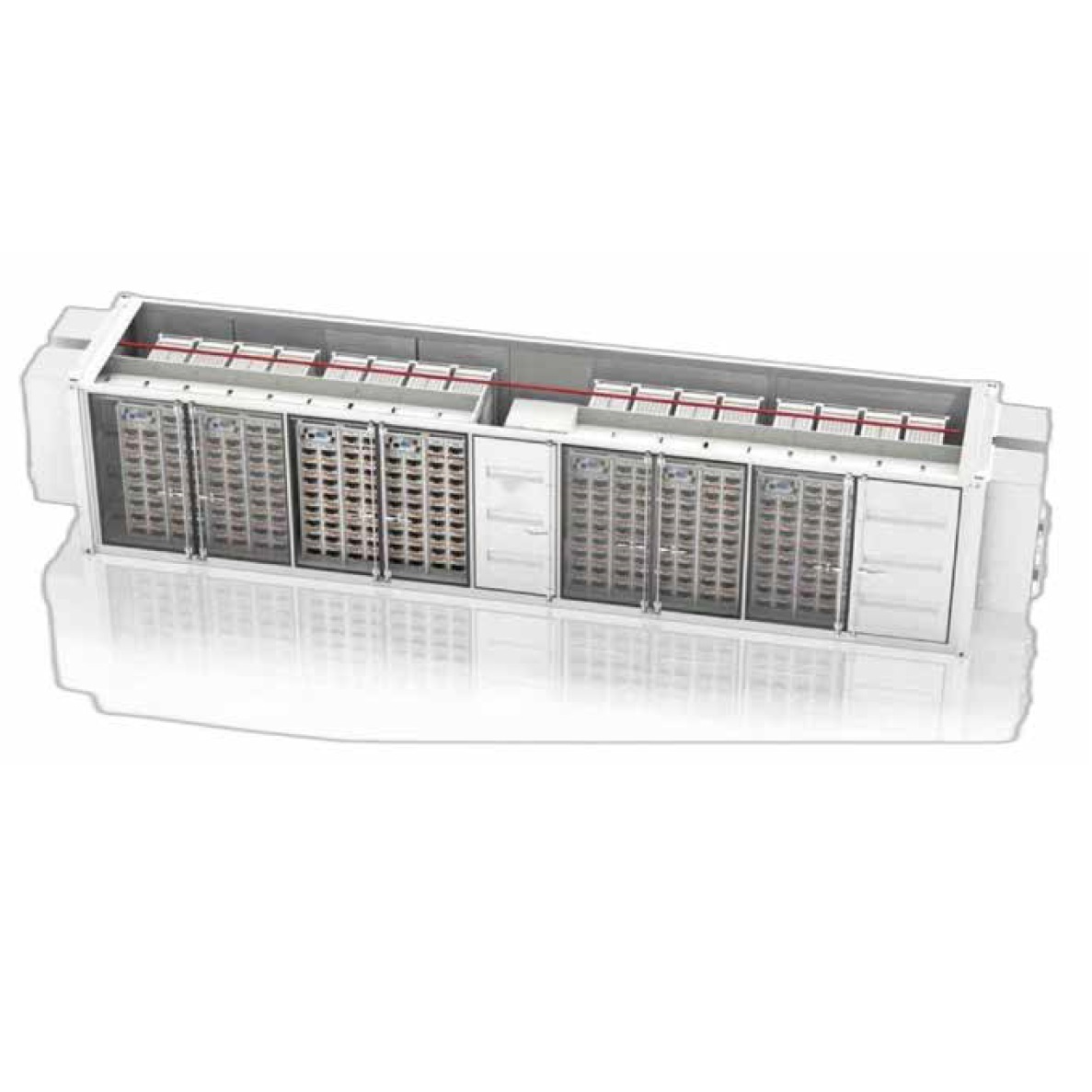

1200kWh Power Container Industrial Energy Storage System LiFePO4 Lithium Battery Modular design Container Power Storage
We provide high security and high reliability C&I Energy storage system solution, one-stop integrated battery pack, PCS Control system, fire control system, air conditioning system, monitoring system, Coordinate the efficient operation of each component through control system, absorption and Release energy.
Characteristics
Fearures & Advantages:
1. Modular design: Easy for transportation, Easy for installation, Easy for maintenance;
2. Flexible applications: PCS offers a variety of models, Configurable battery capacity, optional application scenarios;
3. Specialties: Virtual synchronous motor technology is more suitable for microgrid applications, Fast response speed, immediately support weak power grid, Supporting multiple off-grid drooping parallel
Product Specifications:
| Model | GPS1500 |
| DC Parameters | |
| Battery capacity | 1200kWh |
| Number of battery racks | 8 |
| BMS communication interface | RS485/CAN |
| DC voltage range | 600-876V |
| AC Parameters | |
| Rated AC Power | 300kW |
| Maximum AC Power | 330kW |
| Rated AC Current | 432A |
| Maximum AC Current | 480A |
| DC Component | < 0.5% |
| Current Total Harmonic Distortion | < 3% (rated power) |
| Rated grid voltage | 400V |
| Allowable grid voltage range | 320-460V |
| Rated grid frequency | 50/60Hz |
| Allowable grid frequency range | 45-55/55-65Hz |
| Power factor | 1 lead - 1 lag |
| Isolation transformer | include |
| General Parameters | |
| Protection class | IP54 |
| Fire fighting system | Include |
| Run time (full power) | 4 hours |
| Operating temperature range | -20-55℃ |
| Dimension (LxWxH) | 6058x2438x2896mm |
| Weight | 17000kgs |
| PCS communication method | RS485, CAN, TCP/IP |
| PCS communication protocol | Modbus RTU, Modbus TCP, ICE104 |
| PCS unit cooling method | Temperature controlled forced air cooling |
| Battery cooling method | Air conditioning cooling |
| Highest altitude | 4500m (For >3000m, require derating) |
|
