Integrated four-speed transmission

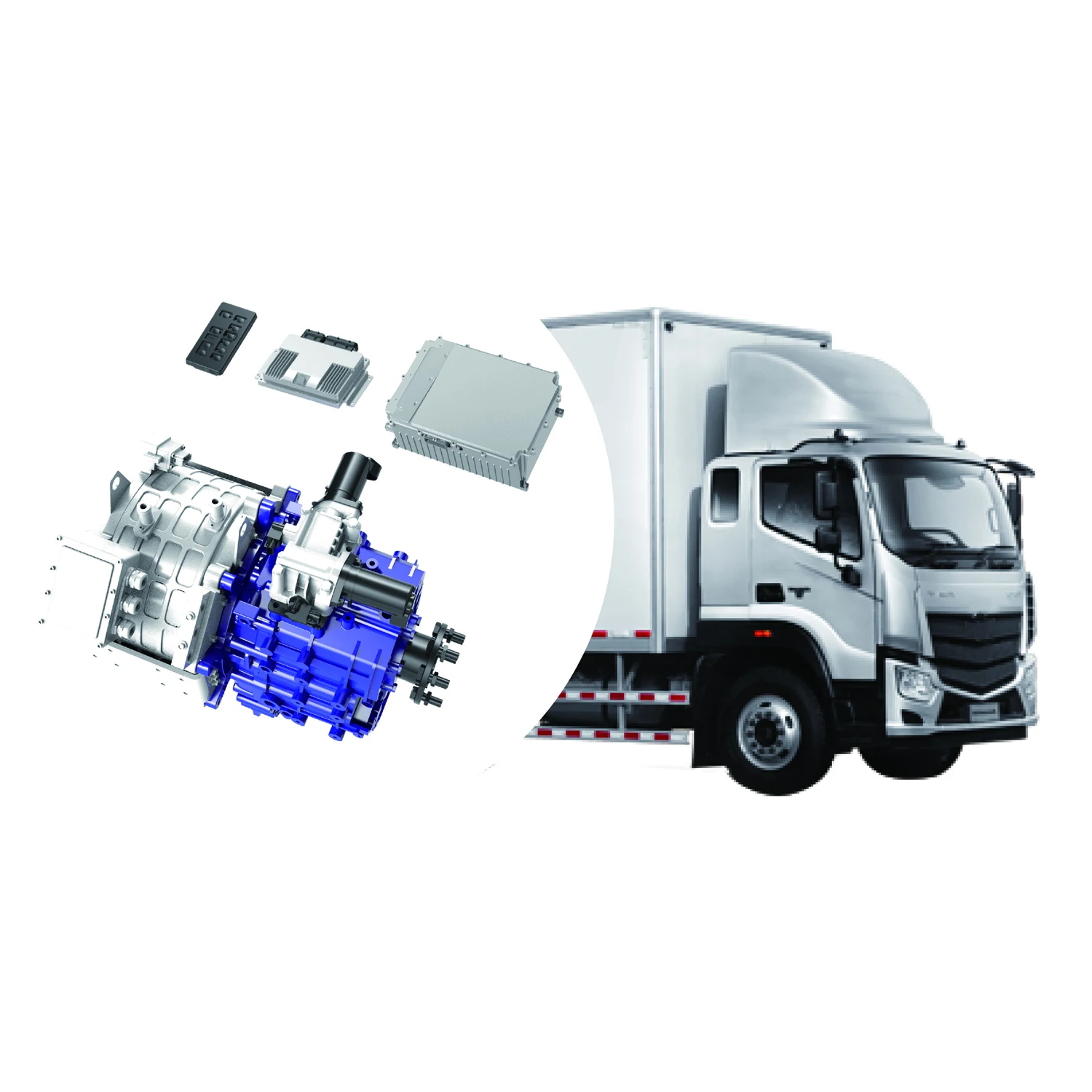

Suitable Vehicle: 14-20 Tons Electric Medium Trucks/Logistics Vehicles/Sanitation Vehicles/ Special Truck

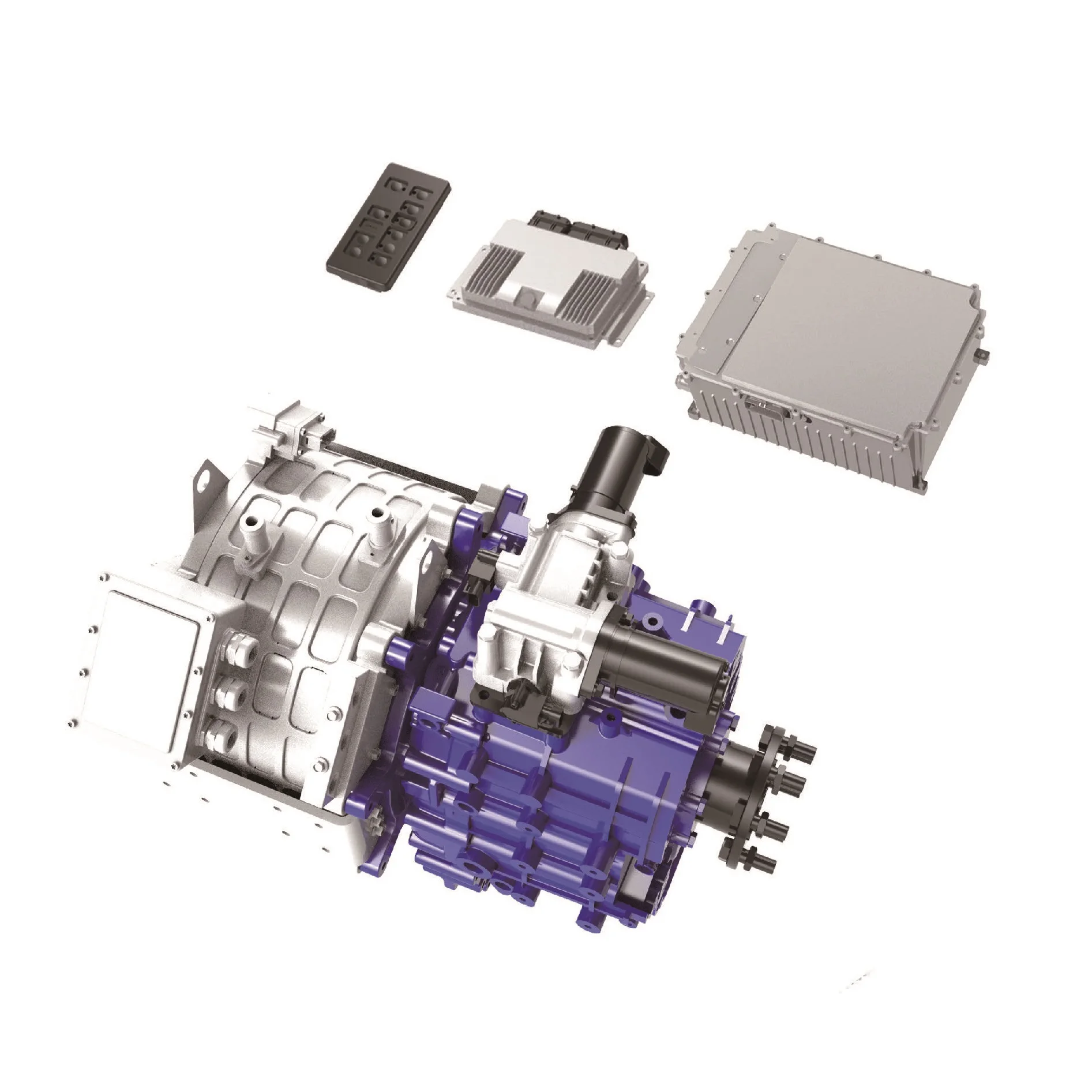

Motor+Control System+Transmission
Specification:
| Electric Drive System | 14-20 Tons Pure Electric Drive System (EMT) | ||
| Suitable Vehicle | Medium Trucks/Logistics Vehicles/Sanitation Vehicles/ Special Truck | ||
| Motor Specification | Rated/Peak Power (kW) | 115 | 150 |
| Rated/Peak Torque (N.m) | 550 | 1000 | |
| Max Rotation(rpm) | 4500 | ||
| Transmission parameters | Max Input Torque(N.m) | 1000 | |
| Speed Ratio | 5.86/3.21/1.7/1 | ||
| Power Assembly System Specification | Total Weight: (kg) |
≤420 |
|
| Size: L×W×H(mm) | 794x520x537 | ||
| Max Output Torque (N.m) | 5860 | ||
| Vehicle power performance | Max Speed (km/h) | >=90 | |
| 0-50km/h accelerate time (S) | <=25 | ||
| Climbing Slope (%) | >=25 | ||
