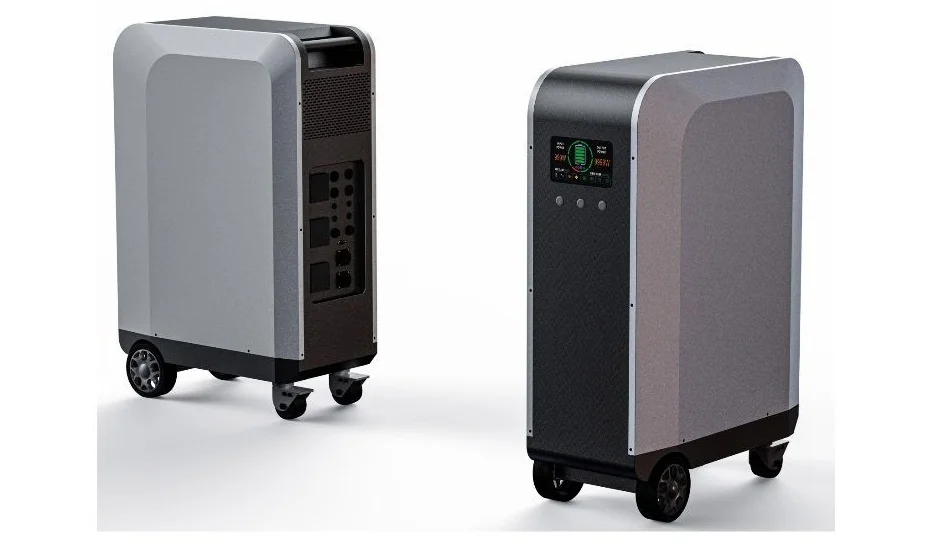

10.24kWh EV Charge Station New Energy Vehicle Charge StationSpecification:1. Battery: 12V 800AH 10.24kWh LiFePO4 Battery Pack
2. Pure Sine Wave Inverter
3. Output Power: Rated 10kW, Peak 15kW
4. Output Voltage: 220V/50Hz or 110V/60Hz
5. Grid Charge: AC85-300V/2800W, 3 hours charge 80%, 3.5 hours charge full
6. Solar Input: DC60-100V, max charge power 2400W (MPPT)
7. Output: Dual DC12V Output, max power 100W
8. Dual PD Output, max power 65W
9. 4 x USB-A Output, max power 18W
10. Ultra-wide Voltage Input, automatic voltage-regulated output, and zero-second online switching.
11. Dimension and Weight: 80x34x65cm, 100kgs
Parts include:
1. The Main EV Charge Power System
2. AC Input Cable
3. Solar Input Cable (with XT60 Plug)
4. Car AC Charge Cable
Highlights at a glance
High Efficiency Charging: Rapidly charges electric vehicles for convenient use.
European Standard Interface: Ensures compatibility with European markets and vehicles.
Portable Design: Easy to carry and use anywhere, even in emergencies.

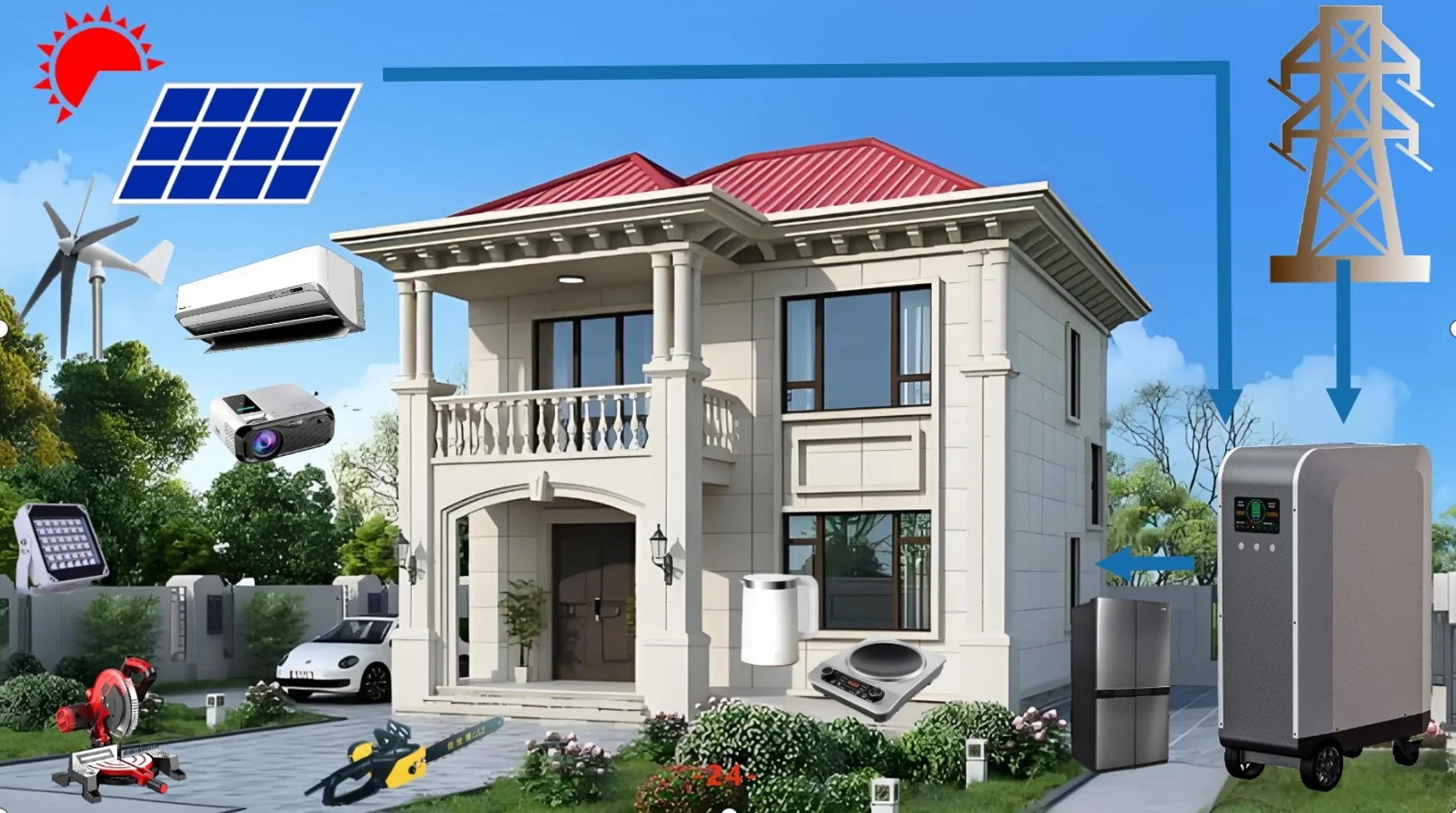

Emergency Energy Storage: Provides backup power for vehicles during outages.
AC220V Input: Compatible with standard household power for plug-and-play setup.
