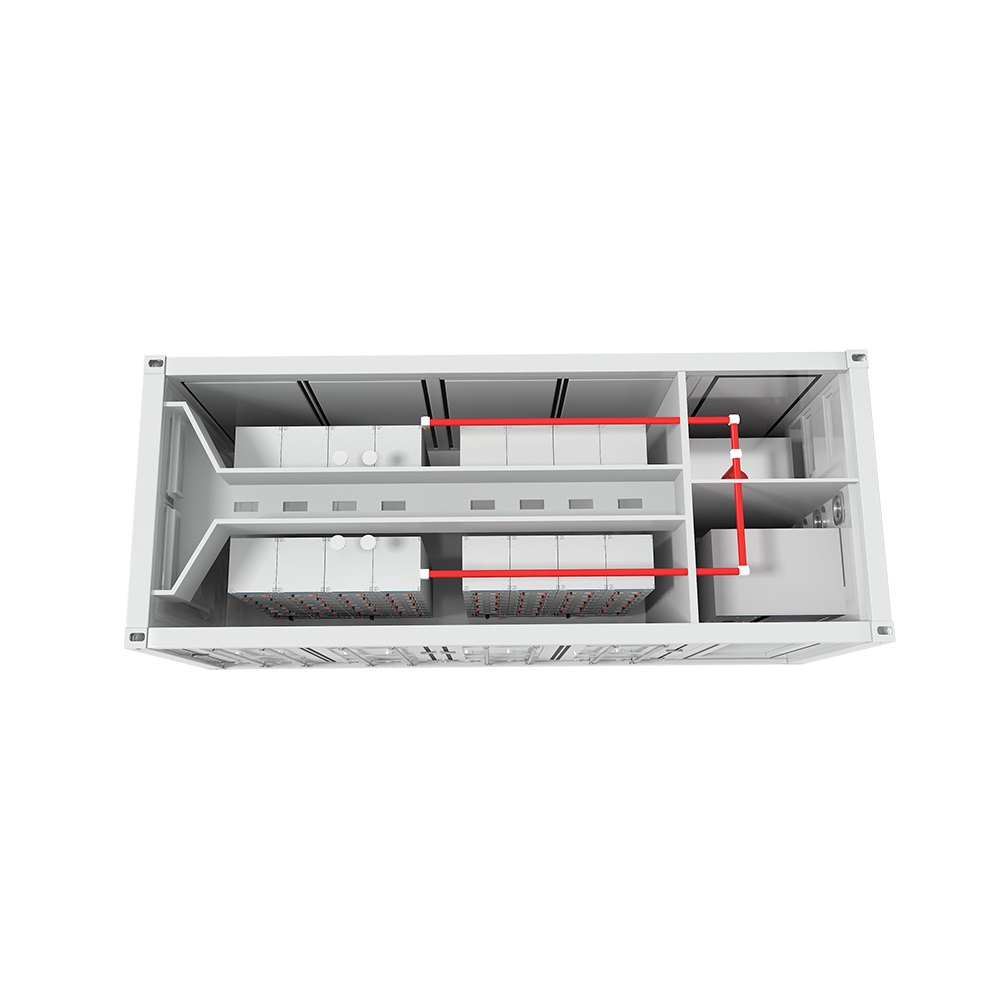

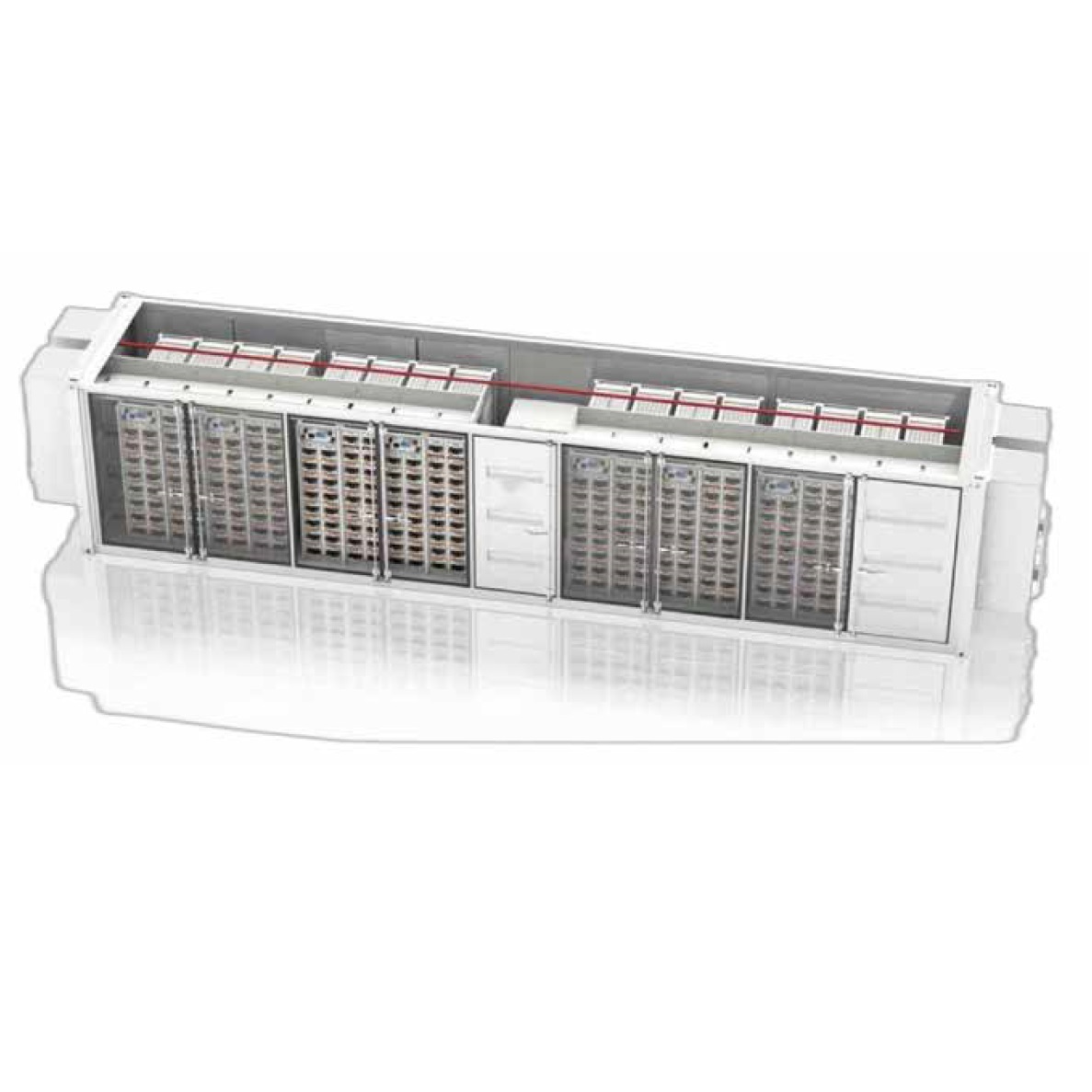

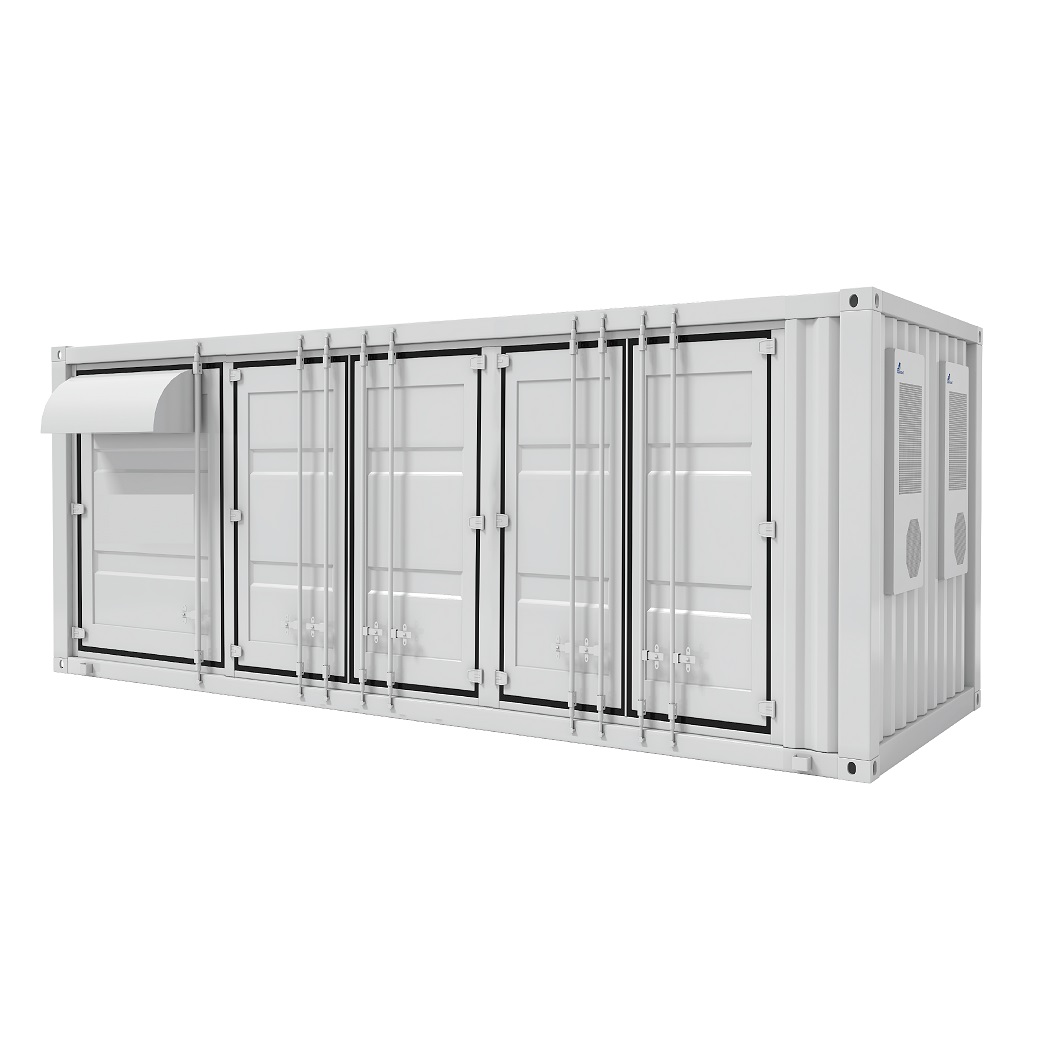

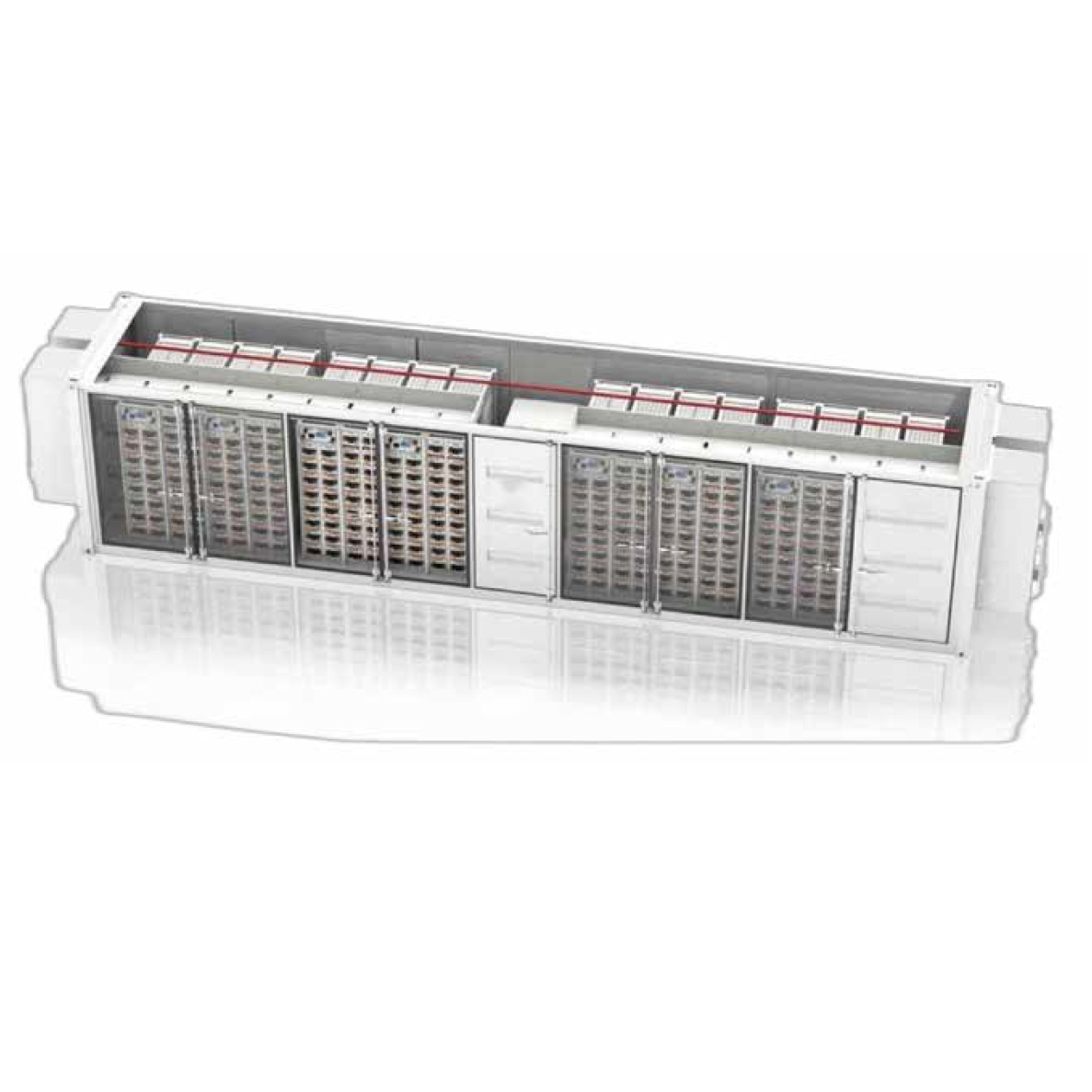

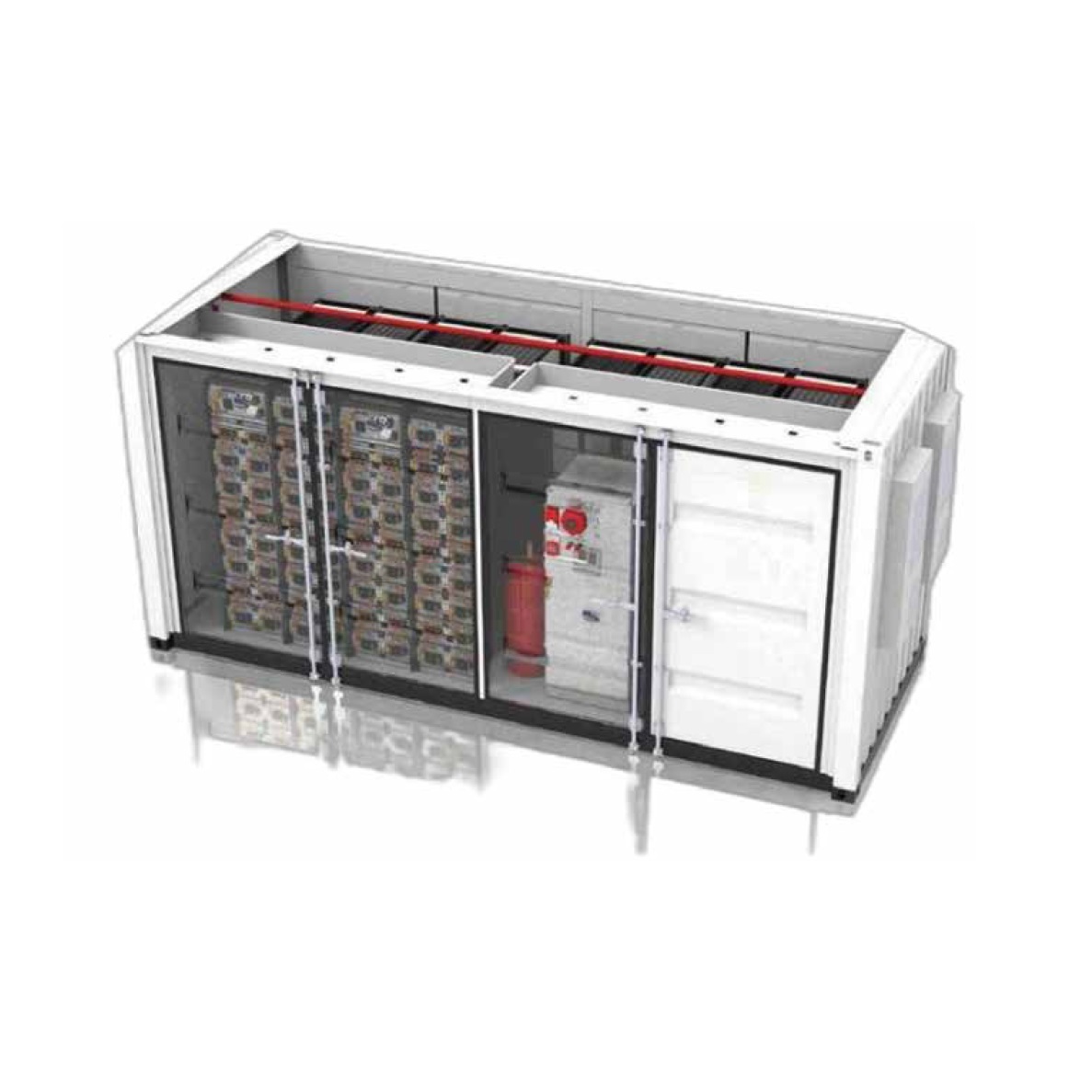

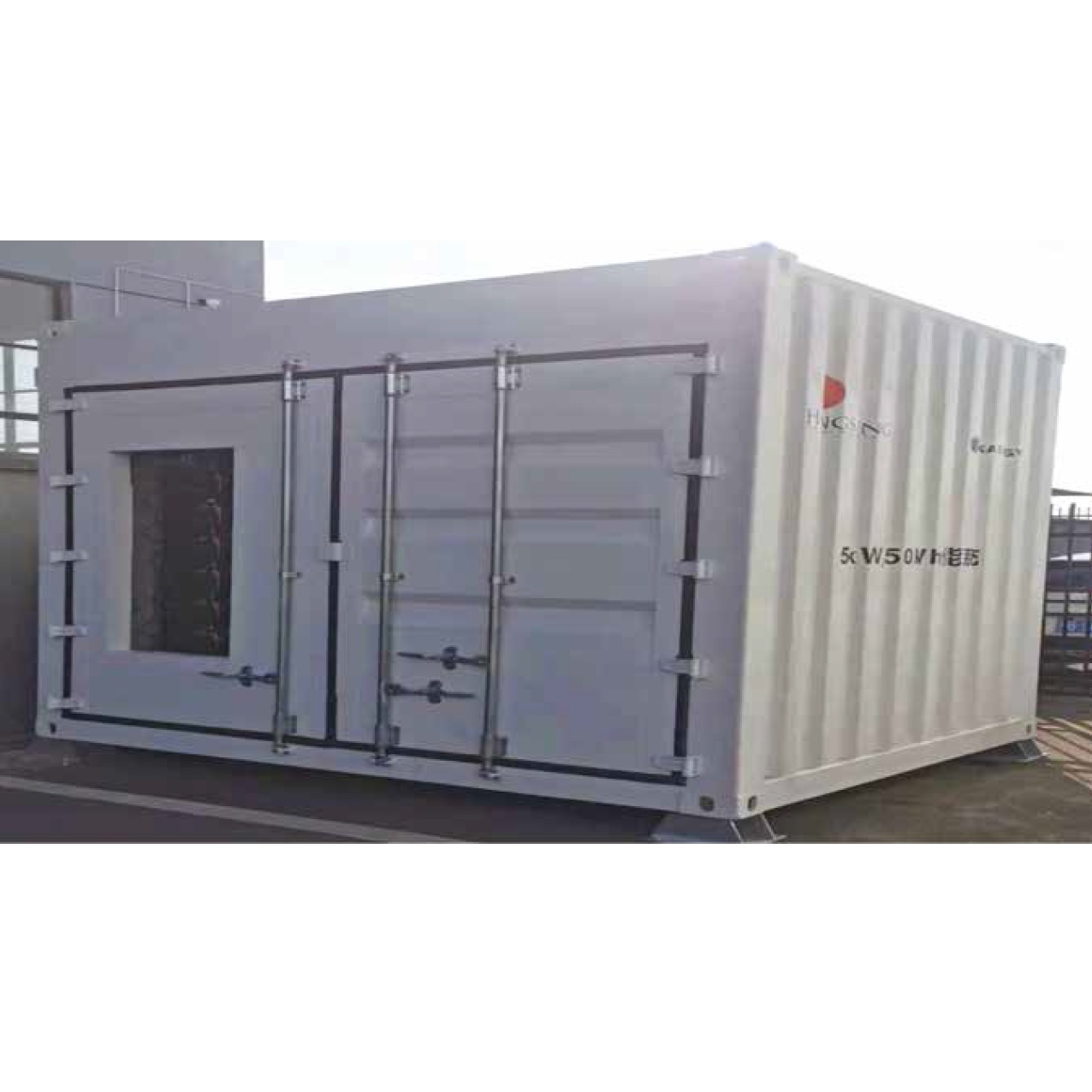

10 Feet Container 300-645kWh Air Cooling Power Container Industrial Energy Storage System LiFePO4 Lithium Battery Modular design Container Power Storage
We provide high security and high reliability C&I Energy storage system solution, one-stop integrated battery pack, PCS Control system, fire control system, air conditioning system, monitoring system, Coordinate the efficient operation of each component through control system, absorption and Release energy.
Characteristics
Fearures & Advantages:
1. Modular design: Easy for transportation, Easy for installation, Easy for maintenance;
2. Flexible applications: PCS offers a variety of models, Configurable battery capacity, optional application scenarios;
3. Specialties: Virtual synchronous motor technology is more suitable for microgrid applications, Fast response speed, immediately support weak power grid, Supporting multiple off-grid drooping parallel
Products Specifications:
Technical parameters of battery cells
|
Item |
Data |
Remark |
|
Battery type |
LiFePO4 |
|
|
Cell Model |
3.2V /280Ah |
|
|
*Cell Thickness (mm) |
|
300kgf pressure state |
|
*Thickness Tolerance (mm) |
(-0.5,+1.50) |
300kgf pressure state |
|
*Thickness Tolerance (mm) |
No pressure state |
|
|
Cell Width (mm) |
|
|
|
*Width Tolerance (mm) |
±0.5 |
|
|
*Height Tolerance (mm) |
±0.6 |
|
|
Cell Weight (kg) |
5.4±0.16 |
|
|
Density (Wh/kg) |
166 |
|
|
Weight Tolerance (kg) |
±0.16 |
|
|
*Voltage Range (V) |
2.0-3.65 |
limit range, T≤0℃ |
|
2.5-3.65 |
limit range, T＞0℃ |
|
|
2.8-3.60 |
recommended range of use |
|
|
*DC internal resistance (mΩ) |
≤1.0 |
@10s，50%SOC |
|
Rated charging energy (Wh) |
896 |
|
|
Rated discharge energy (Wh) |
896 |
|
|
Rated charging capacity (Ah) |
280 |
|
|
Rated discharge capacity (Ah) |
280 |
|
|
*Max charging current (A) |
420A@10s (SOC≤70%) |
|
|
*Max discharge current (A) |
560A@30s (SOC≥80%) |
|
|
*25℃,0.5C standard charge and discharge cycle life |
6000 times |
300±20kgf initial preload, remaining capacity ≥ 224Ah |
|
Charging working temperature range |
0~55℃ |
|
|
Discharge working temperature range |
-30~55℃ |
|
|
Battery storage temperature range (℃) |
-30℃~60℃ |
|
|
Humidity range |
≤95%RH non-condensing |
|
|
Application altitude |
≤4000m |
|
|
*Battery core coating insulation requirement |
≥100MΩ (@DC500V) |
|
|
Item |
Data |
|
Cell Model |
Energy Type Cell |
|
Component |
16 pcs of Cells, BMS |
|
Combination |
16S1P |
|
Rated Capacity |
280Ah |
|
Rated Voltage |
51.2V |
|
Weight (kg) |
≈108kg (According to actual weight) |
|
Size (Width*Length*Height, mm) |
—— |
|
Working voltage range |
40V～58.4V |
|
Max continuous discharge power (kW) |
7.168kW (0.5C) |
|
Terminal output |
Connector |
|
Communication |
CAN |
|
Max continuous discharge current |
140A (0.5C) |
|
Item |
Data |
Remark |
|
Cell Capacity |
280Ah |
Standard charge (0.5C charge/discharge) |
|
Combination |
1P 240S |
N.A. |
|
Rated Voltage |
768V |
Standard charge/discharge |
|
Rated Capacity |
215.04kWh |
Standard charge/discharge |
|
Weight |
—— |
N.A. |
|
Discharge cut off voltage |
600V or the voltage of any battery cell in the battery cluster reaches 2.5V |
T＞0℃ |
|
Charge cut off voltage |
876V or the voltage of any battery cell in the battery cluster reaches 3.65V |
N.A. |
|
Rated charging/discharge current |
140A |
(25±2)℃ |
|
Working Temperature Range |
-20～50℃ (Discharge) 0～50℃ (Charge) |
N.A. |
|
Storage temperature range |
-20～50℃ |
N.A. |
|
Communication |
CAN |
N.A. |
|
Delivery SOC (%) |
30 |
(25±2)℃ |
|
Product life guarantee operating conditions |
(25±5)℃ |
N.A. |
|
Max continuous discharge current |
140A（0.5C） |
|
|
No. |
Item |
Data |
Remark |
|
1 |
Charge Cut off |
3.65V |
When battery voltage reaches 3.65V, the charging is terminated |
|
2 |
Level 1 overcharge protection |
3.75V |
When battery voltage reaches 3.75V, charging will be terminated forcibly |
|
3 |
Level 2 overcharge protection |
3.90V |
When battery voltage reaches 3.90V, the charge will be terminated forcibly, and it should be locked until the technician solves the problem. |
|
4 |
Discharge Cut off |
2.50 V（T＞0℃） |
When battery reaches the limit voltage, the discharge is terminated |
|
2.00 V（T≤0℃） |
|||
|
5 |
Level 1 overdischarge protection |
2.65 V（T＞0℃） |
When battery reaches the limit voltage, the discharge will be terminated forcibly. |
|
2.20 V（T≤0℃） |
|||
|
6 |
Level 2 overdischarge protection |
2.50V（T＞0℃） |
When battery reaches the limit voltage, the discharge will be terminated forcibly, and it will be recharged to 3.25V with 10A in time, and the BMS should be locked until the technician solves the problem. |
|
2.0V（T≤0℃） |
|||
|
7 |
Short-circuit protection |
Short-circuit is not allowed |
When a short-circuit occurs, the battery is disconnected by the short-circuit protection device. |
|
8 |
Over-current protection |
Check specification |
The battery management system controls the charging and discharging current to meet the specifications. |
|
9 |
Overheating protection |
Check specification |
When the temperature exceeds the technical agreement, the charging/discharging will be terminated. |
|
10 |
Long charging time protection |
Charging time is within 8 hours |
If the charging time is longer than 8 hours, the charging will be terminated |
|
Model |
PCS-300 (excluding isolation transformer) |
|
|
DC Parameter |
Voltage Range |
DC600V～DC920V (or wider range) |
|
Max DC power |
300kW (or wider range) |
|
|
Max input current |
500A (or wider range) |
|
|
AC on-grid parameters |
Output power system |
3W+PE |
|
Rated power |
300kW (or wider range) |
|
|
Rated voltage |
AC 400V |
|
|
Current Currrend |
433A (or wider range) |
|
|
Voltage Range |
-15%～+10% (or wider range) |
|
|
Rated frequency |
50Hz |
|
|
Rated frequency |
1 |
|
|
Maximum total harmonic distortion |
<3% (At rated power) |
|
|
Environment |
Working Temperature |
-20℃～55℃ (or wider range) |
|
Storage Temperature |
-40℃～70℃ (without battery) |
|
|
Relative humidity |
0％RH～95％RH, non-condensing |
|
|
Working altitude |
At 45℃, 2000m; 2000m～4000m derating use |
|
|
Noise |
＜75dB |
|
|
Others |
Battery management communication interface |
CAN/RS485 (CAN/Modbus) |
|
Dispatch communication interface |
Network port (IEC61850/IEC104/Modbus) |
|
|
Protection grade |
IP20 |
|
|
Cooling |
Air Cooling |
|
|
Max efficiency |
0.98 |
|
|
Size W*D*H |
—— |
|
|
Weight |
—— |
|
